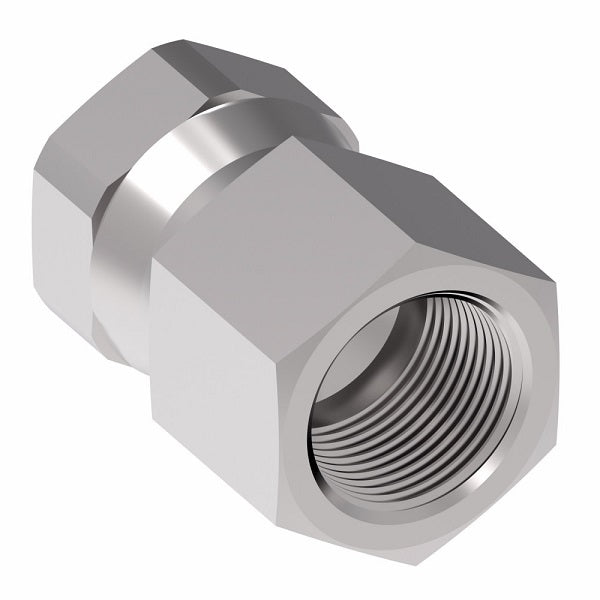

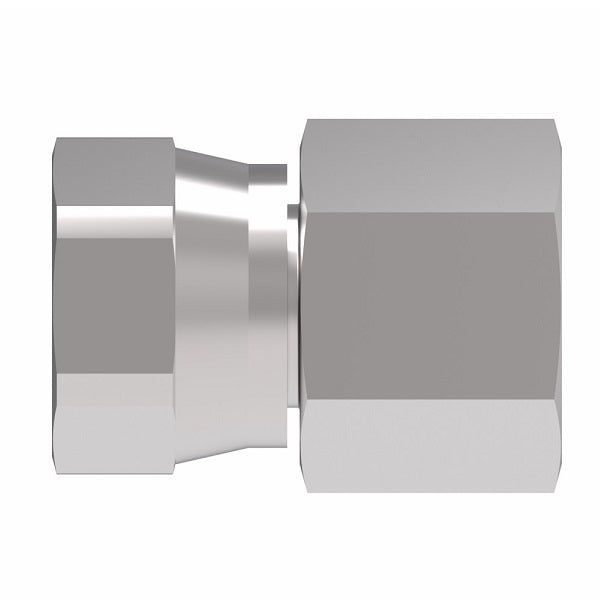

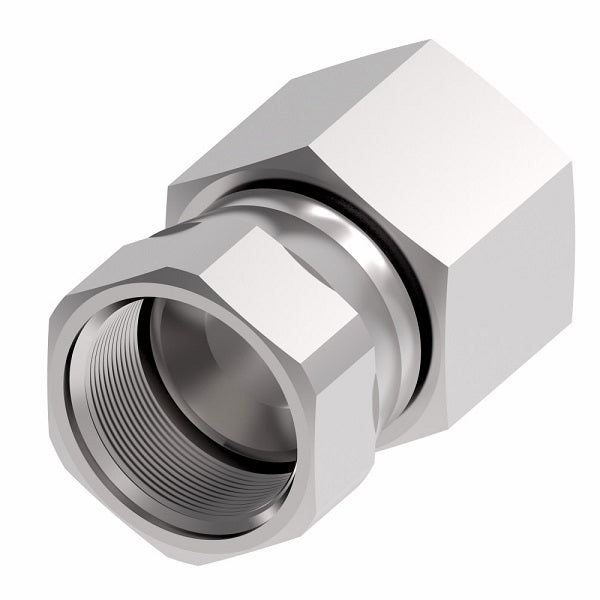

2242-12-14S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -12 Female NPTF x -14 Female JIC Swivel | Steel
2242-12-14S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -12 Female NPTF x -14 Female JIC Swivel | Steel
2242-12-14S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -12 Female NPTF x -14 Female JIC Swivel | Steel
Danfoss/Eaton

2242-12-14S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -12 Female NPTF x -14 Female JIC Swivel | Steel

Sale price$51.04

Aeroquip® by Danfoss
Internal Pipe/37° JIC Flare Swivel Adapter
Female NPTF x Female JIC Swivel
Straight

(Formerly Eaton Aeroquip)

In stock

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Female NPTF
  • 7/8in Female JIC
Material(s):
  • Steel
Specifications:
  • Ref. SAE 070603
Part Number
Steel 		Tube O.D. Thread P Thread T A
2242-2-4S 0.25" 1/8-27 7/16-20 0.85"
2242-2-5S 0.31" 1/8-27 1/2-20 0.87"
2242-4-4S 0.25" 1/4-18 7/16-20 1.11"
2242-4-5S 0.31" 1/4-18 1/2-20 1.10"
2242-4-6S 0.38" 1/4-18 9/16-18 1.18"
2242-6-6S 0.38" 3/8-18 9/16-18 1.16"
2242-6-8S 0.50" 3/8-18 3/4-16 1.20"
2242-8-6S 0.38" 1/2-14 9/16-18 1.42"
2242-8-8S 0.50" 1/2-14 3/4-16 1.48"
2242-8-10S 0.63" 1/2-14 7/8-14 1.47"
2242-8-12S 0.75" 1/2-14 1-1/16-12 1.45"
2242-12-12S 0.75" 3/4-14 1-1/16-12 1.49"
2242-12-14S 0.88" 3/4-14 1-3/16-12 1.55"
2242-16-16S 1.00" 1-11-1/2 1-5/16-12 1.85"
2242-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 2.02"
