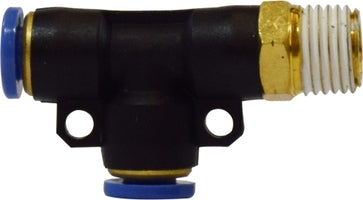

20174C (20-174C) by Midland | Push-In Fitting | Swivel Male | 1/2" Tube OD x 1/4" Male NPT | Tee | Composite Body
Buy more, save moreDiscounts applied in cart/checkout.
| Fluid Admitted: | Air | Working Pressure Range: | 0-150 PSI (10 BAR) |
|---|---|---|---|
| Min. Burst Pressure: | 340 PSI (23 BAR) | Working Temperature Range: | 0°F ~160°F |
| Tolerance: | +/- .02 on all dimensions. | ||
| Materials of Construcion | ||
|---|---|---|
| 1 | Body | Composite Polyacetal (Hemopolymer, Copolymer) |
| 2 | Body | Brass |
| 3 | Tube Release | Acetal Resin |
| 4 | Retainer | Brass |
| 5 | Gripper Ring | Stainless Steel |
| 6 | Spacer | Brass |
| 7 | O-Ring | NBR 70 |
| 8 | Threads | Brass with White Sealant |
| Crossover Series: |
|---|
| PQ71PS |
| Part Number | Tube O.D. x Male NPT | Approx. Weight (Lbs.) |
|---|---|---|
| 20160C* (20-160C) |
1/8" x 1/8" | 0.03 |
| 20833C* (20-833C) |
1/8" x 1/4" | 0.03 |
| 20835C* (20-835C) |
5/32" x 10-32 | 0.03 |
| 20162C (20-162C) |
1/4" x 1/8" | 0.04 |
| 20163C (20-163C) |
1/4" x 1/4" | 0.04 |
| 20834C* (20-834C) |
1/4" x 10-32 | 0.04 |
| 20099C (20-099C) |
3/8" X 1/8" | 0.06 |
| 20100C (20-100C) |
3/8" x 1/4" | 0.08 |
| 20165C (20-165C) |
3/8" x 3/8" | 0.10 |
| 20181C (20-181C) |
3/8" x 1/2" | 0.12 |
| 20174C (20-174C) |
1/2" x 1/4" | 0.12 |
| 20166C (20-166C) |
1/2" x 3/8" | 0.14 |
| 20167C (20-167C) |
1/2" x 1/2" | 0.16 |
* Global Thread
Dimension Data can change without notice.
Additional Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
