20160C by Midland | Push-In Fitting | Swivel Run | 1/8" Tube OD x 1/8" Male NPT | Tee | Composite Body
Midland Industries

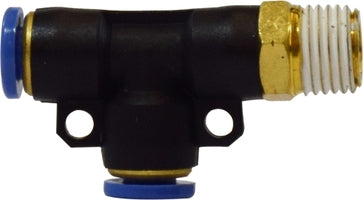

Brass Fitting - Composite Body Push-in Fitting - Swivel Male Run Tee
Note: Not a live swivel - swivels for installation only.
The latest generation of composite material is used in the body construction in addition to brass on threaded components, and stainless steel on the tube gripper.
NPTs: Works with inch or metric threads. (can be assembled with female threads produced to the following standards: Tapered NPTF, Parrallel (BSPP, BSP, ISO 7), Tapered (BSPT, PT, ISO 7, ISO 228)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.28 |
| 40–79 | $10.20 |
| 80+ | $9.00 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
| Fluid Admitted: | Air | Working Pressure Range: | 0-150 PSI (10 BAR) |
|---|---|---|---|
| Min. Burst Pressure: | 340 PSI (23 BAR) | Working Temperature Range: | 0°F ~160°F |
| Tolerance: | +/- .02 on all dimensions. | ||
| Materials of Construcion | ||
|---|---|---|
| 1 | Body | Composite Polyacetal (Hemopolymer, Copolymer) |
| 2 | Body | Brass |
| 3 | Tube Release | Acetal Resin |
| 4 | Retainer | Brass |
| 5 | Gripper Ring | Stainless Steel |
| 6 | Spacer | Brass |
| 7 | O-Ring | NBR 70 |
| 8 | Threads | Brass with White Sealant |
| Crossover Series: |
|---|
| PQ71PS |
| Part Number | Tube O.D. x Male NPT | Approx. Weight (Lbs.) |
|---|---|---|
| 20160C* (20-160C) |
1/8" x 1/8" | 0.03 |
| 20833C* (20-833C) |
1/8" x 1/4" | 0.03 |
| 20835C* (20-835C) |
5/32" x 10-32 | 0.03 |
| 20162C (20-162C) |
1/4" x 1/8" | 0.04 |
| 20163C (20-163C) |
1/4" x 1/4" | 0.04 |
| 20834C* (20-834C) |
1/4" x 10-32 | 0.04 |
| 20099C (20-099C) |
3/8" X 1/8" | 0.06 |
| 20100C (20-100C) |
3/8" x 1/4" | 0.08 |
| 20165C (20-165C) |
3/8" x 3/8" | 0.10 |
| 20181C (20-181C) |
3/8" x 1/2" | 0.12 |
| 20174C (20-174C) |
1/2" x 1/4" | 0.12 |
| 20166C (20-166C) |
1/2" x 3/8" | 0.14 |
| 20167C (20-167C) |
1/2" x 1/2" | 0.16 |
* Global Thread
Dimension Data can change without notice.
