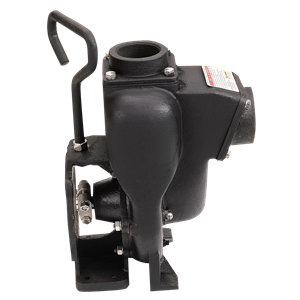

200POI by Banjo | 2" Cast Iron Pump Only | with 3/4" Shaft Sleeve

200POI by Banjo | 2" Cast Iron Pump Only | with 3/4" Shaft Sleeve

Sale price$661.68

Banjo
Self-Priming Centrifugal Pumps - 2" Cast Iron Pumps with Gas Engines, C-Flange Pumps, & Replacement Parts
Buy More, Save More!
Quantity Price Each
5–14 $621.98
15–29 $562.43
30+ $496.26
Discounts applied in cart/checkout.

Product Data:
Application: Fluids, Agriculture, Industrial
Features:
  • Cast iron construction for rugged dependable service
  • Stainless steel shaft sleeve to protect engine shaft
  • Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber
  • Replaceable inlet and outlet flanges
  • Dynamically balanced impeller
Notes:
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump
  • Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
  • DO NOT USE WITH FLAMMABLE LIQUIDS
Part Number Description Horsepower
2" Cast Iron Pumps with Gas Engines
200PI-3 2" Cast Iron Pump with 3.5 HP Briggs & Stratton® Engine 3.5 HP (Made to Order)
200PI6PRO 2" Cast Iron Pump with 6.5 HP Briggs & Stratton® Engine Pro Series 6.5 HP ---
200PIH-5 2" Cast Iron Pump with 5.5 HP Honda® Engine 5.5 HP ---
200PIH5E 2" Cast Iron Pump with 5.5 HP Honda® Engine with Electric Start 5.5 HP (Made to Order)
2" Cast Iron Pump Only
200POI 2"" Cast Iron Pump Only with 3/4"" Shaft Sleeve N/A
2" Cast Iron Bearing Pedestal
200PBI 2" Cast Iron Bearing Pedestal with 3/4" Straight Shaft* (Note:*3/4" straight shaft for long coupling to electric motors) N/A (Made to Order)
2" Cast Iron C-Flange Pumps
200POICF5/8 2" Cast Iron C-Flange Pump with 5.8" Shaft Sleeve N/A (Made to Order)
200POICF7/8 2" Cast Iron C-Flange Pump with 7.8" Shaft Sleeve N/A (Made to Order)

* Recommendation for 5/8" Shaft: 56C Frame Size, 3 HP, 3450 RPM, & 5" Max Impeller for close coupling to electric motors. 7/8" Shaft: 145TC Frame Size, 3 HP, 3450 RPM, & 5" Max Impeller for close coupling to electric motors.

Replacement Parts for 2" Cast Iron Pumps
Item Part Number Description Quantity Required
1 17000 Threaded Outlet Flange 1
1 M17000 2" Manifold Outlet Flange 1
2 17002 Threaded Inlet Flange 1
2 M17002 2" Manifold Inlet Flange 1
3 17004 Adapter for Gas Engine 1
3 17046 C-Flange Adapter 1
4 17005 5/8" Sleeve Drive for Electric Motor 1
4 17006* 3/4" Sleeve Drive 1
4 17007 7/8" Sleeve Drive for Electric Motor 1
5 17008* 5" Impeller 1
5 17008-4.1 4.1" Trimmed Impeller 1
6 17010 1/2" Hex Nut 1
7 17011 Wear Plate 1
8 17013 EPDM Gasket 1
9 17016 Check Valve Assembly 1
10 17018 Gasket Adapter 1
11 15022 Handle 1
12 17023 5/8" Clamp for 3/4" Shaft Assembly (Old Style) 1
12 17123 5/8" Clamp for 3/4" Shaft Assembly (Keyed) 1
12 17024 7/8" Clamp for Shaft Assembly 1
13 17026 Pump Housing 1
14 V10118 5/16" Lock Washer 18
15 V10119 5/16" - 18 SS Hex Nut 6
Not Shown 12882R Housing 1
Not Shown 12883R Bearing Pedestal with 3/4" Shaft Only 1
Not Shown 12884 Internal Retaining Clip for Pedestal 1
Not Shown 12883B Bearings 2
16 12882A Complete Pedestal Assembly 1
17 17040 5.16"-24 x 1.00" Cap Screw 4
18 17028 EPDM Seal Assembly 1
18 17035* FKM (viton type) Seal Assembly 1
18 17035SD Severe Duty Seal 1
19 17042 Stud 6
20 17019 5/16"-18 x 3/4" Cap Screw 8
21 17009B 5/8" Impeller Nut 1
22 17130 5/16-18 x 1.00" FHSCS, 18-8 SS 2
23 12777 1/2" Plug 1
24 UV15163 O-Ring 1
Not Shown 17033 Z Rails (Pair) 1
Not Shown 17100 Repair Kit (Consists of items 4*, 5*, 7,10,18*) 1

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
