| Application: |
Fluids, Agriculture, Industrial |
| Features: |
- Cast iron construction for rugged dependable service
- Stainless steel shaft sleeve to protect engine shaft
- Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber
- Replaceable inlet and outlet flanges
- Dynamically balanced impeller
|
| Notes: |
- CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump
- Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
- DO NOT USE WITH FLAMMABLE LIQUIDS
|
| Part Number |
Description |
Horsepower |
|
| 2" Cast Iron Pumps with Gas Engines |
| 200PI-3 |
2" Cast Iron Pump with 3.5 HP Briggs & Stratton® Engine |
3.5 HP |
(Made to Order) |
| 200PI6PRO |
2" Cast Iron Pump with 6.5 HP Briggs & Stratton® Engine Pro Series |
6.5 HP |
--- |
| 200PIH-5 |
2" Cast Iron Pump with 5.5 HP Honda® Engine |
5.5 HP |
--- |
| 200PIH5E |
2" Cast Iron Pump with 5.5 HP Honda® Engine with Electric Start |
5.5 HP |
(Made to Order) |

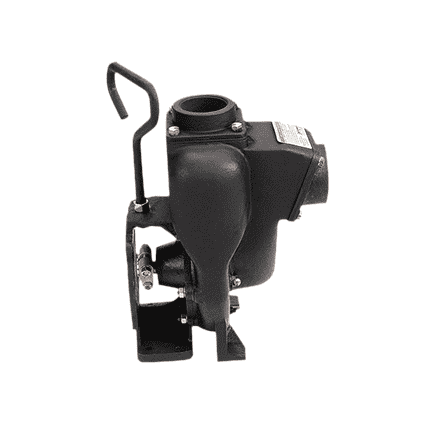

| 2" Cast Iron Pump Only |
| 200POI |
2"" Cast Iron Pump Only with 3/4"" Shaft Sleeve |
N/A |

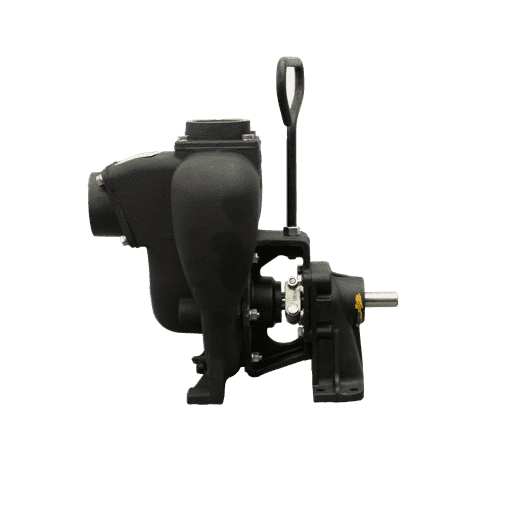

| 2" Cast Iron Bearing Pedestal |
| 200PBI |
2" Cast Iron Bearing Pedestal with 3/4" Straight Shaft* (Note:*3/4" straight shaft for long coupling to electric motors) |
N/A |
(Made to Order) |
| 2" Cast Iron C-Flange Pumps |
| 200POICF5/8 |
2" Cast Iron C-Flange Pump with 5.8" Shaft Sleeve |
N/A |
(Made to Order) |
| 200POICF7/8 |
2" Cast Iron C-Flange Pump with 7.8" Shaft Sleeve |
N/A |
(Made to Order) |
* Recommendation for 5/8" Shaft: 56C Frame Size, 3 HP, 3450 RPM, & 5" Max Impeller for close coupling to electric motors. 7/8" Shaft: 145TC Frame Size, 3 HP, 3450 RPM, & 5" Max Impeller for close coupling to electric motors.
 |
| Replacement Parts for 2" Cast Iron Pumps |
| Item |
Part Number |
Description |
Quantity Required |
| 1 |
17000 |
Threaded Outlet Flange |
1 |
| 1 |
M17000 |
2" Manifold Outlet Flange |
1 |
| 2 |
17002 |
Threaded Inlet Flange |
1 |
| 2 |
M17002 |
2" Manifold Inlet Flange |
1 |
| 3 |
17004 |
Adapter for Gas Engine |
1 |
| 3 |
17046 |
C-Flange Adapter |
1 |
| 4 |
17005 |
5/8" Sleeve Drive for Electric Motor |
1 |
| 4 |
17006* |
3/4" Sleeve Drive |
1 |
| 4 |
17007 |
7/8" Sleeve Drive for Electric Motor |
1 |
| 5 |
17008* |
5" Impeller |
1 |
| 5 |
17008-4.1 |
4.1" Trimmed Impeller |
1 |
| 6 |
17010 |
1/2" Hex Nut |
1 |
| 7 |
17011 |
Wear Plate |
1 |
| 8 |
17013 |
EPDM Gasket |
1 |
| 9 |
17016 |
Check Valve Assembly |
1 |
| 10 |
17018 |
Gasket Adapter |
1 |
| 11 |
15022 |
Handle |
1 |
| 12 |
17023 |
5/8" Clamp for 3/4" Shaft Assembly (Old Style) |
1 |
| 12 |
17123 |
5/8" Clamp for 3/4" Shaft Assembly (Keyed) |
1 |
| 12 |
17024 |
7/8" Clamp for Shaft Assembly |
1 |
| 13 |
17026 |
Pump Housing |
1 |
| 14 |
V10118 |
5/16" Lock Washer |
18 |
| 15 |
V10119 |
5/16" - 18 SS Hex Nut |
6 |
| Not Shown |
12882R |
Housing |
1 |
| Not Shown |
12883R |
Bearing Pedestal with 3/4" Shaft Only |
1 |
| Not Shown |
12884 |
Internal Retaining Clip for Pedestal |
1 |
| Not Shown |
12883B |
Bearings |
2 |
| 16 |
12882A |
Complete Pedestal Assembly |
1 |
| 17 |
17040 |
5.16"-24 x 1.00" Cap Screw |
4 |
| 18 |
17028 |
EPDM Seal Assembly |
1 |
| 18 |
17035* |
FKM (viton type) Seal Assembly |
1 |
| 18 |
17035SD |
Severe Duty Seal |
1 |
| 19 |
17042 |
Stud |
6 |
| 20 |
17019 |
5/16"-18 x 3/4" Cap Screw |
8 |
| 21 |
17009B |
5/8" Impeller Nut |
1 |
| 22 |
17130 |
5/16-18 x 1.00" FHSCS, 18-8 SS |
2 |
| 23 |
12777 |
1/2" Plug |
1 |
| 24 |
UV15163 |
O-Ring |
1 |
| Not Shown |
17033 |
Z Rails (Pair) |
1 |
| Not Shown |
17100 |
Repair Kit (Consists of items 4*, 5*, 7,10,18*) |
1 |
