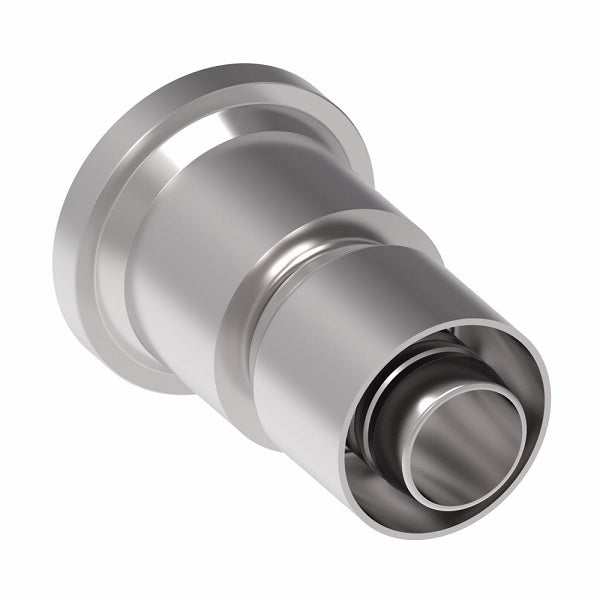

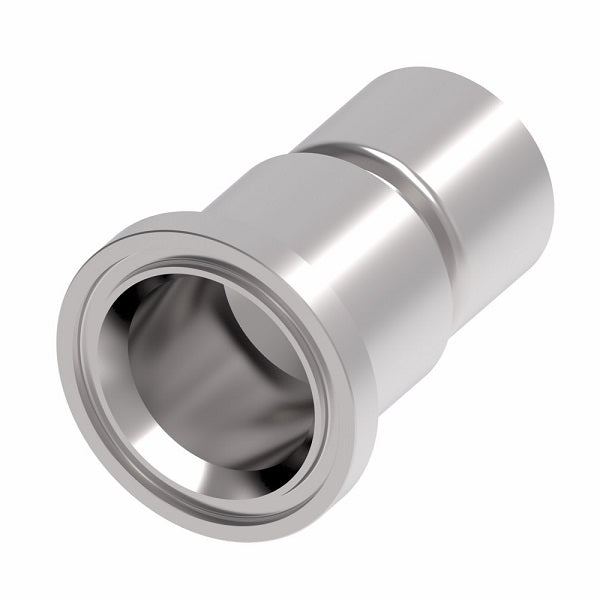

1G32FL20 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange (FL) Crimp Fitting | -32 Code 61 Split Flange x -20 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||
|---|---|---|---|---|---|
| Steel Part Number |
Thread Flange Head Dia. KØ |
Hose Size | A | D | EØ |
| 1G16FL16 | 1.75" | -16 | 3.49" | 2.14" | 0.82" |
| 1G16FL20 | 1.75" | -20 | 3.94" | 2.21" | 0.82" |
| 1G20FL20 | 2.00" | -20 | 4.24" | 2.51" | 1.05" |
| 1G24FL20 | 2.38" | -20 | 4.27" | 2.54" | 1.05" |
| 1G32FL20 | 2.81" | -20 | 4.27" | 2.54" | 1.01" |
| 1G24FL24 | 2.38" | -24 | 4.40" | 2.58" | 1.26" |
| 1G32FL24 | 2.81" | -24 | 4.40" | 2.58" | 1.19" |
| 1G24FL32 | 2.38" | -32 | 4.61" | 2.63" | 1.26" |
| 1G32FL32 | 2.81" | -32 | 4.61" | 2.63" | 1.74" |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
