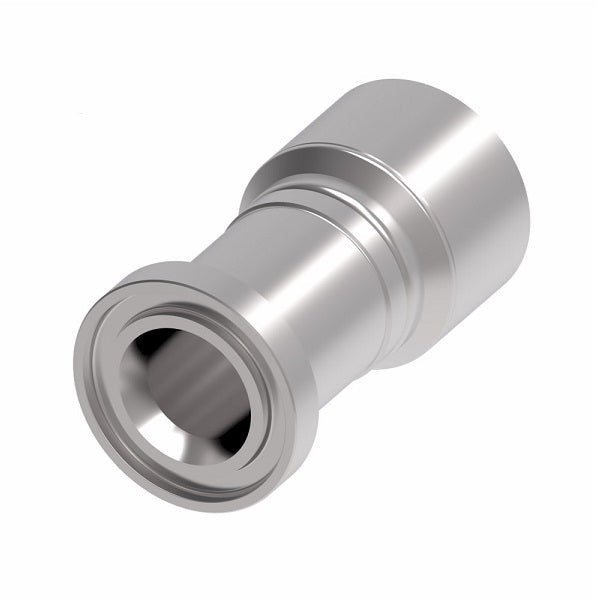

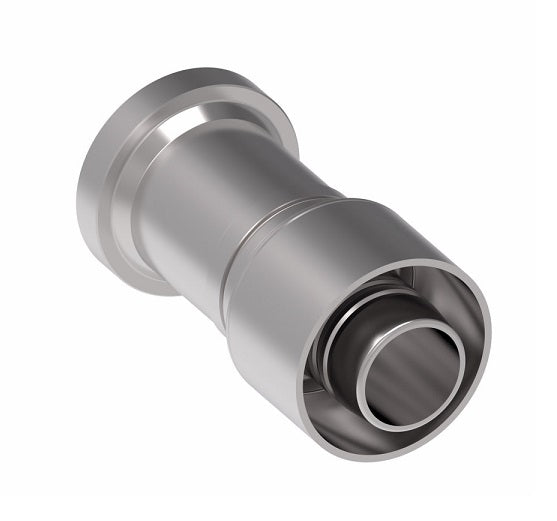

1G16FL16 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange (FL) Crimp Fitting | -16 Code 61 Split Flange x -16 Hose Barb | Steel
1G16FL16 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange (FL) Crimp Fitting | -16 Code 61 Split Flange x -16 Hose Barb | Steel
1G16FL16 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange (FL) Crimp Fitting | -16 Code 61 Split Flange x -16 Hose Barb | Steel

1G16FL16 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange (FL) Crimp Fitting | -16 Code 61 Split Flange x -16 Hose Barb | Steel

Sale price$52.02

Aeroquip® by Danfoss
1 & 2 Wire OTC SAE Code 61 Split Flange Crimp Fitting (FL) - Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $48.90
40–79 $44.22
80+ $39.02
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Code 61 Flange
  • 1in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Thread Flange
Head Dia.
K&Oslash		 Hose Size A D E&Oslash
1G16FL16 1.75" -16 3.49" 2.14" 0.82"
1G16FL20 1.75" -20 3.94" 2.21" 0.82"
1G20FL20 2.00" -20 4.24" 2.51" 1.05"
1G24FL20 2.38" -20 4.27" 2.54" 1.05"
1G32FL20 2.81" -20 4.27" 2.54" 1.01"
1G24FL24 2.38" -24 4.40" 2.58" 1.26"
1G32FL24 2.81" -24 4.40" 2.58" 1.19"
1G24FL32 2.38" -32 4.61" 2.63" 1.26"
1G32FL32 2.81" -32 4.61" 2.63" 1.74"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
