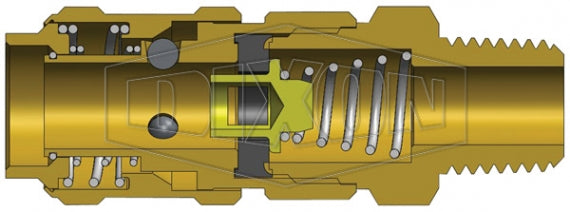

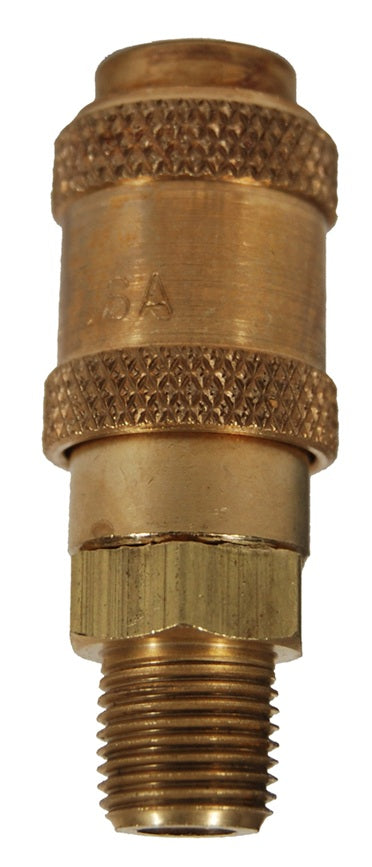

1AM1-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | A-Series | 1/8" Male NPTF x 1/8" Body Size | Compact Socket | Nitrile Seal | Brass
1AM1-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | A-Series | 1/8" Male NPTF x 1/8" Body Size | Compact Socket | Nitrile Seal | Brass

1AM1-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | A-Series | 1/8" Male NPTF x 1/8" Body Size | Compact Socket | Nitrile Seal | Brass

Sale price$27.56

Dixon Valve & Coupling
Pneumatic Coupling: A-Series Compact Coupler (Male Threads)

A-Series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired.
Buy More, Save More!
Quantity Price Each
10–39 $25.91
40–79 $23.43
80+ $20.67
Discounts applied in cart/checkout.

Product Data:

Series:
  • A-Series
Shape:

Straight

Ends Configuration:
  • 1/8in Female A-Series QD Interchange
  • 1/8in Male NPTF
Compatibility & Interchange:
  • Proprietary Astronautics
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Couplers are constructed of brass with steel valve as standard.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Safety Notes:
  • Pressure rating given at ambient temperature 70°F (21°C).
Additional Information:
A-Series | Compact Coupler (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Flow at
100 PSI		 Max. Working
Pressure		 Burst
Pressure
Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:		 Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:
1AM1-B Socket/Female 1/8" 1/8" - 27
Male NPTF		 Brass 1.75"
(44.5mm)		 0.64"
(16.3mm)		 1/2" 7 CFM 500 PSI
(35 bar)		 1000 PSI
(70 bar)		 15,500 PSI
(1,070 bar)		 18,500 PSI
(1,275 bar)
2AM1-B Socket/Female 1/4" 1/8" - 27
Male NPTF		 Brass 2.12"
(53.8mm)		 0.77"
(19.6mm)		 11/16" - 500 PSI
(35 bar)		 1000 PSI
(70 bar)		 6,500 PSI
(450 bar)		 8,000 PSI
(550 bar)
2AM2-B Socket/Female 1/4" 1/4" - 18
Male NPTF		 Brass 2.23"
(56.6mm)		 0.77"
(19.6mm)		 11/16" 25 CFM 500 PSI
(35 bar)		 1000 PSI
(70 bar)		 6,500 PSI
(450 bar)		 8,000 PSI
(550 bar)
A-Series | Compact Plug (Male Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Flow at
100 PSI		 Working Pressure and
Burst Pressure
when Connected to:
A1M1-B Plug/Male 1/8" 1/8" - 27
Male NPTF		 Brass 1.30"
(33.0mm)		 0.51"
(13.0mm)		 7/16" 7 CFM
  • Brass Coupler & Brass Plug:
    Max. Working: 500 PSI (35 bar)
    Burst: 15,500 PSI (1,070 bar)
    A2M2 Plug/Male 1/4" 1/4" - 18
    Male NPTF    		 Steel 1.59"
    (40.4mm)    		 0.65"
    (16.5mm)    		 9/16" -
    • Brass Coupler & Steel Plug:
      Max. Working: 1,000 PSI (70 bar)
      Burst: 8,000 PSI (550 bar)
      A2M2-B Plug/Male 1/4" 1/4" - 18
      Male NPTF      		 Brass 1.59"
      (40.4mm)      		 0.65"
      (16.5mm)      		 9/16" 25 CFM
      • Brass Coupler & Brass Plug:
        Max. Working: 500 PSI (35 bar)
        Burst: 6,500 PSI (450 bar)
