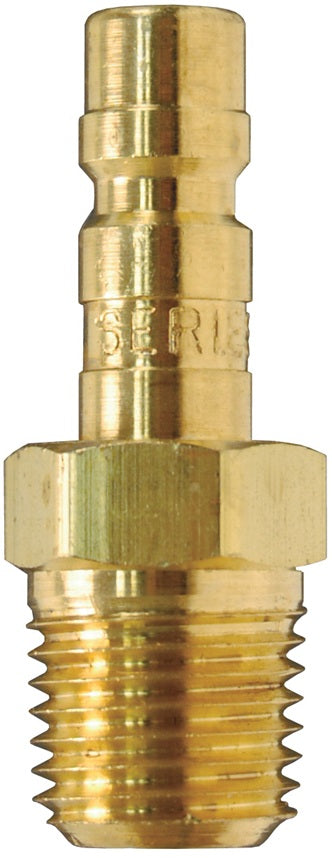

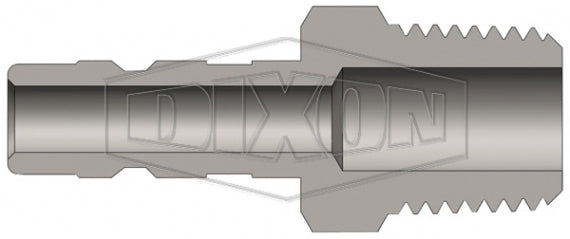

Pneumatic Coupling: A-Series Compact Plug (Male Threads)

A-Series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired.
Buy More, Save More!
Quantity Price Each
10–39 $10.48
40–79 $9.48
80+ $8.36
Discounts applied in cart/checkout.

Product Data:

Series:
  • A-Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male A-Series QD Interchange
  • 1/4in Male NPTF
Compatibility & Interchange:
  • Proprietary Astronautics
Construction:
  • Machined components are manufactured using solid bar stock.
Safety Notes:
  • Pressure rating given at ambient temperature 70°F (21°C).
Additional Information:
A-Series | Compact Plug (Male Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Flow at
100 PSI		 Working Pressure and
Burst Pressure
when Connected to:
A1M1-B Plug/Male 1/8" 1/8" - 27
Male NPTF		 Brass 1.30"
(33.0mm)		 0.51"
(13.0mm)		 7/16" 7 CFM
  • Brass Coupler & Brass Plug:
    Max. Working: 500 PSI (35 bar)
    Burst: 15,500 PSI (1,070 bar)
    A2M2 Plug/Male 1/4" 1/4" - 18
    Male NPTF    		 Steel 1.59"
    (40.4mm)    		 0.65"
    (16.5mm)    		 9/16" -
    • Brass Coupler & Steel Plug:
      Max. Working: 1,000 PSI (70 bar)
      Burst: 8,000 PSI (550 bar)
      A2M2-B Plug/Male 1/4" 1/4" - 18
      Male NPTF      		 Brass 1.59"
      (40.4mm)      		 0.65"
      (16.5mm)      		 9/16" 25 CFM
      • Brass Coupler & Brass Plug:
        Max. Working: 500 PSI (35 bar)
        Burst: 6,500 PSI (450 bar)
        A-Series | Compact Coupler (Male Threads)
        Part
        Number        		 Coupling
        Type        		 Body
        Size        		 Threads Material Length Max.
        OD        		 Hex Flow at
        100 PSI        		 Max. Working
        Pressure        		 Burst
        Pressure
        Brass Coupler
        & Brass Plug:        		 Brass Coupler
        & Steel Plug:        		 Brass Coupler
        & Brass Plug:        		 Brass Coupler
        & Steel Plug:
        1AM1-B Socket/Female 1/8" 1/8" - 27
        Male NPTF        		 Brass 1.75"
        (44.5mm)        		 0.64"
        (16.3mm)        		 1/2" 7 CFM 500 PSI
        (35 bar)        		 1000 PSI
        (70 bar)        		 15,500 PSI
        (1,070 bar)        		 18,500 PSI
        (1,275 bar)
        2AM1-B Socket/Female 1/4" 1/8" - 27
        Male NPTF        		 Brass 2.12"
        (53.8mm)        		 0.77"
        (19.6mm)        		 11/16" - 500 PSI
        (35 bar)        		 1000 PSI
        (70 bar)        		 6,500 PSI
        (450 bar)        		 8,000 PSI
        (550 bar)
        2AM2-B Socket/Female 1/4" 1/4" - 18
        Male NPTF        		 Brass 2.23"
        (56.6mm)        		 0.77"
        (19.6mm)        		 11/16" 25 CFM 500 PSI
        (35 bar)        		 1000 PSI
        (70 bar)        		 6,500 PSI
        (450 bar)        		 8,000 PSI
        (550 bar)
