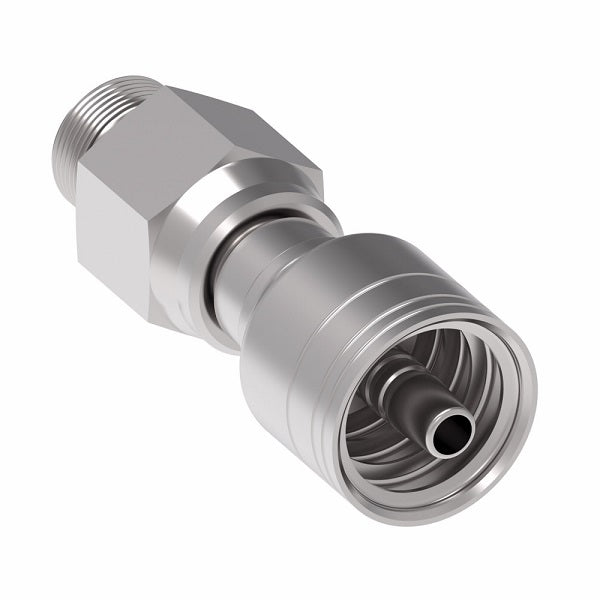

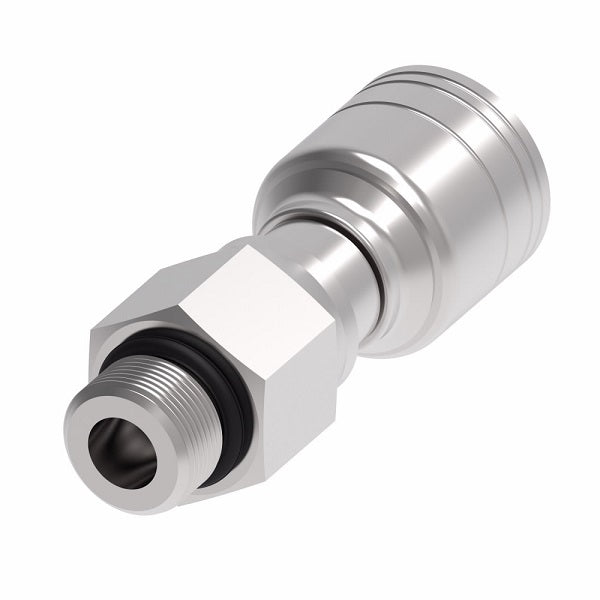

1AA4SB4 Aeroquip by Danfoss | Male ORB Straight Thread Swivel (With Sleeve) (SB) TCC Crimp Fitting | -04 Male O-Ring Boss x -04 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Note: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
| Part Number Steel | Part Number Zinc-Plated Nickel Steel | Thread | Hose Dash Size |
Length | Hose Cut-Off Factor | EØ | Hex |
|---|---|---|---|---|---|---|---|
| 1AA4SB4 | - | 7/16-20 | -04 | 2.52" | 1.59" | 0.17" | 3/4" |
| 1AA6SB6 | - | 9/16-18 | -06 | 2.72" | 1.73" | 0.26" | 7/8" |
| 1AA8SB10 | - | 3/4-16 | -10 | - | - | - | - |
| 1AA8SB6 | - | 3/4-16 | -08 | 2.66" | 1.67" | 0.26" | 7/8" |
| 1AA8SB8 | - | 3/4-16 | -08 | 3.01" | 1.84" | 0.38" | 1" |
| 1AA10SB12 | - | 7/8-14 | -12 | 3.43" | 2.24" | 0.61" | 1-7/16" |
| 1AA10SB8 | 1AA10SB8TZ | 7/8-14 | -08 | 3.03" | 1.86" | 0.38" | 1" |
| 1AA12SB8 | - | 1-1/16-12 | -08 | 3.49" | 2.32" | 0.38" | 1-7/16" |
Additional Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
