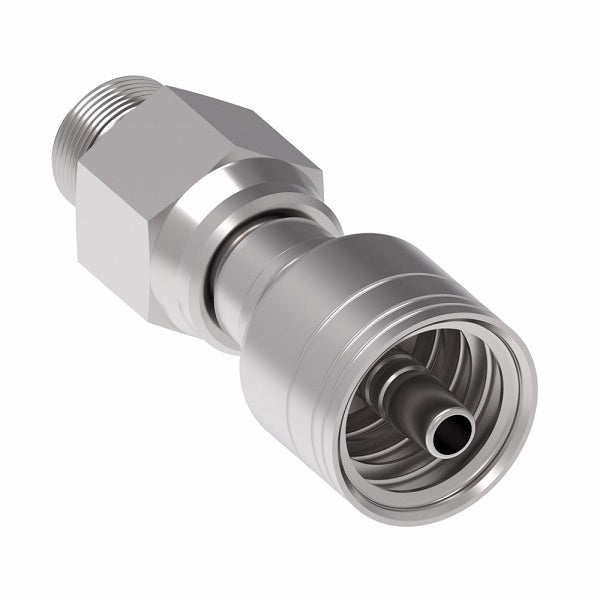

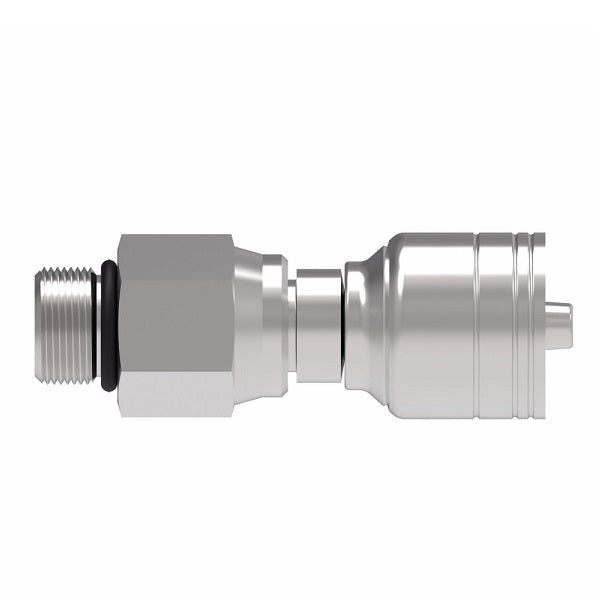

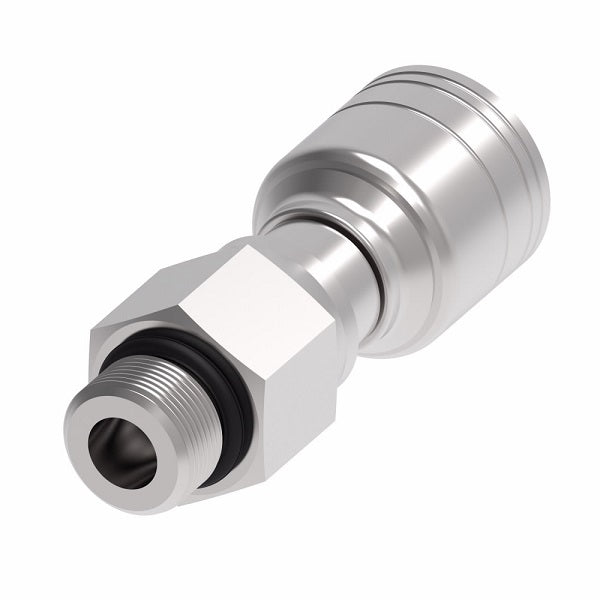

1AA10SB8TZ Aeroquip by Danfoss | Male ORB Straight Thread Swivel (With Sleeve) (SB) TCC Crimp Fitting | -10 Male O-Ring Boss x -08 Hose Barb | Zinc-Plated Nickel Steel
1AA10SB8TZ Aeroquip by Danfoss | Male ORB Straight Thread Swivel (With Sleeve) (SB) TCC Crimp Fitting | -10 Male O-Ring Boss x -08 Hose Barb | Zinc-Plated Nickel Steel
1AA10SB8TZ Aeroquip by Danfoss | Male ORB Straight Thread Swivel (With Sleeve) (SB) TCC Crimp Fitting | -10 Male O-Ring Boss x -08 Hose Barb | Zinc-Plated Nickel Steel

1AA10SB8TZ Aeroquip by Danfoss | Male ORB Straight Thread Swivel (With Sleeve) (SB) TCC Crimp Fitting | -10 Male O-Ring Boss x -08 Hose Barb | Zinc-Plated Nickel Steel

Sale price$65.12

Aeroquip® by Danfoss
TCC Crimp Fitting - Male ORB Straight Thread Swivel (With Sleeve) (SB) - Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $61.21
40–79 $55.35
80+ $48.84
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
  • MatchMate
Series:
  • 1AA MatchMate Series
Shape:

Straight
Note:
  • TTC Fittings must be crimped with the corresponding sleeve and are not approved for use without sleeve.
Technical Info:
Part Number Steel Part Number Zinc-Plated Nickel Steel Thread Hose Dash
Size		 Length Hose Cut-Off Factor E&Oslash Hex
data-mce-fragment=
1AA4SB4 - 7/16-20 -04 2.52" 1.59" 0.17" 3/4"
1AA6SB6 - 9/16-18 -06 2.72" 1.73" 0.26" 7/8"
1AA8SB10 - 3/4-16 -10 - - - -
1AA8SB6 - 3/4-16 -08 2.66" 1.67" 0.26" 7/8"
1AA8SB8 - 3/4-16 -08 3.01" 1.84" 0.38" 1"
1AA10SB12 - 7/8-14 -12 3.43" 2.24" 0.61" 1-7/16"
1AA10SB8 1AA10SB8TZ 7/8-14 -08 3.03" 1.86" 0.38" 1"
1AA12SB8 - 1-1/16-12 -08 3.49" 2.32" 0.38" 1-7/16"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
