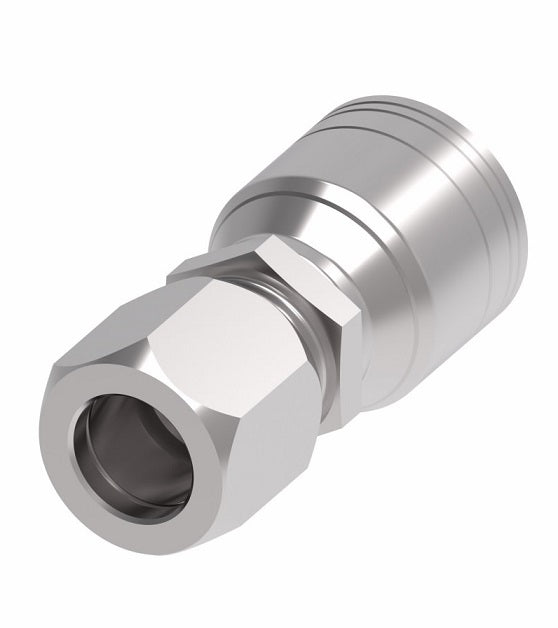

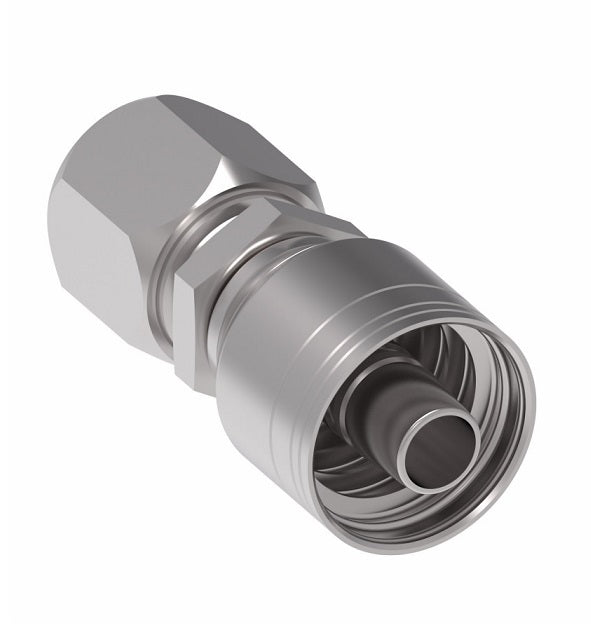

1AA4MT4 Ermeto by Danfoss | 7000 Series | Female Flareless Tube Rigid (MT) Crimp Fitting | -04 Female Flareless Tube Rigid x -04 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Note: | |||
|---|---|---|---|
|
|||
| Additional Information: | |||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Tube O.D | Hose Dash Size |
A | Hose Cut-OffFactor (D) | EØ | Hex 2 |
Hex 1 |
| 1AA4MT4 | 7/16-20 | 1/4" | -04 | 1.65" | 0.86" | 0.17" | 9/16" | 9/16" |
| 1AA4MT6 | 7/16-20 | 1/4" | -06 | 1.81" | 0.97" | 0.26" | 11/16" | 9/16" |
| 1AA5MT4 | 1/2-20 | 5/16" | -04 | 1.58" | 0.80" | 0.17" | 9/16" | 5/8" |
| 1AA5MT6 | 1/2-20 | 5/16" | -06 | 1.81" | 0.97" | 0.23" | 11/16" | 5/8" |
| 1AA6MT6 | 9/16-18 | 3/8" | -06 | 1.82" | 0.99" | 0.26" | 11/16" | 11/16" |
| 1AA8MT8 | 3/4-16 | 1/2" | -08 | 2.15" | 1.16" | 0.38" | 13/16" | 7/8" |
| 1AA10MT8 | 7/8-14 | 5/8" | -08 | 2.12" | 1.12" | 0.38" | 15/16" | 1" |
| 1AA12MT12 | 1-1/16-12 | 3/4" | -12 | 2.40" | 1.34" | 0.61" | 1-1/8" | 1-1/4" |
| 1AA16MT16 | 1-5/16-12 | 1" | -16 | 3.80" | 1.48" | 0.81" | 1-3/8" | 1-1/2" |
| 1AA20MT20 | - | - | -20 | - | - | - | - | - |
Additional Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
