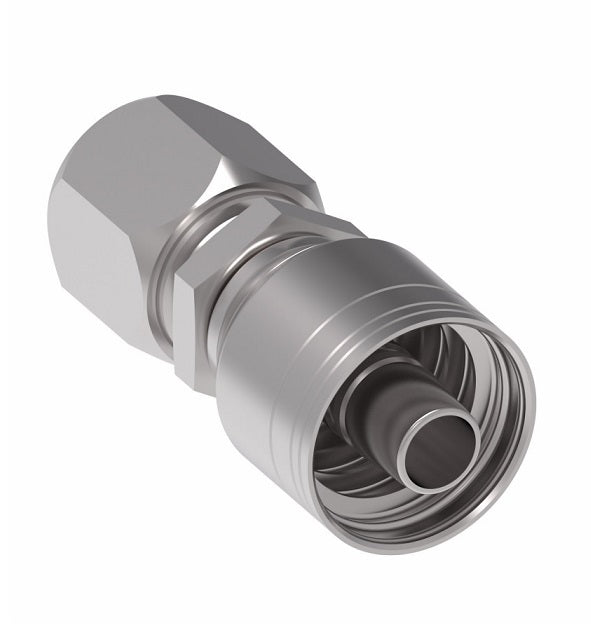

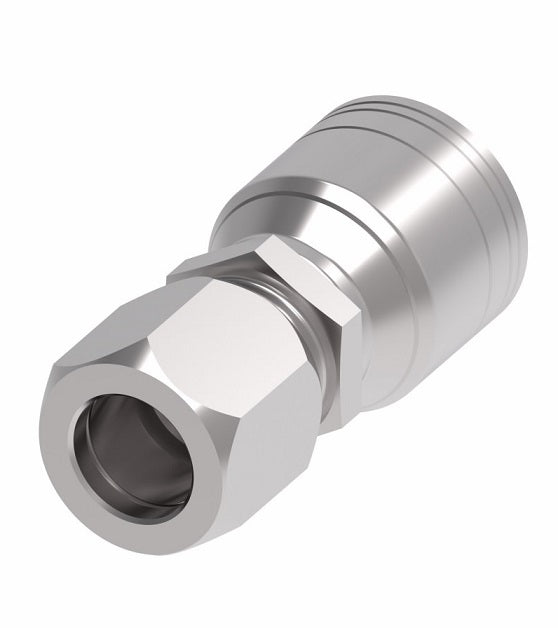

1AA8MT8 Ermeto by Danfoss | 7000 Series | Female Flareless Tube Rigid (MT) Crimp Fitting | -08 Female Flareless Tube Rigid x -08 Hose Barb | Steel
Ermeto by Danfoss
TTC Permanent Crimp Fitting - Flareless Tube Rigid (MT) - Straight
Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $29.63 |
| 40–79 | $26.79 |
| 80+ | $23.64 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Note: | |||
|---|---|---|---|
|
|||
| Additional Information: | |||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Tube O.D | Hose Dash Size |
A | Hose Cut-OffFactor (D) | EØ | Hex 2 |
Hex 1 |
| 1AA4MT4 | 7/16-20 | 1/4" | -04 | 1.65" | 0.86" | 0.17" | 9/16" | 9/16" |
| 1AA4MT6 | 7/16-20 | 1/4" | -06 | 1.81" | 0.97" | 0.26" | 11/16" | 9/16" |
| 1AA5MT4 | 1/2-20 | 5/16" | -04 | 1.58" | 0.80" | 0.17" | 9/16" | 5/8" |
| 1AA5MT6 | 1/2-20 | 5/16" | -06 | 1.81" | 0.97" | 0.23" | 11/16" | 5/8" |
| 1AA6MT6 | 9/16-18 | 3/8" | -06 | 1.82" | 0.99" | 0.26" | 11/16" | 11/16" |
| 1AA8MT8 | 3/4-16 | 1/2" | -08 | 2.15" | 1.16" | 0.38" | 13/16" | 7/8" |
| 1AA10MT8 | 7/8-14 | 5/8" | -08 | 2.12" | 1.12" | 0.38" | 15/16" | 1" |
| 1AA12MT12 | 1-1/16-12 | 3/4" | -12 | 2.40" | 1.34" | 0.61" | 1-1/8" | 1-1/4" |
| 1AA16MT16 | 1-5/16-12 | 1" | -16 | 3.80" | 1.48" | 0.81" | 1-3/8" | 1-1/2" |
| 1AA20MT20 | - | - | -20 | - | - | - | - | - |
