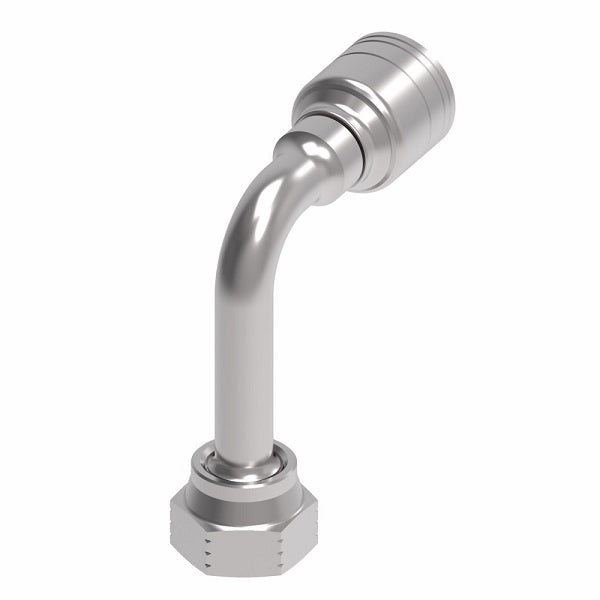

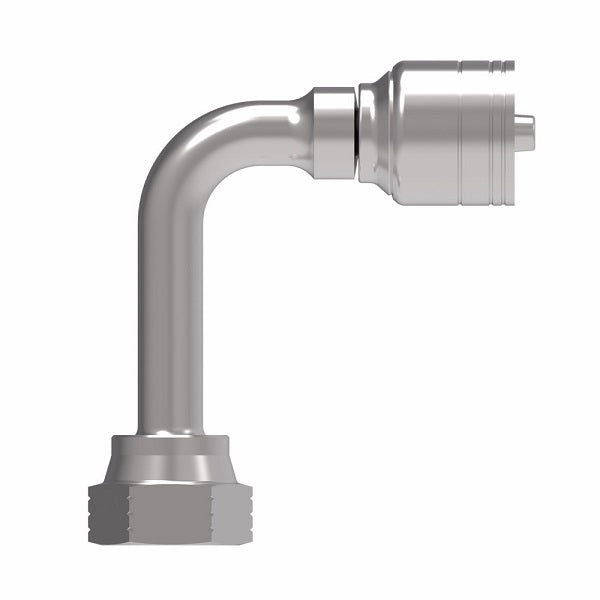

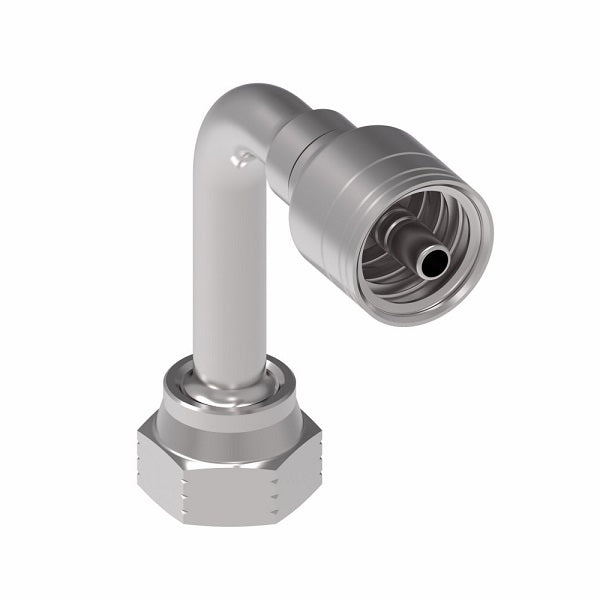

1A8FRC8TZ Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Zinc-Nickel Plated Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
| Steel Part Number |
Zinc-Nickel Plated Steel Part Number |
Hose Dash Size | End Size | Compatible Hose ID | Inside Diameter | Length |
|---|---|---|---|---|---|---|
| - | 1A6FRC6TZ | -06 | ||||
| - | 1A8FRC8TZ | -08 | 13/16" | 0.50" | 0.35" | 3.16" |
| 1A10FRC10 | - | -10 | 1" | 0.625" | 0.45" | 3.69" |
| 1A12FRC12 | - | -12 | 1-3/16" | 0.75" | 0.58" | 4.33" |
| 1A20FRC20 | - | -20 | 1-11/16" | 1.25" | 1.02" | 6.28" |
Additional Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
