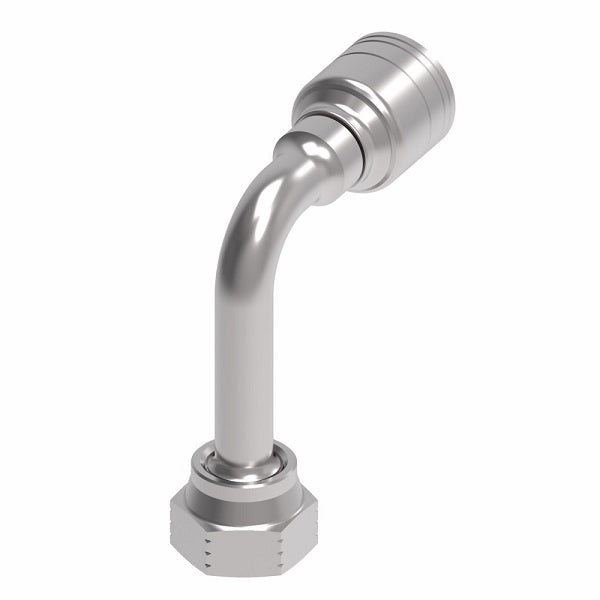

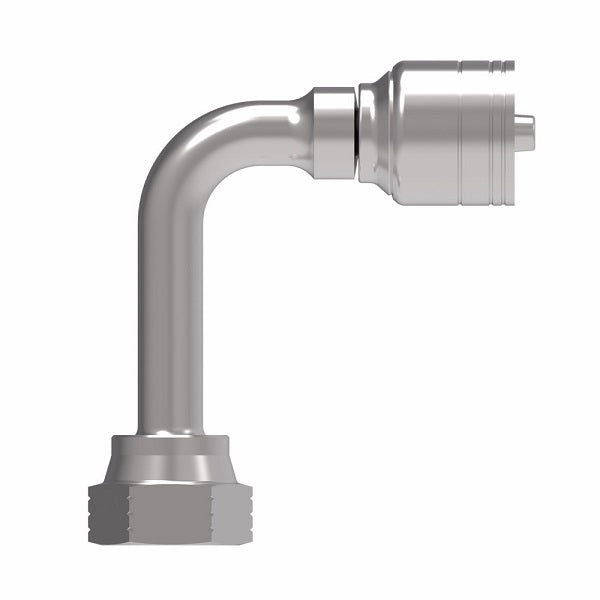

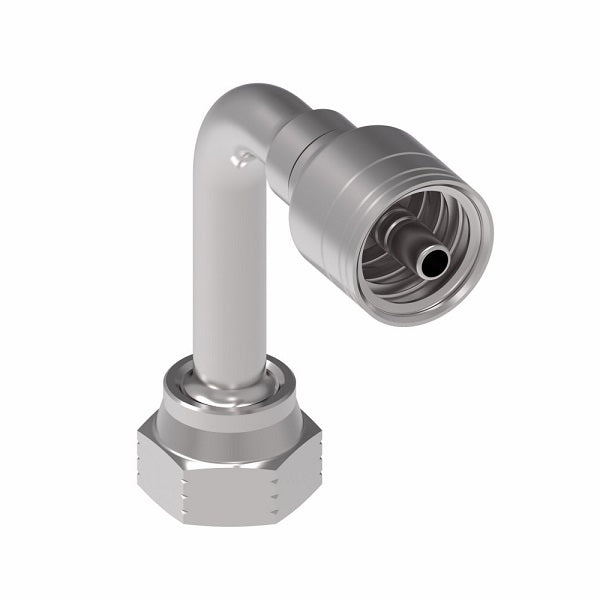

1A8FRC8TZ Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Zinc-Nickel Plated Steel
1A8FRC8TZ Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Zinc-Nickel Plated Steel
1A8FRC8TZ Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Zinc-Nickel Plated Steel

1A8FRC8TZ Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Zinc-Nickel Plated Steel

Sale price$52.52

Aeroquip® by Danfoss
Female O-Ring Face Seal Swivel Long Drop (FRC) Crimp Fitting - 90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $49.37
40–79 $44.64
80+ $39.39
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Female O-Ring Face Seal
  • 1/2in Hose Barb
Material(s):
  • Zinc-Nickel Plated Steel
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated
Steel
Part Number 		Hose Dash Size End Size Compatible Hose ID Inside Diameter Length
- 1A6FRC6TZ -06
- 1A8FRC8TZ -08 13/16" 0.50" 0.35" 3.16"
1A10FRC10 - -10 1" 0.625" 0.45" 3.69"
1A12FRC12 - -12 1-3/16" 0.75" 0.58" 4.33"
1A20FRC20 - -20 1-11/16" 1.25" 1.02" 6.28"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
