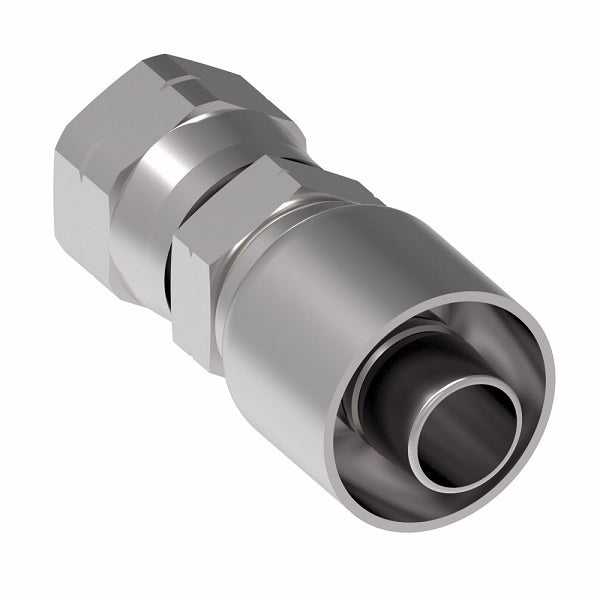

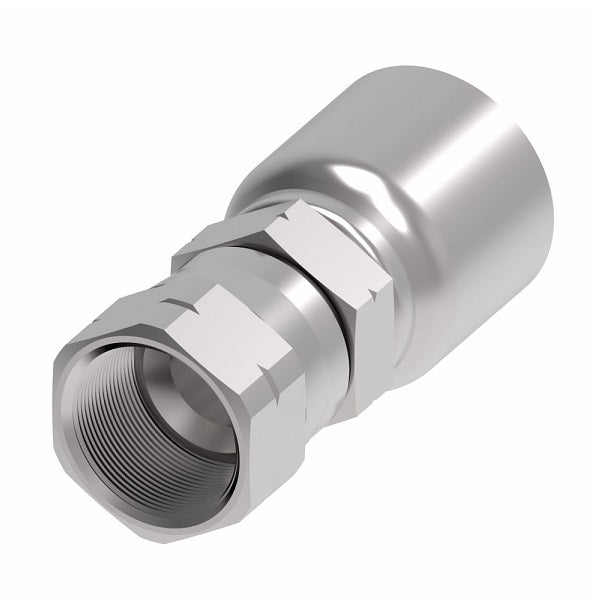

1GA4FS4 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -04 Female SAE 45° Swivel x -04 Hose Barb | Steel
1GA4FS4 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -04 Female SAE 45° Swivel x -04 Hose Barb | Steel
1GA4FS4 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -04 Female SAE 45° Swivel x -04 Hose Barb | Steel

1GA4FS4 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -04 Female SAE 45° Swivel x -04 Hose Barb | Steel

Sale price$32.68

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female SAE 45° Swivel Crimp Fitting (FS) - Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $30.72
40–79 $27.78
80+ $24.51
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female SAE 45
  • 1/4in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
1GA4FS4 7/16-20 -04 2.00" 1.07" 0.17" 9/16" 9/16"
1GA6FS6 5/8-18 -06 2.15" 1.31" 0.26" 3/4" 11/16"
1GA8FS8 3/4-16 -08 2.63" 1.46" 0.38" 7/8" 13/16"
1GA10FS10 7/8-14 -10 2.77" 1.61" 0.50" 1" 15/16"
1GA12FS12 1-1/16-14 -12 2.84" 1.65" 0.61" 1-1/4" 1-1/8"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
