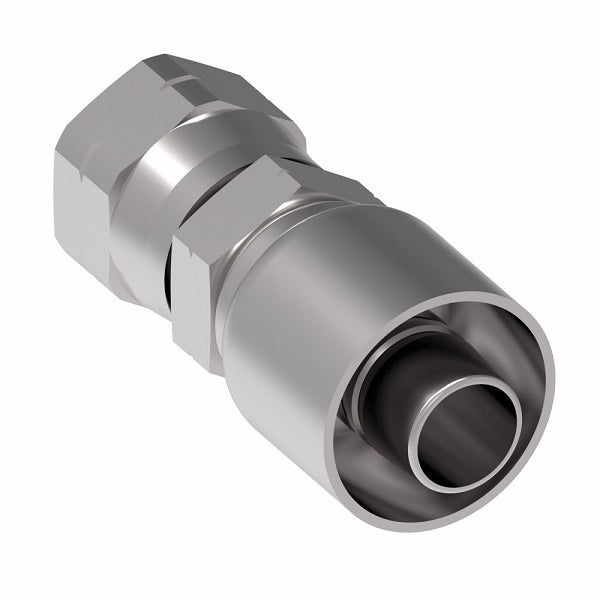

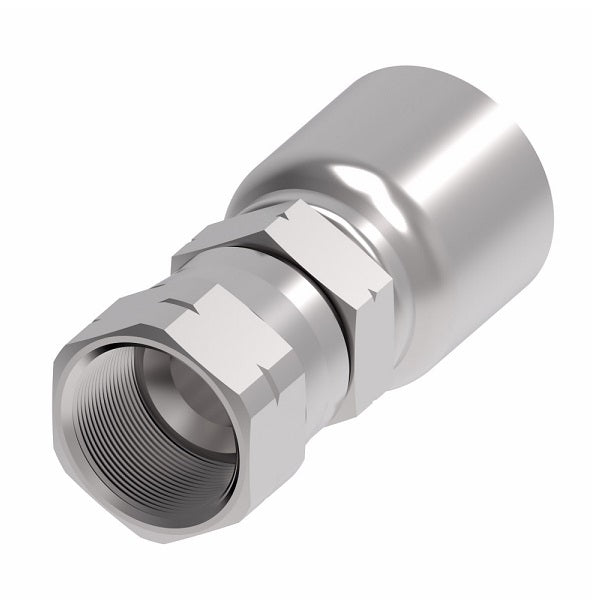

1GA10FS10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel
1GA10FS10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel
1GA10FS10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel

1GA10FS10 Aeroquip by Danfoss | 1 & 2 Wire OTC Female SAE 45° Swivel (FS) Crimp Fitting | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel

Sale price$21.21

Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female SAE 45° Swivel Crimp Fitting (FS) - Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $19.94
40–79 $18.03
80+ $15.91
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 5/8in Female SAE 45
  • 5/8in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
1GA4FS4 7/16-20 -04 2.00" 1.07" 0.17" 9/16" 9/16"
1GA6FS6 5/8-18 -06 2.15" 1.31" 0.26" 3/4" 11/16"
1GA8FS8 3/4-16 -08 2.63" 1.46" 0.38" 7/8" 13/16"
1GA10FS10 7/8-14 -10 2.77" 1.61" 0.50" 1" 15/16"
1GA12FS12 1-1/16-14 -12 2.84" 1.65" 0.61" 1-1/4" 1-1/8"
