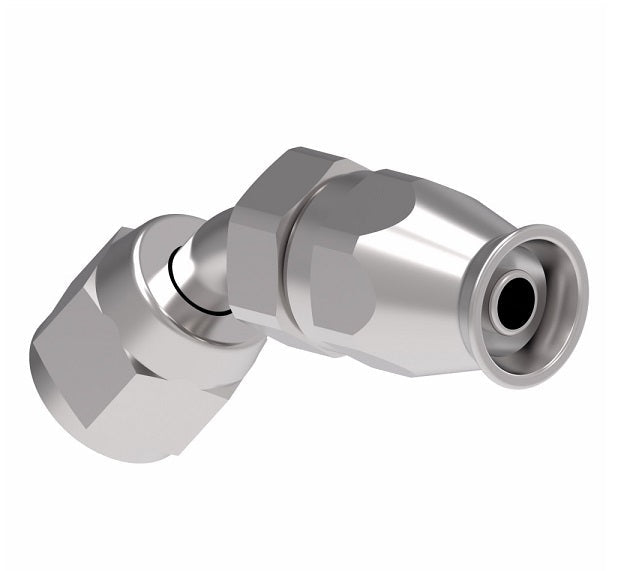

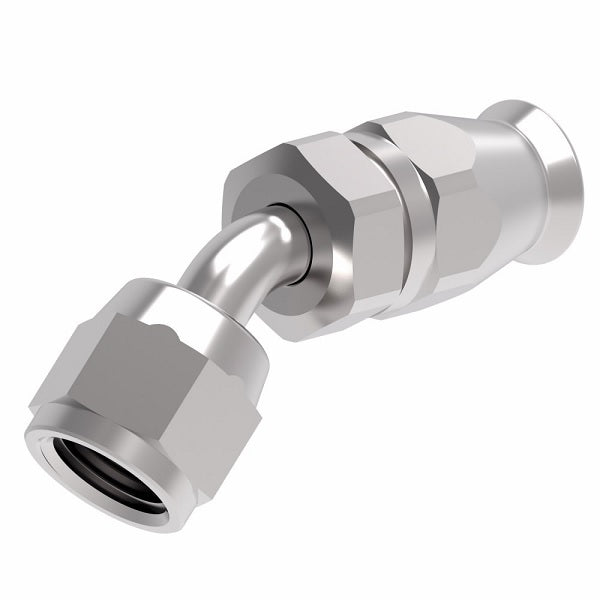

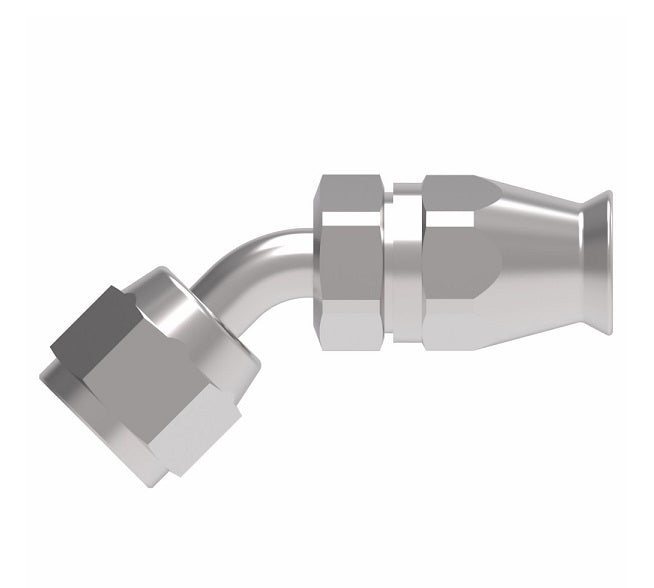

190773-5S Aeroquip by Danfoss | Female Universal 45° Elbow Super Gem PTFE Reusable Hose Fitting | -05 Female JIC (Also Couples w/ SAE 45° Flare) -05 Reusable Hose End | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | EØ | H | Sleeve Brass Part Number |
Sleeve Stainless Steel Part Number |
| 190773-3S | -03 | 3/8-24 | 1.50" | 1.17" | 0.09" | 0.46" | - | - |
| 190773-4S | -04 | 7/16-20 | 1.51" | 1.05" | 0.16" | 0.33" | - | - |
| 190773-5S | -05 | 1/2-20 | 1.62" | 1.11" | 0.23" | 0.36" | - | - |
| 190773-6S | -06 | 9/16-18 | 1.72" | 1.20" | 0.28" | 0.39" | - | - |
| 190773-8S | -08 | 3/4-16 | 2.27" | 1.64" | 0.38" | 0.55" | - | - |
| 190773-10S | -10 | 7/8-14 | 2.46" | 1.79" | 0.47" | 0.64" | - | - |
| 190773-12S | -12 | 1-1/16-12 | 2.86" | 2.21" | 0.59" | 0.78" | - | - |
| 190773-16S | -16 | 1-5/16-12 | 3.30" | 2.68" | 0.83" | 1.07" | - | - |
| 190773-20S | -20 | 1-5/8-12 | 3.80" | 3.14" | 1.06" | 1.22" | - | - |
Additional Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
