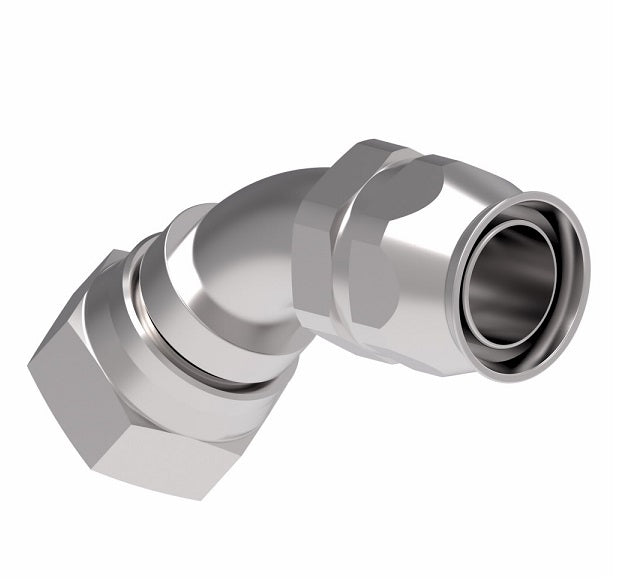

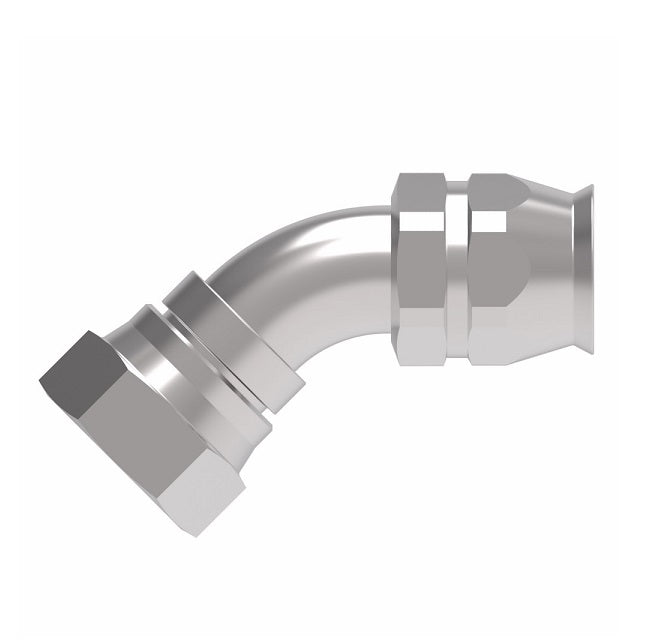

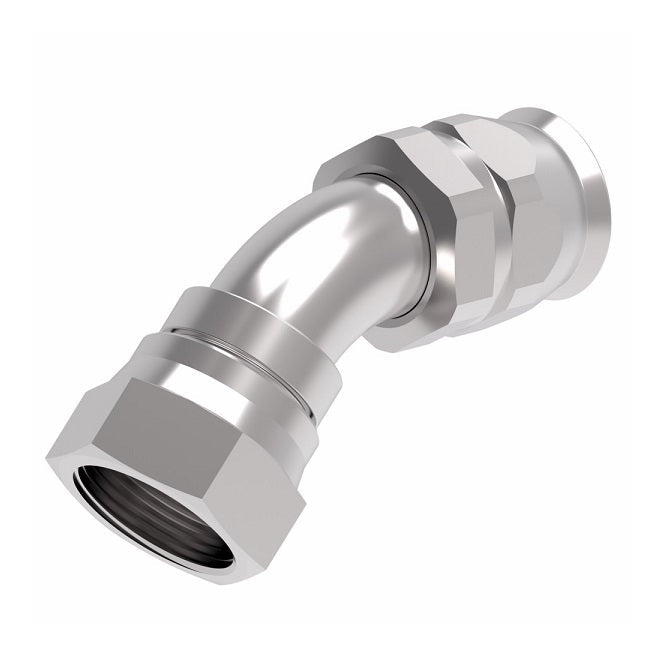

190773-16S Aeroquip by Danfoss | Female Universal 45° Elbow Super Gem PTFE Reusable Hose Fitting | -16 Female JIC (Also Couples w/ SAE 45° Flare) -16 Reusable Hose End | Steel
Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - Female Universal - 45° Elbow
Female JIC also Couples with SAE 45° Flare.
Universal type identification for both SAE 45° and 37° connections.
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $98.62 |
| 20–59 | $89.18 |
| 60+ | $78.69 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | EØ | H | Sleeve Brass Part Number |
Sleeve Stainless Steel Part Number |
| 190773-3S | -03 | 3/8-24 | 1.50" | 1.17" | 0.09" | 0.46" | - | - |
| 190773-4S | -04 | 7/16-20 | 1.51" | 1.05" | 0.16" | 0.33" | - | - |
| 190773-5S | -05 | 1/2-20 | 1.62" | 1.11" | 0.23" | 0.36" | - | - |
| 190773-6S | -06 | 9/16-18 | 1.72" | 1.20" | 0.28" | 0.39" | - | - |
| 190773-8S | -08 | 3/4-16 | 2.27" | 1.64" | 0.38" | 0.55" | - | - |
| 190773-10S | -10 | 7/8-14 | 2.46" | 1.79" | 0.47" | 0.64" | - | - |
| 190773-12S | -12 | 1-1/16-12 | 2.86" | 2.21" | 0.59" | 0.78" | - | - |
| 190773-16S | -16 | 1-5/16-12 | 3.30" | 2.68" | 0.83" | 1.07" | - | - |
| 190773-20S | -20 | 1-5/8-12 | 3.80" | 3.14" | 1.06" | 1.22" | - | - |
