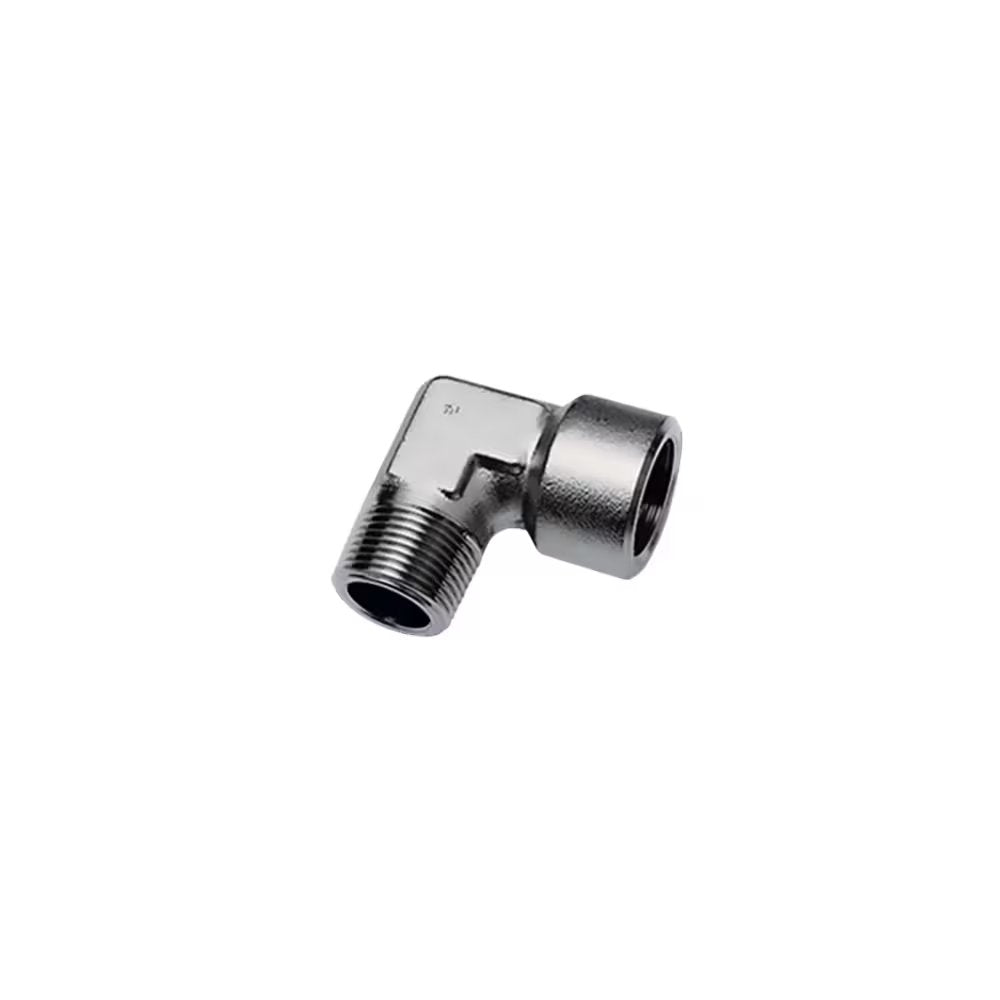

1844 27 27 by Parker | Legris Equal Stud Fitting | 3/4" Male BSPT Thread x 3/4" Female BSPP Thread | 90° Elbow | 316L Stainless Steel

1844 27 27 by Parker | Legris Equal Stud Fitting | 3/4" Male BSPT Thread x 3/4" Female BSPP Thread | 90° Elbow | 316L Stainless Steel

Sale price$257.03
Buy more, save moreDiscounts applied in cart/checkout.
Adapters and Manifolds:
Part Number C1 C2 E G H J L Kg
1844 10 10 1/8" 1/8" 7.5 mm 15 mm 20.5 mm 10 mm 22.5 mm .022 Kg
1844 13 13 1/4" 1/4" 12 mm 18.5 mm 27.5 mm 12 mm 26.5 mm .045 Kg
1844 17 17 3/8" 3/8" 12 mm 23.5 mm 28 mm 14 mm 30 mm .070 Kg
1844 21 21 1/2" 1/2" 15 mm 28 mm 38 mm 18 mm 38 mm .120 Kg
1844 27 27 3/4" 3/4" 16.5 mm 33 mm 41 mm 22 mm 44.5 mm .160 Kg
1844 34 34 1" 1" 19 mm 40 mm 48 mm 32 mm 50 mm .311 Kg

Additional Product Data:

Series:
  • 1844 Series
Shape:

90° Elbow

Ends Configuration:
  • 3/4in Male BSPT
  • 3/4in Female BSPP

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
