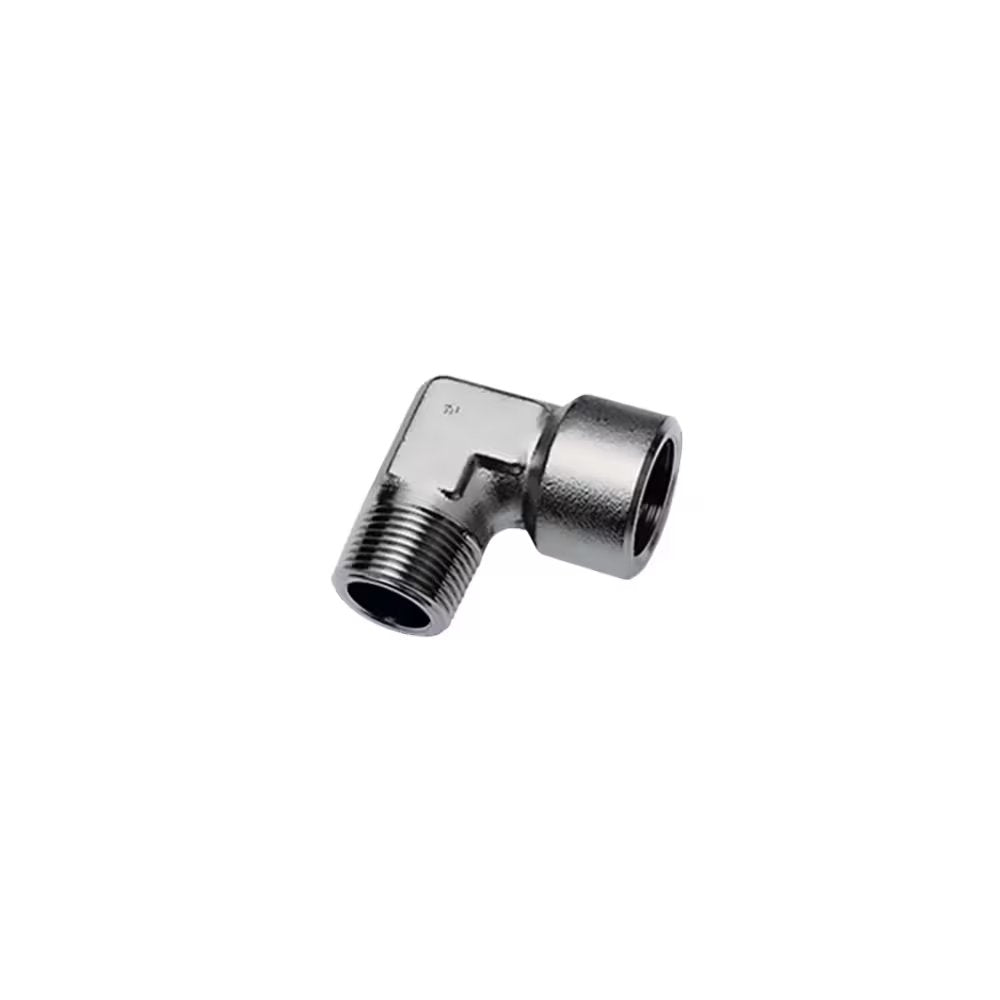

1844 17 17 by Parker | Legris Equal Stud Fitting | 3/8" Male BSPT Thread x 3/8" Female BSPP Thread | 90° Elbow | 316L Stainless Steel | Pack of 2
by Parker Hannifin
Stainless Steel Adapters:1844 Equal Stud Elbow, Male BSPT/Female BSPP Thread
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $361.48 |
| 15–29 | $326.87 |
| 30+ | $288.41 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
| Adapters and Manifolds: | ||||||||
|---|---|---|---|---|---|---|---|---|
 |
||||||||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | C1 | C2 | E | G | H | J | L | Kg |
| 1844 10 10 | 1/8" | 1/8" | 7.5 mm | 15 mm | 20.5 mm | 10 mm | 22.5 mm | .022 Kg |
| 1844 13 13 | 1/4" | 1/4" | 12 mm | 18.5 mm | 27.5 mm | 12 mm | 26.5 mm | .045 Kg |
| 1844 17 17 | 3/8" | 3/8" | 12 mm | 23.5 mm | 28 mm | 14 mm | 30 mm | .070 Kg |
| 1844 21 21 | 1/2" | 1/2" | 15 mm | 28 mm | 38 mm | 18 mm | 38 mm | .120 Kg |
| 1844 27 27 | 3/4" | 3/4" | 16.5 mm | 33 mm | 41 mm | 22 mm | 44.5 mm | .160 Kg |
| 1844 34 34 | 1" | 1" | 19 mm | 40 mm | 48 mm | 32 mm | 50 mm | .311 Kg |
