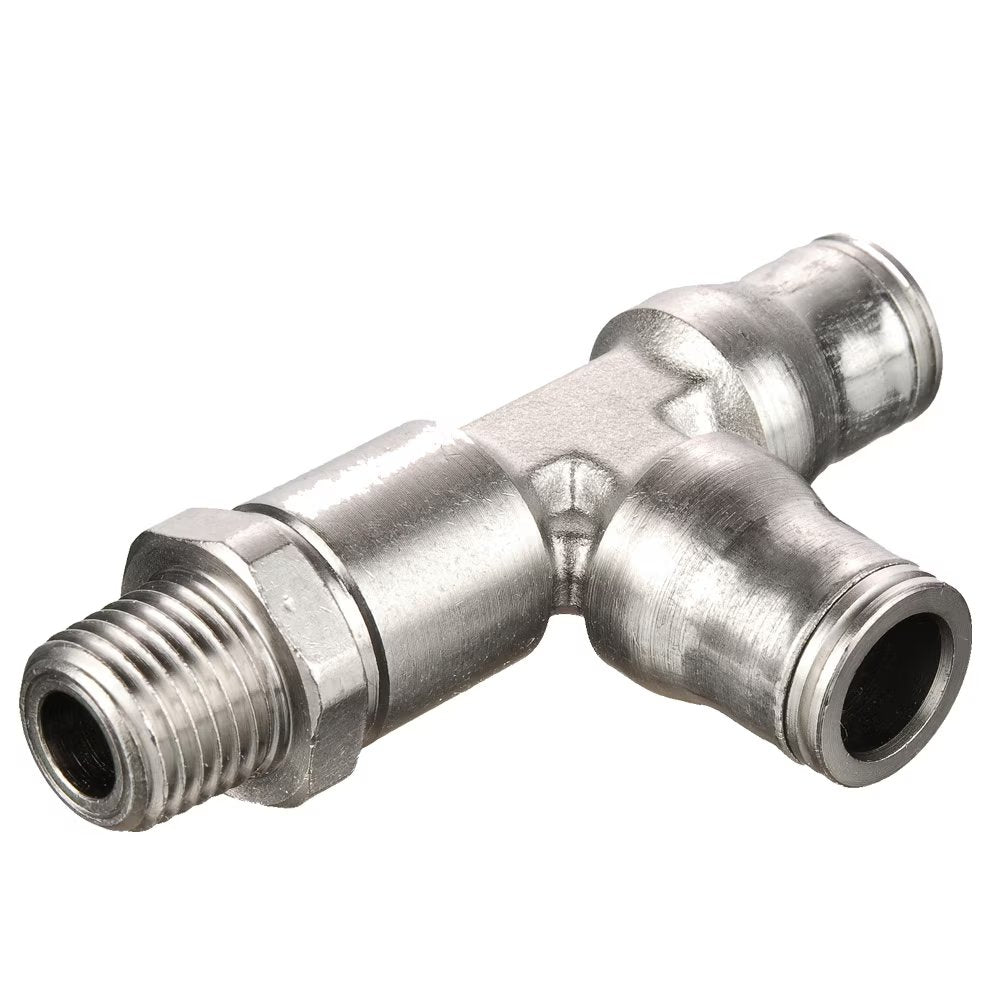

171PLM-6M-2R by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 6mm Tube Size x 1/8" Male BSPT Threads | 14.00mm Height | 28.00mm Length | Tee | Electroless Nickel-Plated Brass | Pack of 10

171PLM-6M-2R by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 6mm Tube Size x 1/8" Male BSPT Threads | 14.00mm Height | 28.00mm Length | Tee | Electroless Nickel-Plated Brass | Pack of 10

Sale price$146.55

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:171PLM Male Run Tee Metric Tube to Tube to BSPT

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $137.76
20–59 $124.57
60+ $109.91
Discounts applied in cart/checkout.

Product Data:

Series:
  • 171PLM Series
Shape:

Tee

Ends Configuration:
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • 1/8in Male BSPT
  • Some Ends Match
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size BSPT F H1 H2 K L
171PLM-4M-2R 4 mm 1/8" 10 mm 18.00 mm 19.50 mm 11.00 mm 23.00 mm
171PLM-6M-2R 6 mm 1/8" 13 mm 21.50 mm 23.50 mm 14.00 mm 23.00 mm
171PLM-6M-4R 6 mm 1/4" 14 mm 21.50 mm 24.50 mm 15.00 mm 28.00 mm
171PLM-8M-2R 8 mm 1/8" 140 mm 23.50 mm 25.00 mm 15.00 mm 31.00 mm
171PLM-8M-4R 8 mm 1/4" 14 mm 23.50 mm 26.50 mm 15.00 mm 31.00 mm
171PLM-10M-4R 10 mm 1/4" 18 mm 29.00 mm 30.50 mm 19.50 mm 37.50 mm
171PLM-10M-6R 10 mm 3/8" 18 mm 29.00 mm 32.50 mm 19.50 mm 37.50 mm
171PLM-12M-6R 12 mm 3/8" 21 mm 31.00 mm 36.50 mm 23.00 mm 40.50 mm
171PLM-14M-8R 14 mm 1/2" 22 mm 34.00 mm 40.00 mm 24.00 mm 45.00 mm
