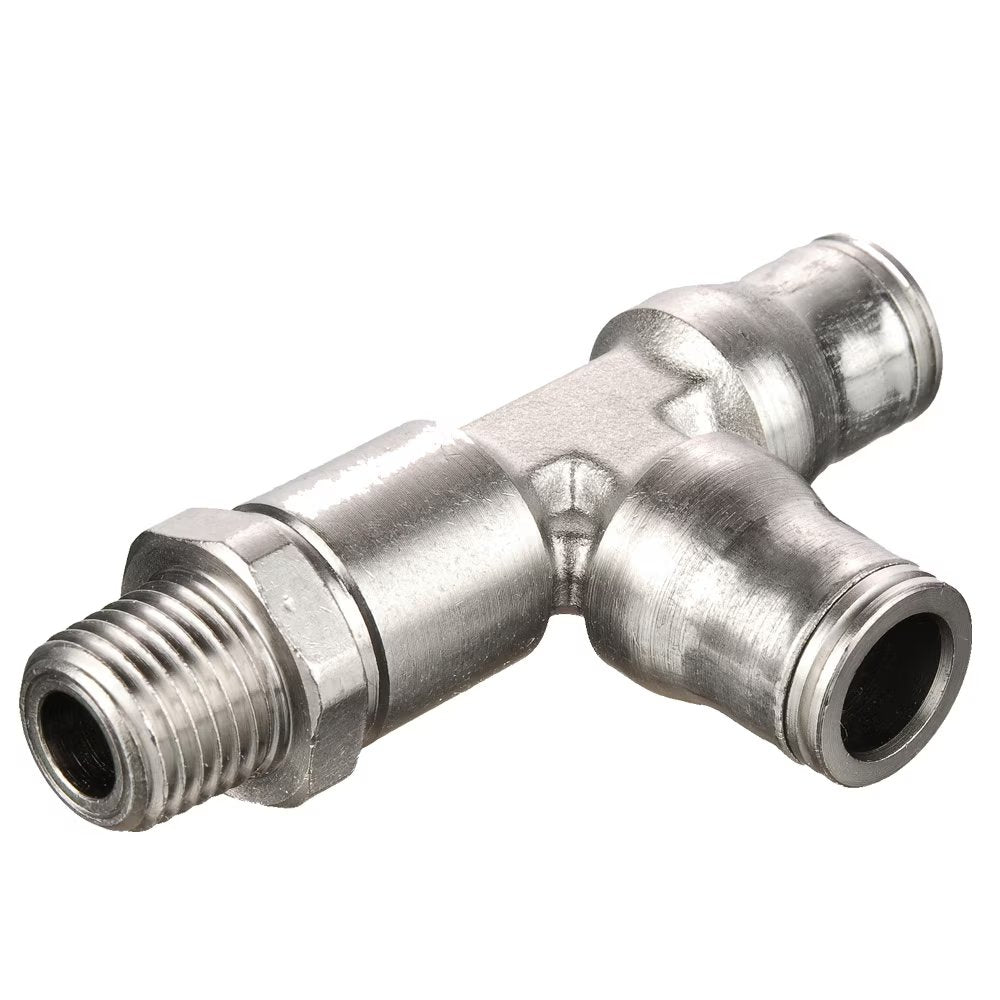

171PLM-10M-4R by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 10mm Tube Size x 1/4" Male BSPT Threads | 19.50mm Height | 37.50mm Length | Tee | Electroless Nickel-Plated Brass | Pack of 10

171PLM-10M-4R by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 10mm Tube Size x 1/4" Male BSPT Threads | 19.50mm Height | 37.50mm Length | Tee | Electroless Nickel-Plated Brass | Pack of 10

Sale price$262.16

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:171PLM Male Run Tee Metric Tube to Tube to BSPT

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $246.43
15–29 $222.84
30+ $196.62
Discounts applied in cart/checkout.

Product Data:

Series:
  • 171PLM Series
Shape:

Tee

Ends Configuration:
  • 10mm Push-to-Connect
  • 10mm Push-to-Connect
  • 1/4in Male BSPT
  • Some Ends Match
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size BSPT F H1 H2 K L
171PLM-4M-2R 4 mm 1/8" 10 mm 18.00 mm 19.50 mm 11.00 mm 23.00 mm
171PLM-6M-2R 6 mm 1/8" 13 mm 21.50 mm 23.50 mm 14.00 mm 23.00 mm
171PLM-6M-4R 6 mm 1/4" 14 mm 21.50 mm 24.50 mm 15.00 mm 28.00 mm
171PLM-8M-2R 8 mm 1/8" 140 mm 23.50 mm 25.00 mm 15.00 mm 31.00 mm
171PLM-8M-4R 8 mm 1/4" 14 mm 23.50 mm 26.50 mm 15.00 mm 31.00 mm
171PLM-10M-4R 10 mm 1/4" 18 mm 29.00 mm 30.50 mm 19.50 mm 37.50 mm
171PLM-10M-6R 10 mm 3/8" 18 mm 29.00 mm 32.50 mm 19.50 mm 37.50 mm
171PLM-12M-6R 12 mm 3/8" 21 mm 31.00 mm 36.50 mm 23.00 mm 40.50 mm
171PLM-14M-8R 14 mm 1/2" 22 mm 34.00 mm 40.00 mm 24.00 mm 45.00 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
