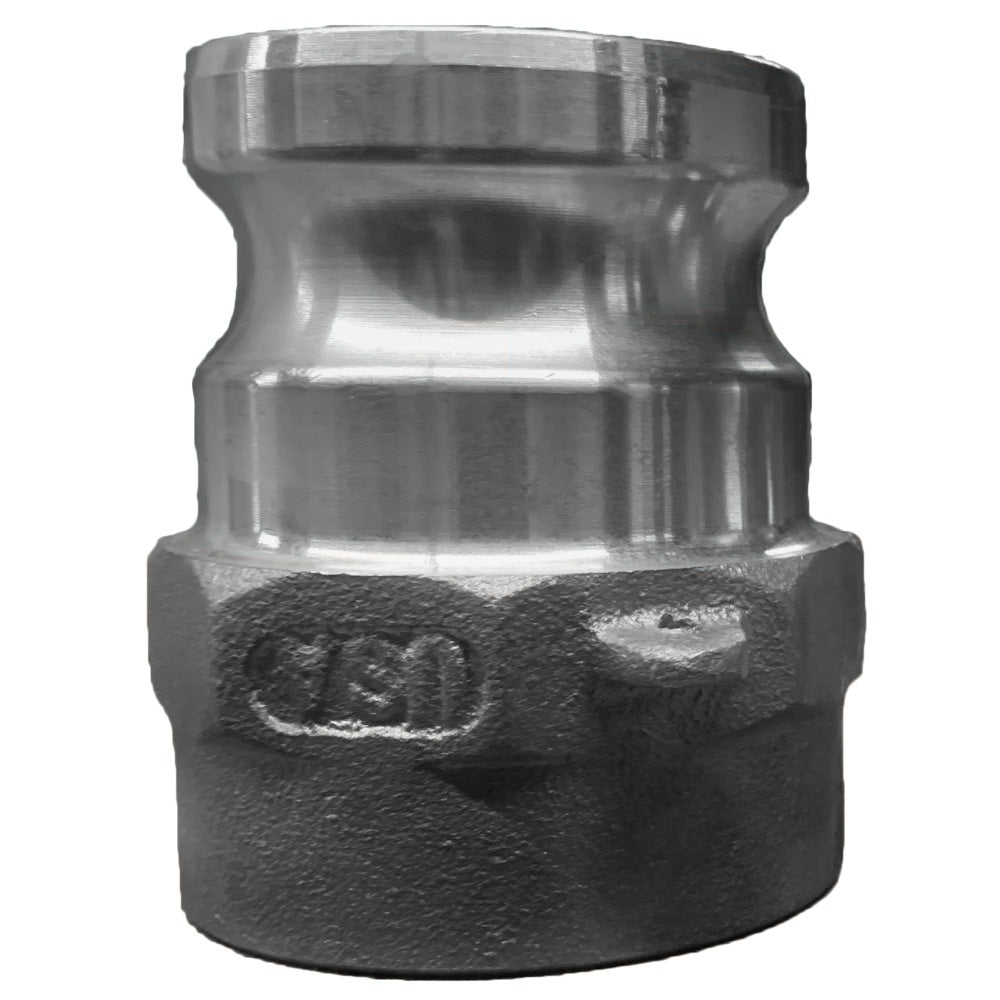

1400125H (25AHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type AHD | 2-1/2" Adapter x 2-1/2" Female NPT | 316 Stainless Steel | Buna-N Seal
PT Coupling
Heavy Duty Cam & Groove (Camlock) Adapter | Type AHD | Adapter x Female NPT | 316 Stainless Steel | Buna-N Seal
Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $261.70 |
| 15–29 | $236.64 |
| 30+ | $208.80 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Heavy Duty Adapter |
Female NPT Thread |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 15AHD | 1400115H | 1-1/2" | 1-1/2" | 500 PSI |
| 20AHD | 64762000 | 2" | 2" | 500 PSI |
| 25AHD | 1400125H | 2-1/2" | 2-1/2" | 400 PSI |
| 30AHD | 1400130H | 3" | 3" | 400 PSI |
| 40AHD | 1400140H | 4" | 4" | 300 PSI |
| 60AHD | 1400160H | 6" | 6" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
