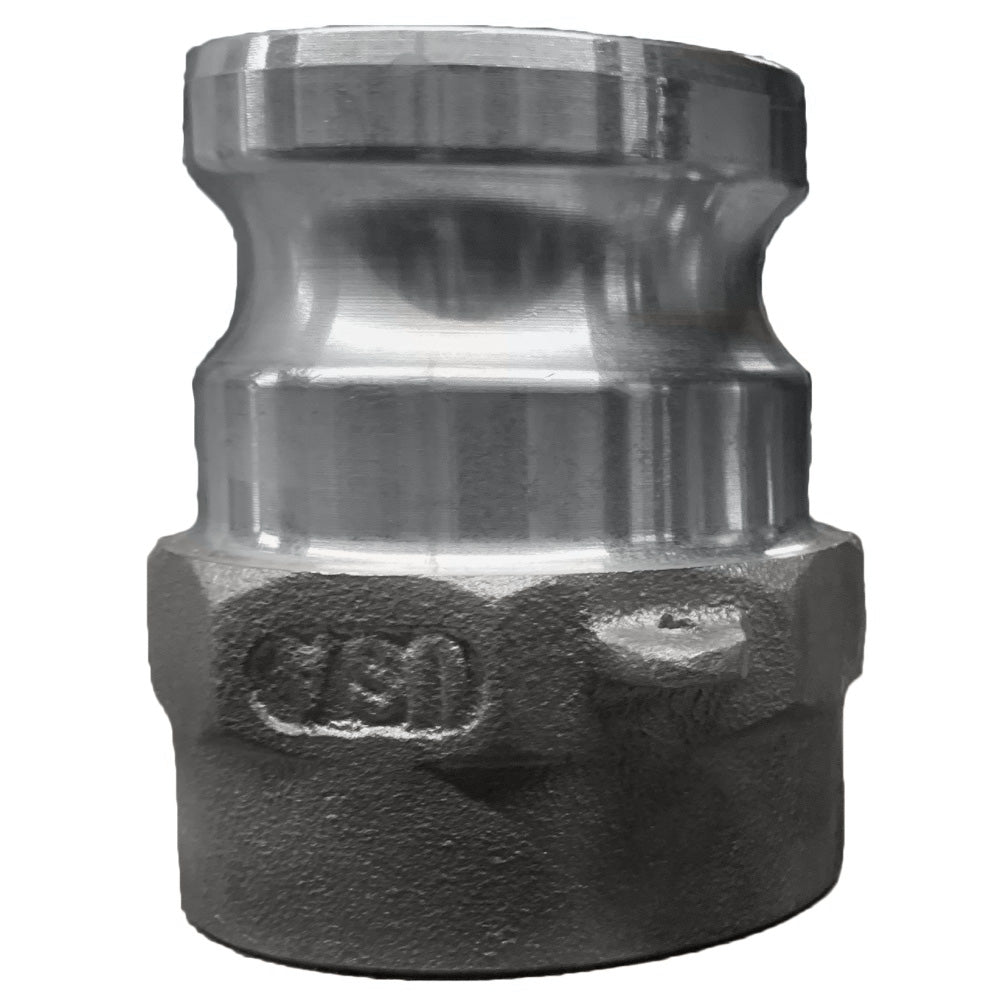

1400115H (15AHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type AHD | 1-1/2" Adapter x 1-1/2" Female NPT | 316 Stainless Steel | Buna-N Seal

1400115H (15AHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type AHD | 1-1/2" Adapter x 1-1/2" Female NPT | 316 Stainless Steel | Buna-N Seal

Sale price$236.20
Buy more, save moreDiscounts applied in cart/checkout.
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Heavy Duty
Adapter		 Female NPT
Thread		 Max. Allowable
Working Press.
(PSI)*
15AHD 1400115H 1-1/2" 1-1/2" 500 PSI
20AHD 64762000 2" 2" 500 PSI
25AHD 1400125H 2-1/2" 2-1/2" 400 PSI
30AHD 1400130H 3" 3" 400 PSI
40AHD 1400140H 4" 4" 300 PSI
60AHD 1400160H 6" 6" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

Additional Product Data:

Shape:

Straight

Cam & Groove Type:

Type A

Ends Configuration:
  • 1-1/2in Male Cam & Groove
  • 1-1/2in Female NPT

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
