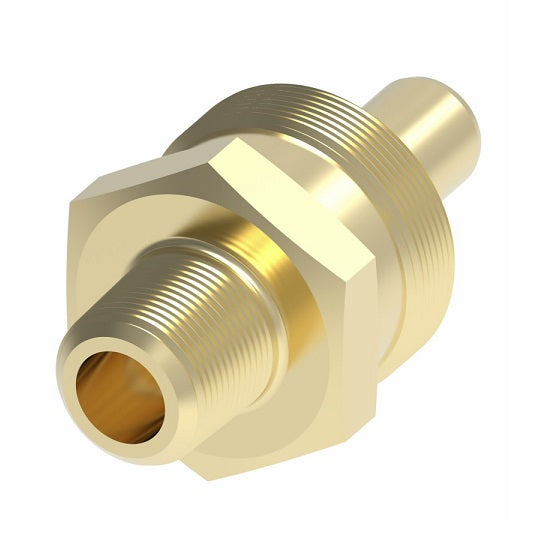

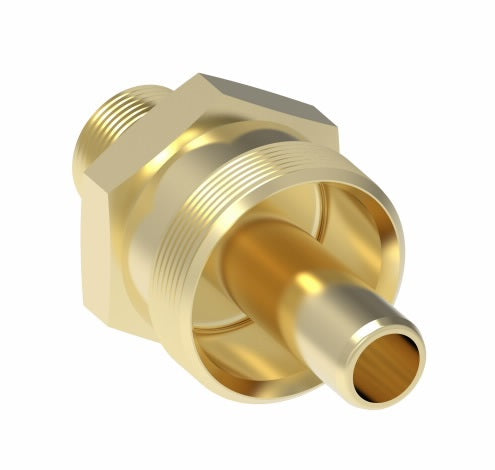

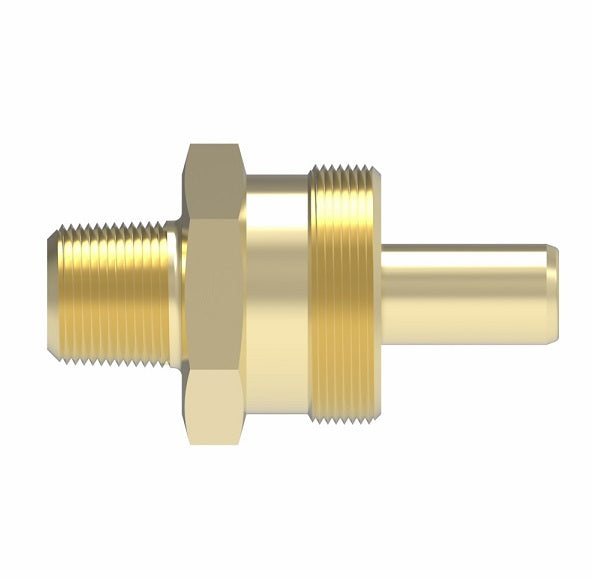

1391X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -06 Male NPTF -08 Reusable Hose End | Brass
1391X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -06 Male NPTF -08 Reusable Hose End | Brass
1391X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -06 Male NPTF -08 Reusable Hose End | Brass

1391X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -06 Male NPTF -08 Reusable Hose End | Brass

Sale price$11.16
Buy more, save moreDiscounts applied in cart/checkout.
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number
Brass		 Hose I.D. Pipe Size Hole Diameter
1391X6 3/8" 1/4" .281
1391X6X6 3/8" 3/8" .281
1391X6X8 3/8" 1/2" .281
1391X8 1/2" 3/8" .390
1391X8X8 1/2" 1/2" .390

Note: Drawings may differ from actual parts.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Male NPTF
  • 1/2in Reusable Hose End
Material(s):
  • Brass

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
