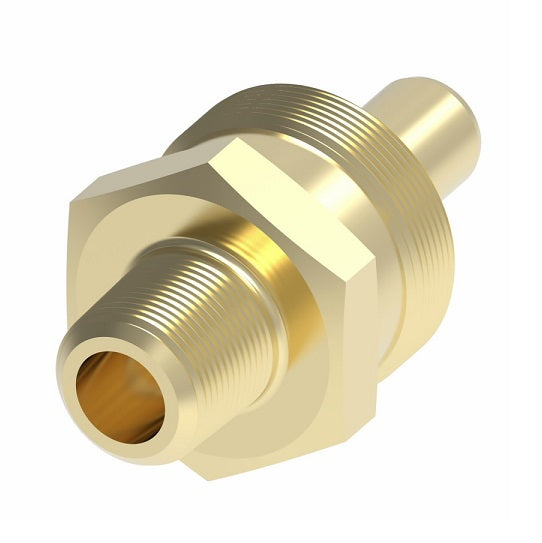

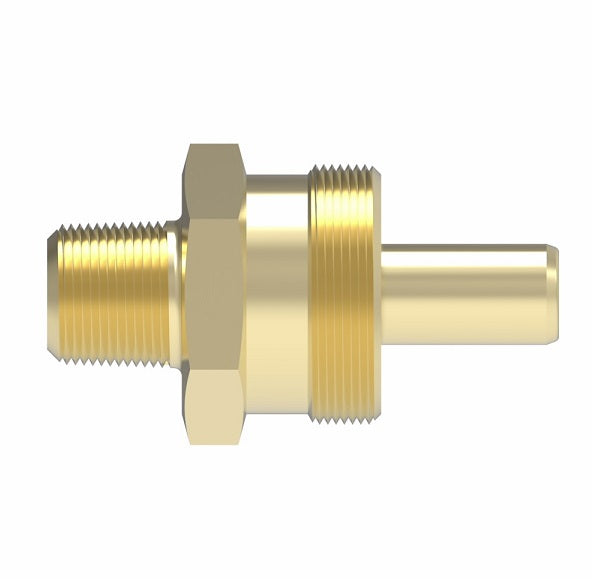

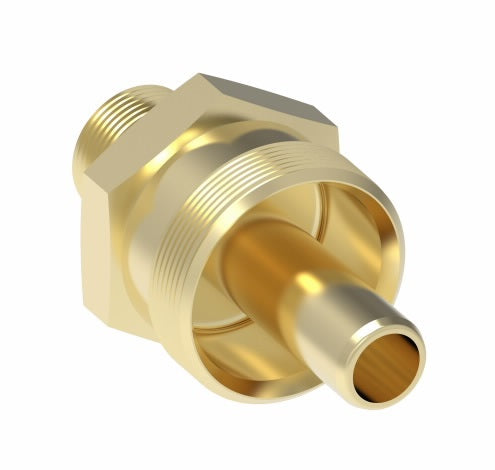

1391X6X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -08 Male NPTF -06 Reusable Hose End | Brass
1391X6X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -08 Male NPTF -06 Reusable Hose End | Brass
1391X6X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -08 Male NPTF -06 Reusable Hose End | Brass

1391X6X8 Weatherhead by Danfoss | Insert (Body Only) Field Attachable Fitting | 338 'B' Series DOT | -08 Male NPTF -06 Reusable Hose End | Brass

Sale price$10.07

Weatherhead by Danfoss
DOT Field Attachable Fitting - 338 'B' Series - Insert (Body Only) - Straight

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.
Buy More, Save More!
Quantity Price Each
10–39 $9.47
40–79 $8.56
80+ $7.55
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Male NPTF
  • 3/8in Reusable Hose End
Material(s):
  • Brass
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number
Brass		 Hose I.D. Pipe Size Hole Diameter
1391X6 3/8" 1/4" .281
1391X6X6 3/8" 3/8" .281
1391X6X8 3/8" 1/2" .281
1391X8 1/2" 3/8" .390
1391X8X8 1/2" 1/2" .390

Note: Drawings may differ from actual parts.
