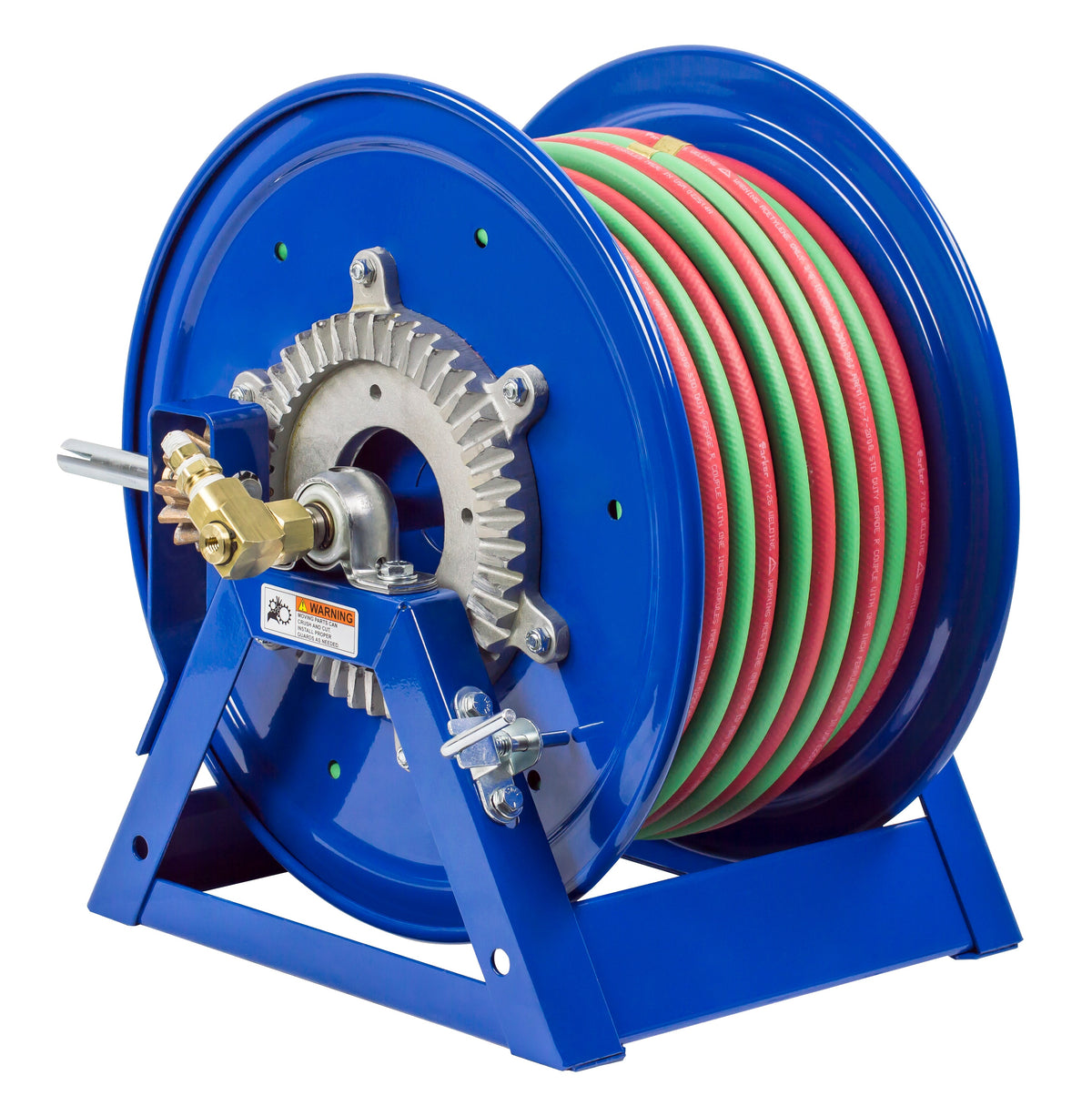

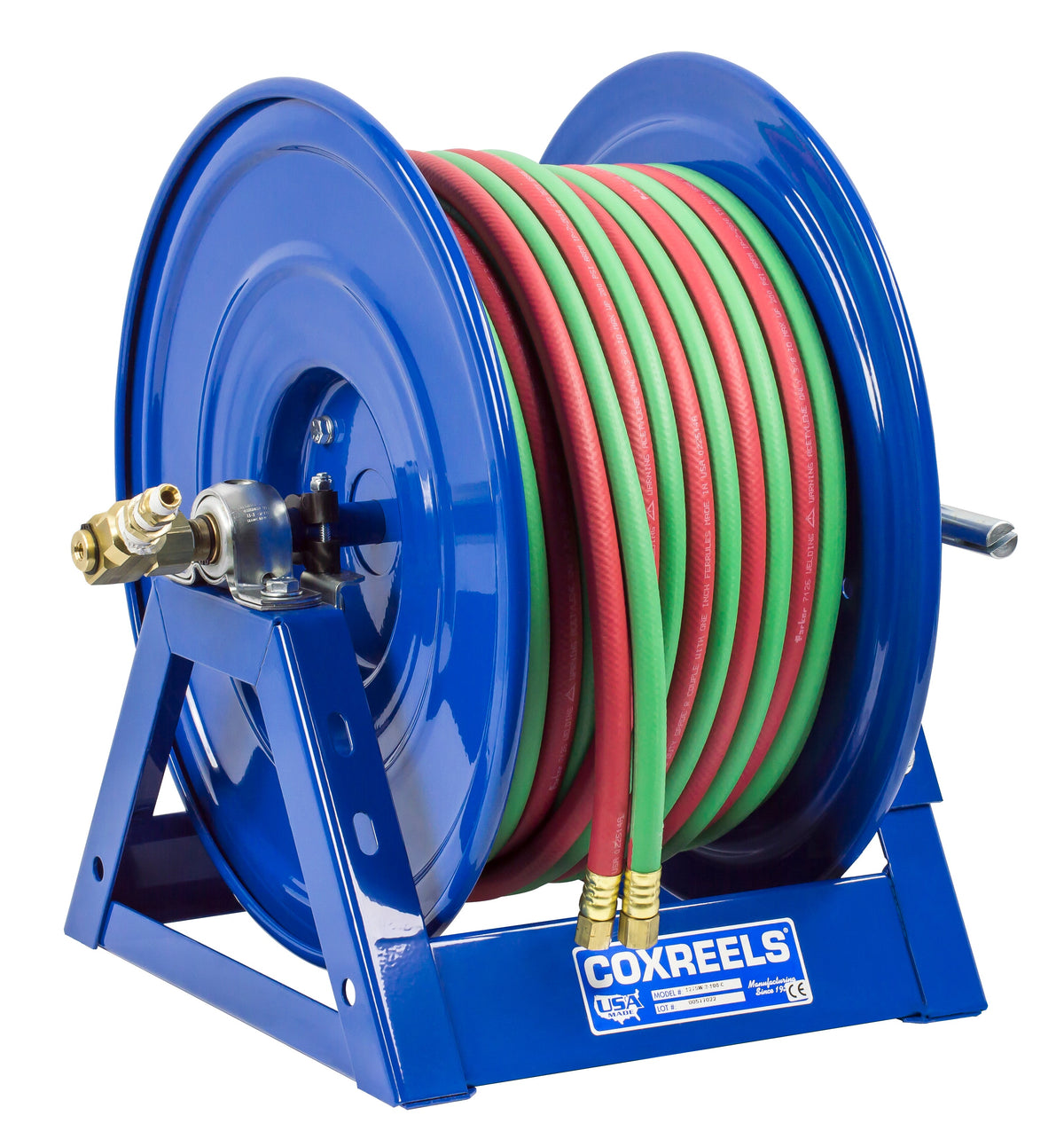

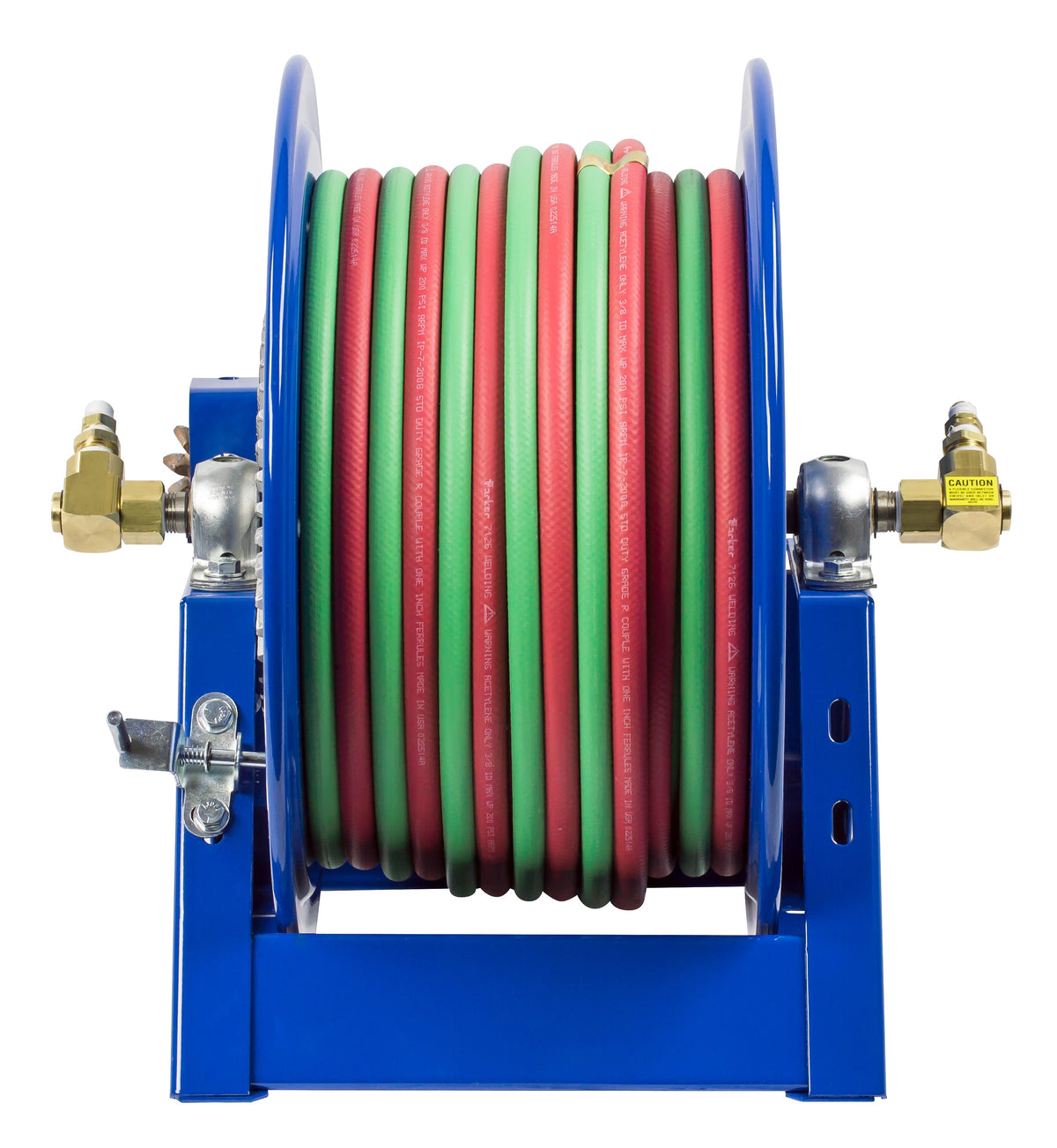

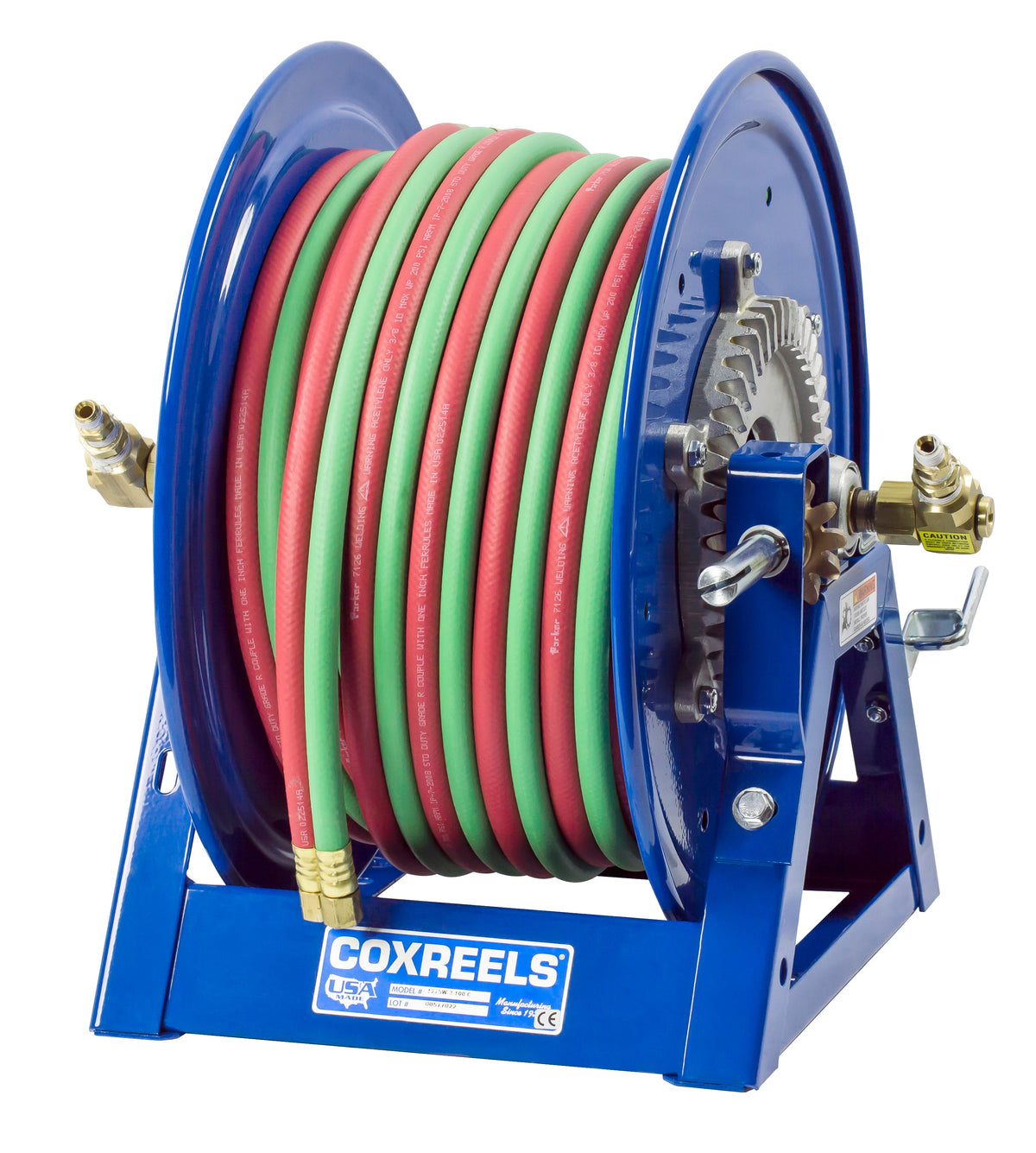

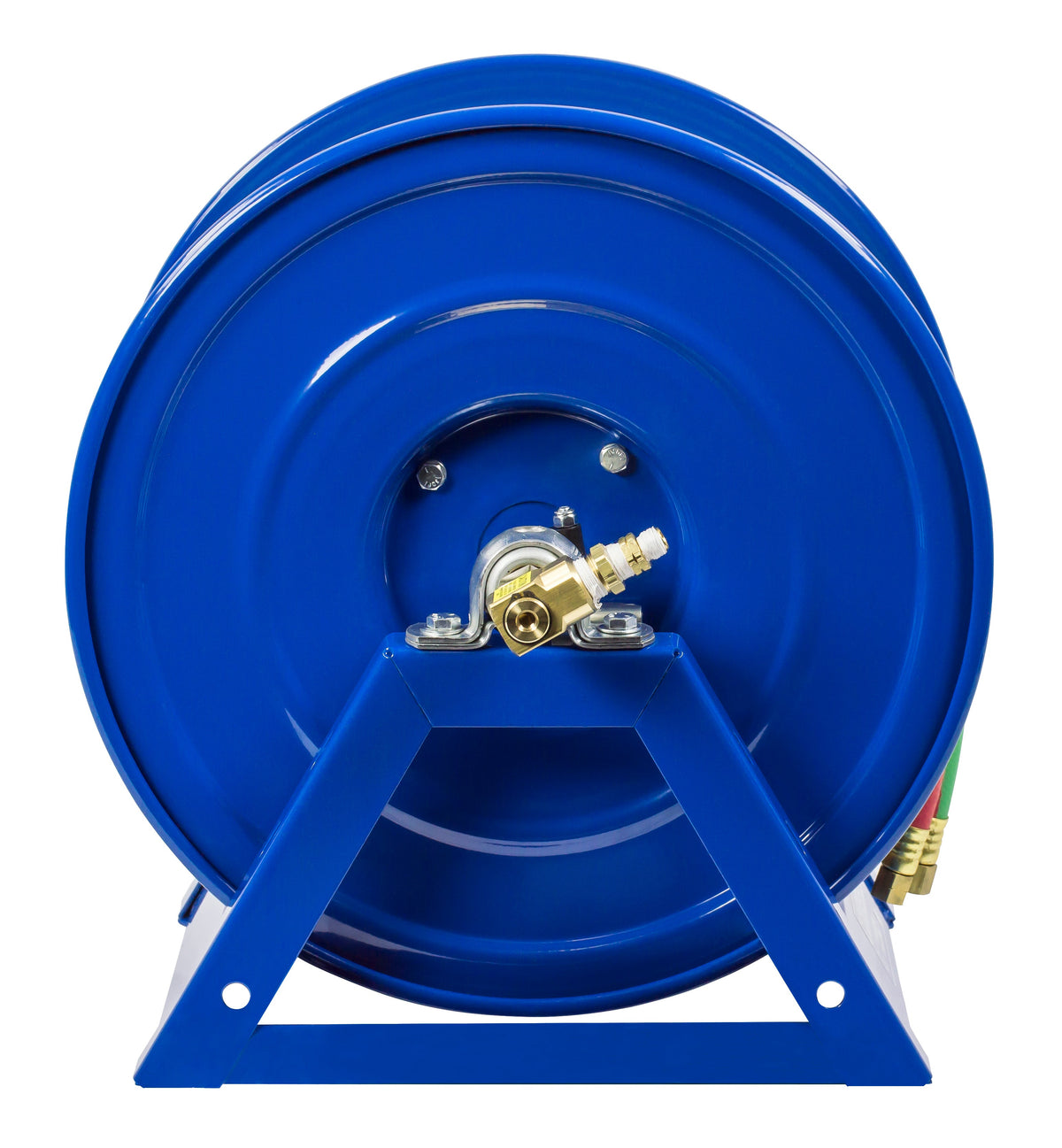

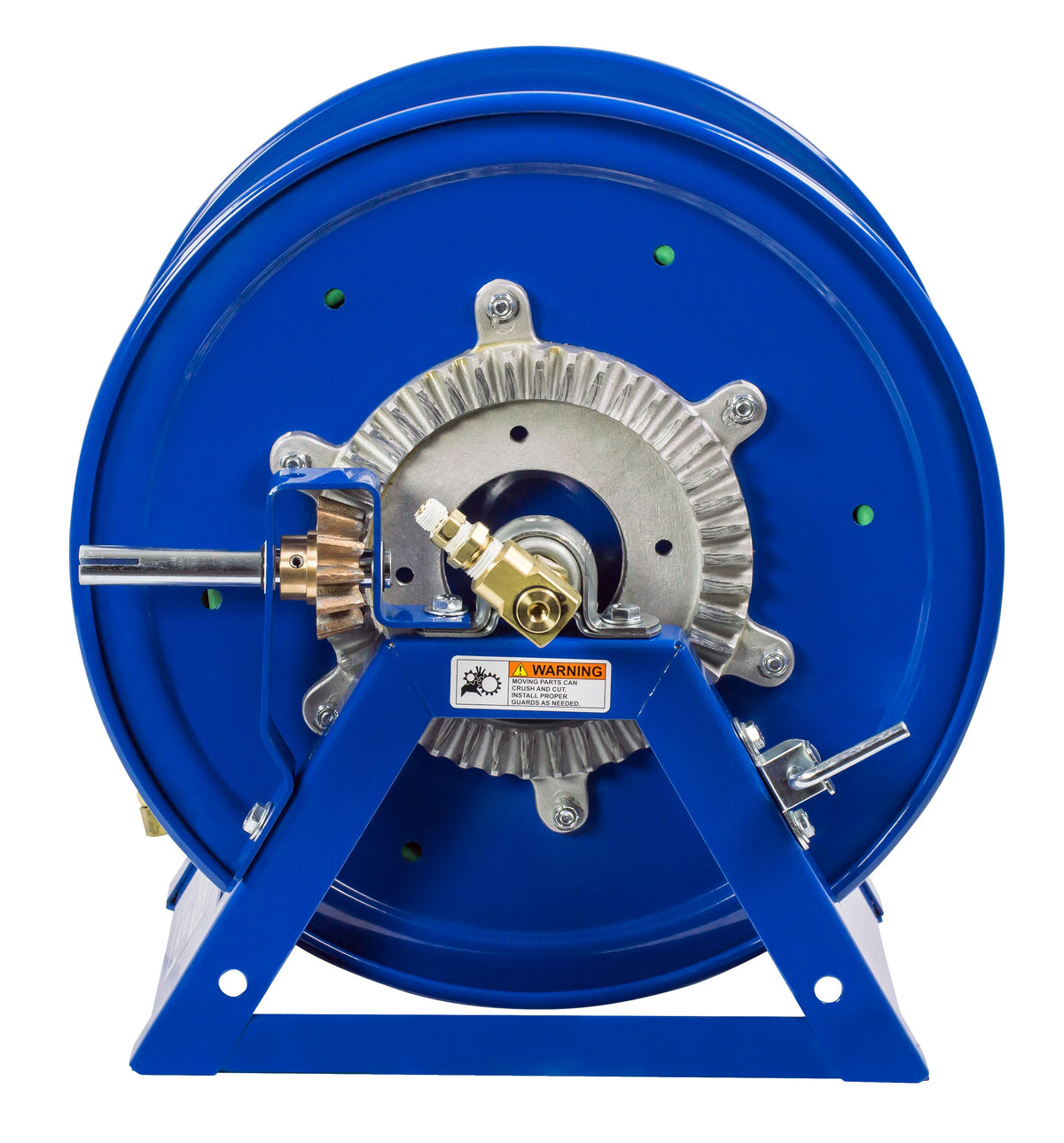

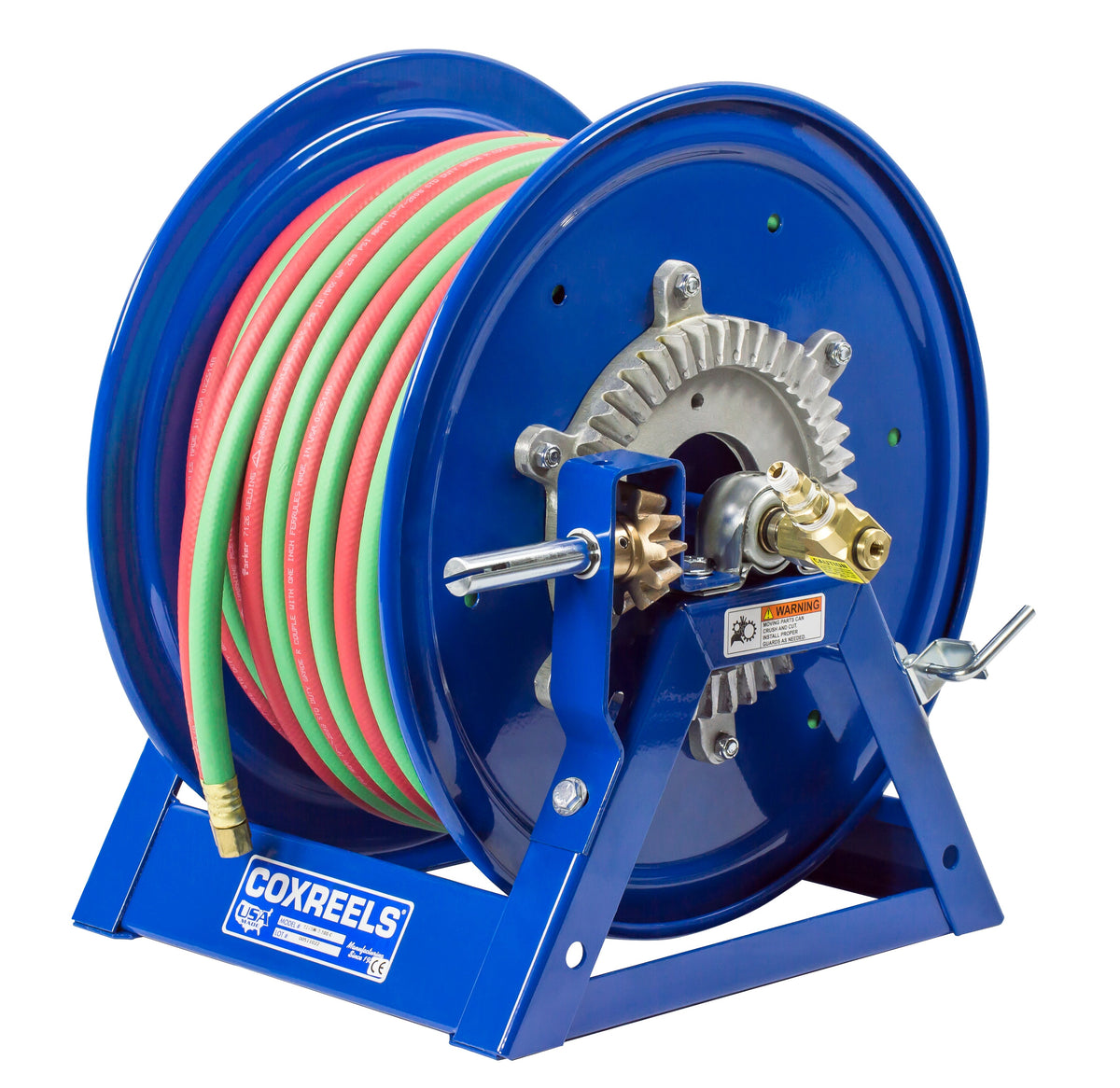

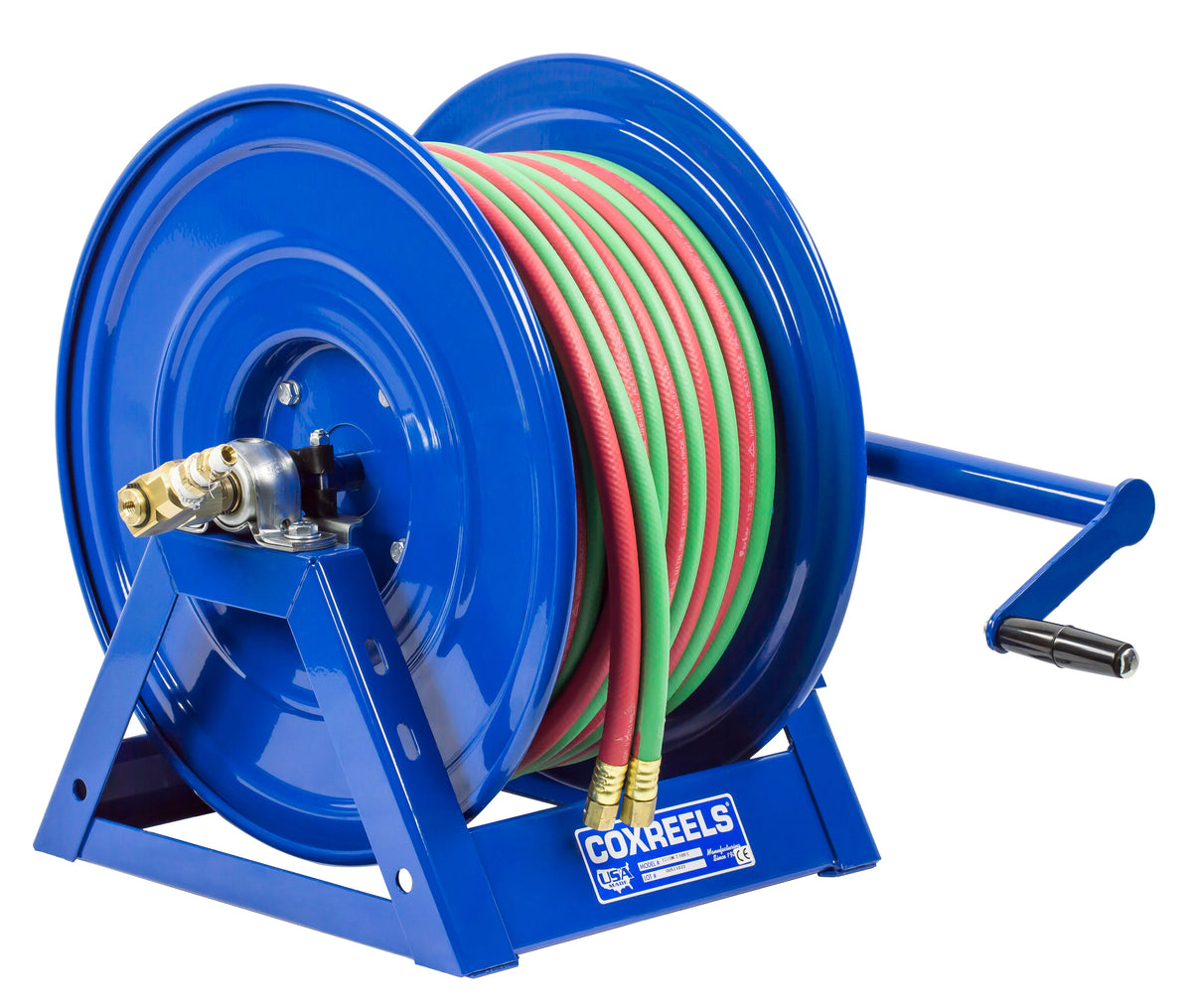

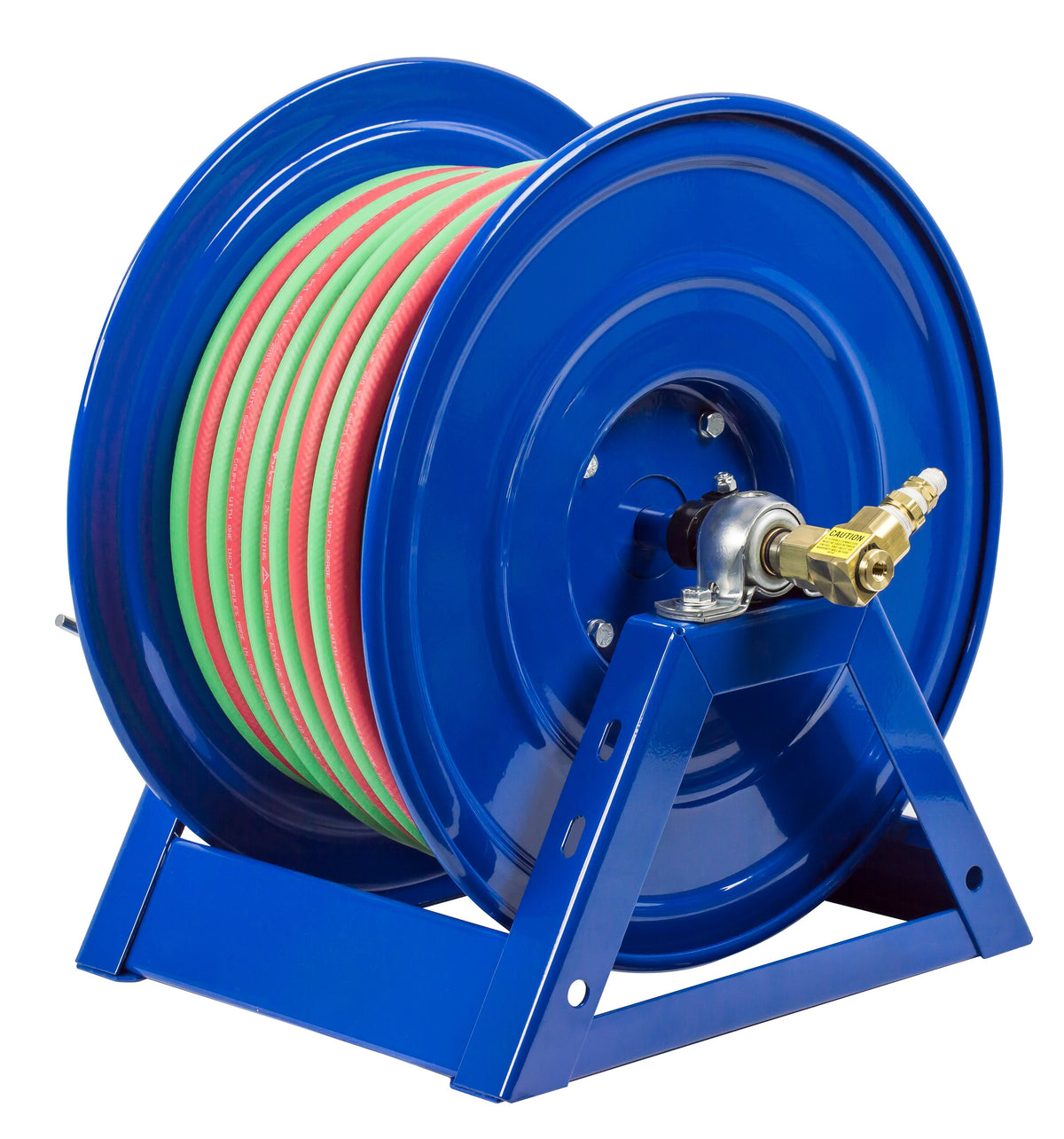

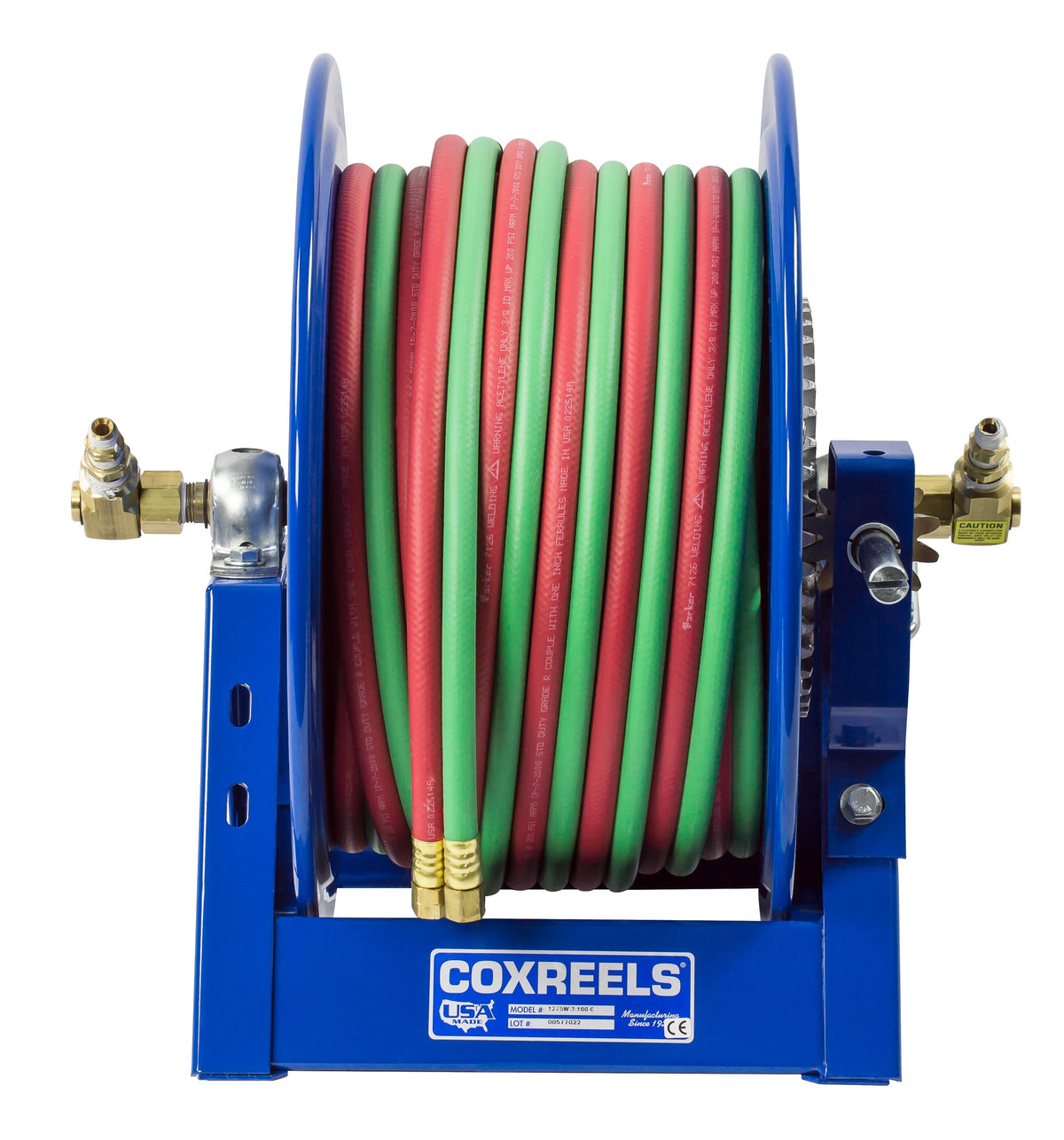

1275WT-3-250-C by Coxreels | 1275W Series | 200 PSI Dual Hose Hand Crank Hose Reel for Oxy-Fuel Welding (T-Grade) | 3/8" Hose ID, 3/8" FNPT Inlet x 3/8" MNPT Hose End | Steel | 250ft Neoprene Hose Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank hose reel
Coxreels 1275W Series Hand Crank Hose Reels
Steel A-frame hand crank hose reels for welding gas, rated to 200 PSI. Made in the U.S.A.
1
What is this product used for?
- Welding Gas
2
What are the key specifications?
Construction
Steel, A-frame
Swivel
Brass 90° full-flow with Viton seals
Inlet
3/8" FNPT
Max Temperature
250°F
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| EPDM | |||||
| 1275W-3-100-C | 3/8" | 100 ft | 200 | 8" | 18.875 × 18.625 × 17.625 |
| 1275W-3-150-C | 3/8" | 150 ft | 200 | 12" | 22.875 × 18.625 × 17.625 |
| 1275W-3-250-C | 3/8" | 250 ft | 200 | 18" | 28.875 × 18.625 × 17.625 |
| Less hose | |||||
| 1275WL-3-100-C | 3/8" | 100 ft | 200 | 8" | 18.875 × 18.625 × 17.625 |
| 1275WL-3-150-C | 3/8" | 150 ft | 200 | 12" | 22.875 × 18.625 × 17.625 |
| 1275WL-3-250-C | 3/8" | 250 ft | 200 | 18" | 28.875 × 18.625 × 17.625 |
| 1275WL-3-350-C | 3/8" | 350 ft | 200 | 24" | 34.875 × 18.625 × 17.625 |
| Neoprene | |||||
| 1275WT-3-100-C | 3/8" | 100 ft | 200 | 8" | 18.875 × 18.625 × 17.625 |
| 1275WT-3-150-C | 3/8" | 150 ft | 200 | 12" | 22.875 × 18.625 × 17.625 |
| 1275WT-3-250-C | 3/8" | 250 ft | 200 | 18" | 28.875 × 18.625 × 17.625 |
5
Which accessories are available?
Roller guides — by drum width:
| Accessory | 8" | 12" | 18" | 24" |
|---|---|---|---|---|
| 3-way roller bracket, bottom rewind | 15362-8 | 15362-12 | 15362-18 | 15362-24 |
| 3-way roller bracket, top rewind | 15359-8 | 15359-12 | 15359-18 | 15359-24 |
| 4-way roller bracket, bottom rewind | 15354-8 | 15354-12 | 15354-18 | 15354-24 |
| 4-way roller bracket, top payout, ceiling mount applications | 15358-8 | 15358-12 | 15358-18 | 15358-24 |
| 4-way roller bracket, top rewind | 15355-8 | 15355-12 | 15355-18 | 15355-24 |
| Part # | Accessory | Fits |
|---|---|---|
| Upgrades and service parts — fit every model | ||
| 20843 | Spring Loaded Lock Pin | |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BZXX is -GZXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZXX | Less swivel |
| 4-way roller position | |
| -BXCX / -BXCF | Top payout, on reel: bevel crank right / bevel crank left |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFF / -BXFX | Bottom payout, on reel: bevel crank right / bevel crank left |
| 3-way roller position | |
| -BXEX / -BXEF | Top payout, on reel: bevel crank right / bevel crank left |
| -BXHF / -BXHX | Bottom payout, on reel: bevel crank right / hand crank left |
| Swivel and motor/crank position | |
| -BXXX | Top payout bevel crank, swivel left, crank right |
| -BXAF | Top payout bevel crank, swivel right, crank left |
| -BXAF | Bottom payout bevel crank, swivel left, crank right |
| -BXXX | Bottom payout bevel crank, swivel right, crank left |
7
Where can I find product documents?
1275W Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
