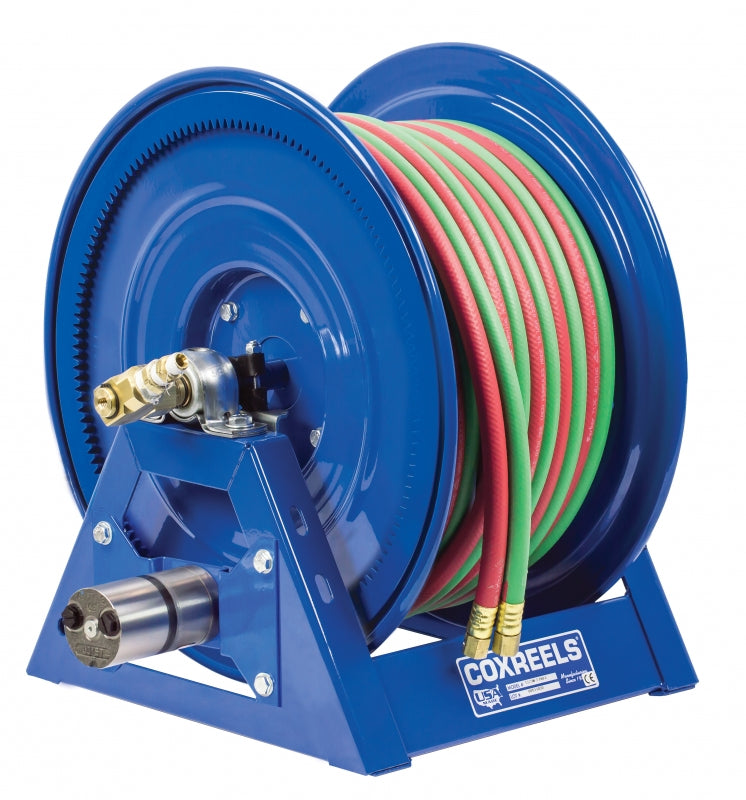

1275WL-3-350-A by Coxreels | 1275W Series | 200 PSI Motor Driven Hose Reel for Oxy-Fuel Welding (T-Grade) | #4 Gast Air Motor | 3/8" Hose ID, 3/8" FNPT Inlet | Steel | 350ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Motor driven hose reel
Coxreels 1275W Series Motor Driven Hose Reels
Steel A-frame motor driven hose reels for welding gas, rated to 200 PSI. Made in the U.S.A.
1
What is this product used for?
- Welding Gas
2
What are the key specifications?
Construction & Finish
Steel, A-frame
CPC™ powder coat
Swivel
Brass 90° full-flow with Viton seals
Inlet
3/8" FNPT
Max Temperature
250°F / 200°F depending on hose
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Mounting
Floor, Wall, Vehicle Mounting
3
What are the main product features?
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Base Model | Hose I.D. | Capacity | Max PSI | Hose | Drum Width | Available Motor Suffixes |
|---|---|---|---|---|---|---|
| 1275W-3-100 | 3/8" | 100 ft | 200 | EPDM | 8" | -A -H |
| 1275W-3-150 | 3/8" | 150 ft | 200 | EPDM | 12" | -A |
| 1275W-3-250 | 3/8" | 250 ft | 200 | EPDM | 18" | -A -H |
| 1275WL-3-100 | 3/8" | 100 ft | 200 | Less hose | 8" | -A |
| 1275WL-3-150 | 3/8" | 150 ft | 200 | Less hose | 12" | -A |
| 1275WL-3-250 | 3/8" | 250 ft | 200 | Less hose | 18" | -A |
| 1275WL-3-350 | 3/8" | 350 ft | 200 | Less hose | 24" | -A |
| 1275WT-3-100 | 3/8" | 100 ft | 200 | Neoprene | 8" | -A |
| 1275WT-3-150 | 3/8" | 150 ft | 200 | Neoprene | 12" | -A |
| 1275WT-3-250 | 3/8" | 250 ft | 200 | Neoprene | 18" | -A |
Part number = base model + motor suffix (e.g. 1275W-3-100-A). Suffix key:
| Suffix | Motor |
|---|---|
| -A | Air motor (#4 Gast) |
| -H | Hydraulic motor |
5
Which accessories are available?
Roller guides — by drum width:
| Accessory | 8" | 12" | 18" | 24" |
|---|---|---|---|---|
| 3-way roller bracket, bottom rewind | 15362-8 | 15362-12 | 15362-18 | 15362-24 |
| 3-way roller bracket, top rewind | 15359-8 | 15359-12 | 15359-18 | 15359-24 |
| 4-way roller bracket, bottom rewind | 15354-8 | 15354-12 | 15354-18 | 15354-24 |
| 4-way roller bracket, top payout, ceiling mount applications | 15358-8 | 15358-12 | 15358-18 | 15358-24 |
| 4-way roller bracket, top rewind | 15353-8 | 15353-12, 15355-12 | 15353-18 | 15355-24 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BZXX is -GZXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZXX | Less swivel |
| 4-way roller position | |
| -BXCF / -BXCG / -BXCX / -BXCD / -BXCX | Top payout, on reel: motorized right / offset motorized right-rear / motorized left / offset motorized left-front / hand crank right |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFX / -BXFD / -BXFF / -BXFG / -BXFX | Bottom payout, on reel: motorized right / offset motorized right-rear / motorized left / offset motorized left-front / hand crank left |
| 3-way roller position | |
| -BXEF / -BXEG / -BXEX / -BXED / -BXEX | Top payout, on reel: motorized right / offset motorized right-rear / motorized left / offset motorized left-front / hand crank right |
| -BXHX / -BXHD / -BXHF / -BXHG / -BXHX | Bottom payout, on reel: motorized right / offset motorized right-rear / motorized left / offset motorized left-front / hand crank left |
| Swivel and motor/crank position | |
| -BXXX | Top payout motorized standard, swivel left, motor left |
| -BXAF | Top payout motorized standard, swivel right, motor right |
| -BXXD | Top payout motorized offset motor, swivel left, motor left front |
| -BXAG | Top payout motorized offset motor, swivel right, motor right rear |
| -BXAF | Bottom payout motorized standard, swivel left, motor left |
| -BXXX | Bottom payout motorized standard, swivel right, motor right |
| -BXAG | Bottom payout motorized offset motor, swivel left, motor left front |
| -BXXD | Bottom payout motorized offset motor, swivel right, motor right rear |
7
Where can I find product documents?
1275W Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
