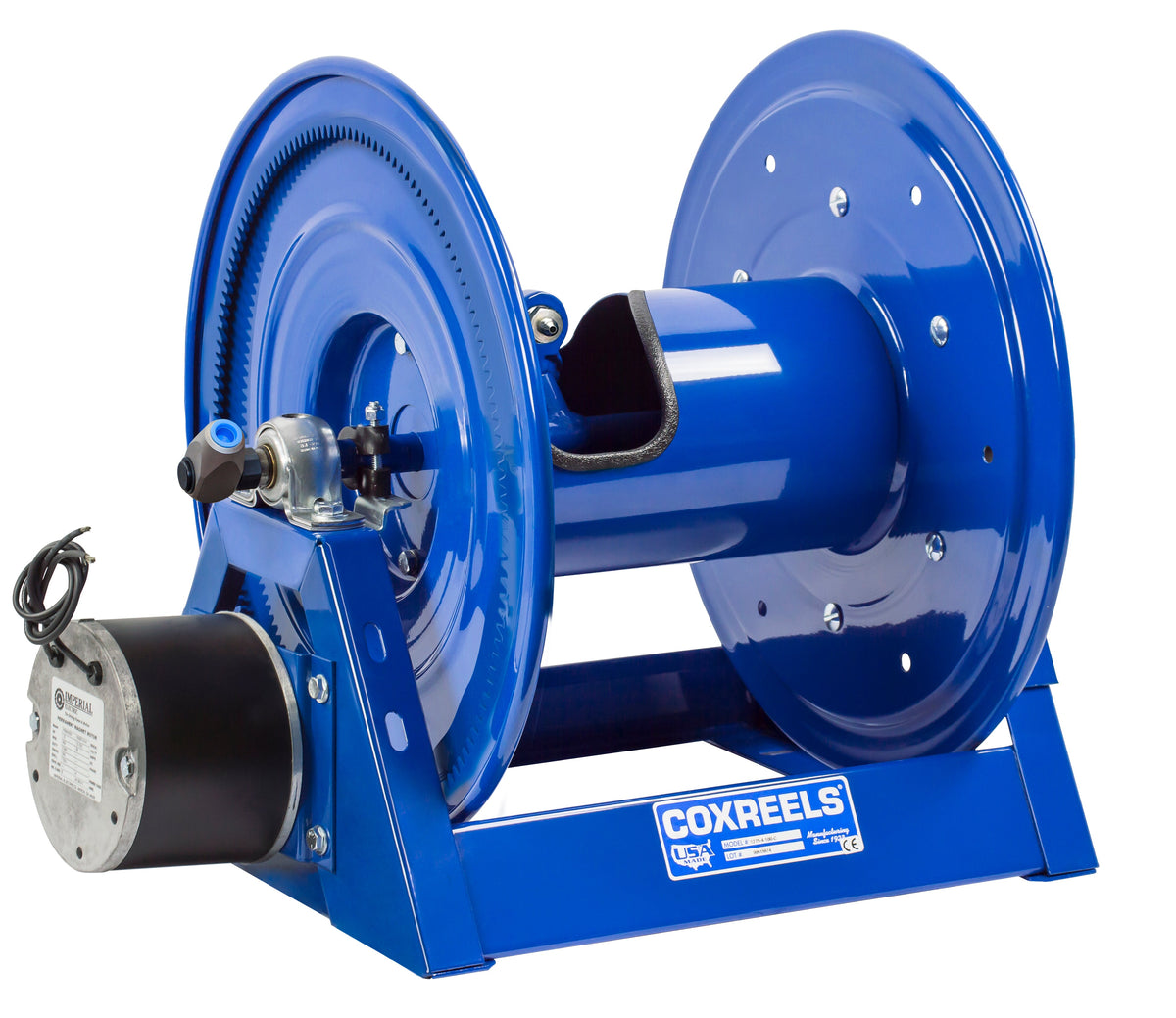

1275HPL-4-8-E by Coxreels | 1275HP Series | 10,000 PSI Dual Hose Motor Driven Hose Reel for Hydraulic Oil | 12V DC 1/3 HP Electric Motor | 1/4" Hose ID, 1/4" FNPT Inlet | Steel | 135ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Motor driven hose reel
Coxreels 1275HP Series Motor Driven Hose Reels
Steel A-frame motor driven hose reels for dual hydraulics, rescue and twin agent, rated to 10,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Dual Hydraulics
- Rescue
- Twin Agent
2
What are the key specifications?
Construction
Steel, A-frame
Swivel
Melanized Steel 90° full-flow with Viton seals
Inlet
1/4" FNPT
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Swivel — Two high pressure 90° full-flow melanized steel 1/4" swivel for dual hydraulic emergency rescue systems and other high pressure hydraulic tools.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Two exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Base Model | Hose I.D. | Capacity | Max PSI | Drum Width | Available Motor Suffixes |
|---|---|---|---|---|---|
| 1275HPL-4-8 | 1/4" | 135 ft | 10,000 | 8" | -A -E |
| 1275HPL-4-12 | 1/4" | 200 ft | 10,000 | 12" | -A -E |
| 1275HPL-A-8 | 1/4" | 135 ft | 10,000 | 8" | -E |
| 1275HPL-A-12 | 1/4" | 200 ft | 10,000 | 12" | -A |
| 1275HPL-B-8 | 1/4" | 135 ft | 10,000 | 8" | -A -E |
| 1275HPL-B-12 | 1/4" | 200 ft | 10,000 | 12" | -A |
| 1275HPL-C-8 | 1/4" | 135 ft | 10,000 | 8" | -E |
| 1275HPL-C-12 | 1/4" | 200 ft | 10,000 | 12" | -A |
| 1275HPL-D-12 | 1/4" | 200 ft | 10,000 | 12" | -A |
Part number = base model + motor suffix (e.g. 1275HPL-4-12-A). Suffix key:
| Suffix | Motor |
|---|---|
| -A | Air motor (#4 Gast) |
| -E | 12V DC, 1/3 HP electric motor |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides | ||
| 15362-8 | 3-way roller bracket, bottom rewind | Drum width 8" |
| 15362-12 | 3-way roller bracket, bottom rewind | Drum width 12" |
| 15359-8 | 3-way roller bracket, top rewind | Drum width 8" |
| 15359-12 | 3-way roller bracket, top rewind | Drum width 12" |
| 15354-8 | 4-way roller bracket, bottom rewind | Drum width 8" |
| 15354-12 | 4-way roller bracket, bottom rewind | Drum width 12" |
| 15358-8 | 4-way roller bracket, top payout, ceiling mount applications | Drum width 8" |
| 15358-12 | 4-way roller bracket, top payout, ceiling mount applications | Drum width 12" |
| 15353-8 | 4-way roller bracket, top rewind | Drum width 8" |
| 15353-12 | 4-way roller bracket, top rewind | Drum width 12" |
| Upgrades and service parts — fit every model | ||
| 20843 | Spring Loaded Lock Pin | |
| Motor controls | ||
| 20870, 20871, 20872 | 12 Volt DC Electric Motor Variable Speed Controller | -E models |
| 20878 | Circuit Breaker | -E models |
| 15212 | Control Valve for No. 4 Gast Air Motor | -A models |
| 20882 | Explosion Proof Stationary Push Button Switch | -E models |
| 20876 | Sealed Push Button Switch | -E models |
| 20877 | Solenoid Relay | -E models |
| 8281 | Switch Box | -E models |
| 20883 | Vapor Proof Junction Box | -E models |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| 4-way roller position | |
| -BXCF / -BXCG / -BXCX / -BXCD | Top payout, on reel: motorized right / offset motorized right-rear / motorized left / offset motorized left-front |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFX / -BXFD / -BXFF / -BXFG | Bottom payout, on reel: motorized right / offset motorized right-rear / motorized left / offset motorized left-front |
| 3-way roller position | |
| -BXEF / -BXEG / -BXEX / -BXED | Top payout, on reel: motorized right / offset motorized right-rear / motorized left / offset motorized left-front |
| -BXHX / -BXHD / -BXHF / -BXHG | Bottom payout, on reel: motorized right / offset motorized right-rear / motorized left / offset motorized left-front |
| Swivel and motor/crank position | |
| -BXXX | Top payout motorized standard, swivel left, motor left |
| -BXAF | Top payout motorized standard, swivel right, motor right |
| -BXXD | Top payout motorized offset motor, swivel left, motor left front |
| -BXAG | Top payout motorized offset motor, swivel right, motor right rear |
| -BXAF | Bottom payout motorized standard, swivel left, motor left |
| -BXXX | Bottom payout motorized standard, swivel right, motor right |
| -BXAG | Bottom payout motorized offset motor, swivel left, motor left front |
| -BXXD | Bottom payout motorized offset motor, swivel right, motor right rear |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
