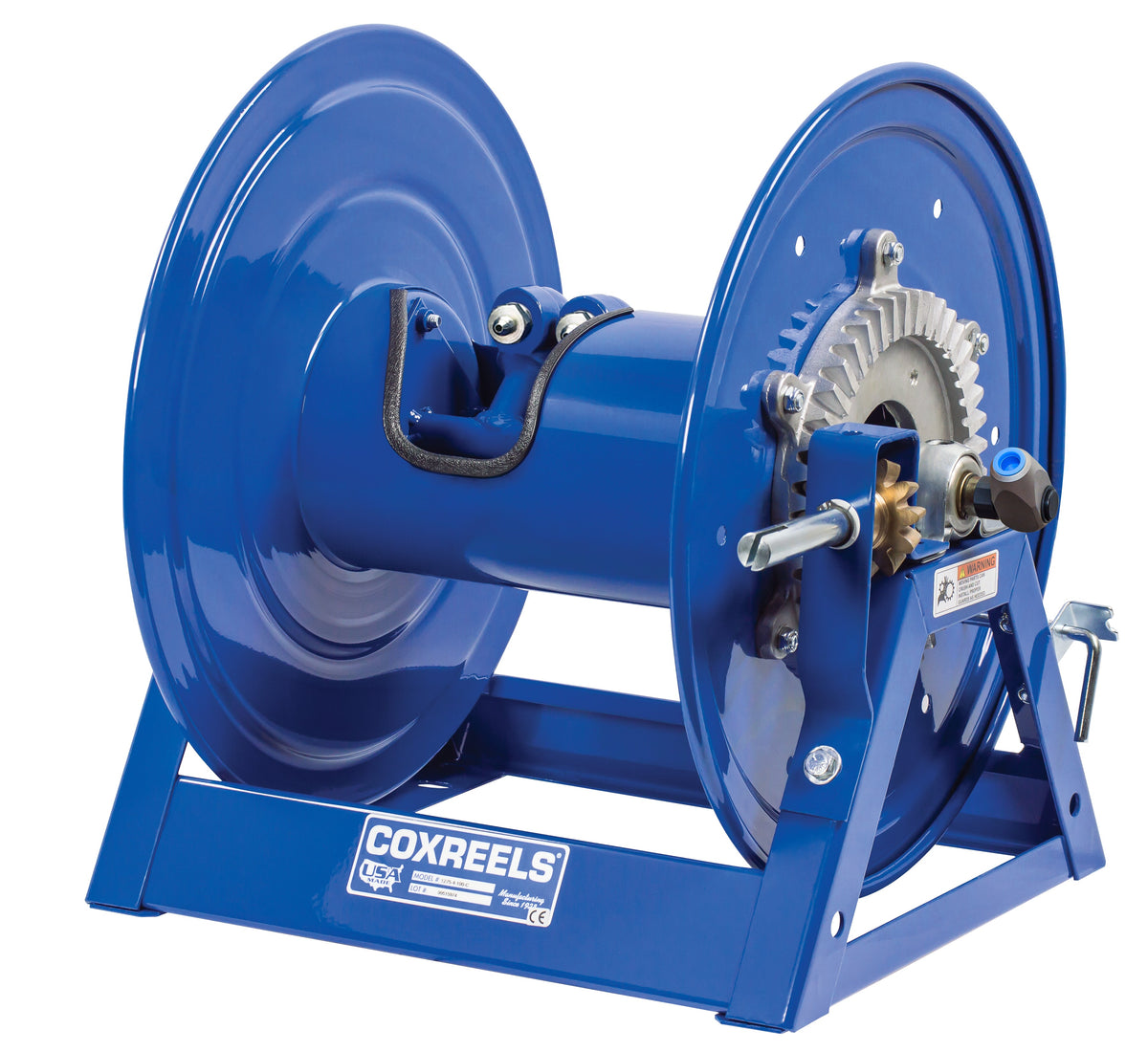

1275HPL-4-8 by Coxreels | 1275HP Series | 10,000 PSI Dual Hose Hand Crank Hose Reel for Hydraulic Oil | 1/4" Hose ID, 1/4" FNPT Inlet | Steel | 135ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank hose reel
Coxreels 1275HP Series Hand Crank Hose Reels
Steel A-frame hand crank hose reels for dual hydraulics, rescue and twin agent, rated to 10,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Dual Hydraulics
- Rescue
- Twin Agent
2
What are the key specifications?
Construction
Steel, A-frame
Swivel
Melanized Steel 90° full-flow with Viton seals
Inlet
1/4" FNPT
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Swivel — Two high pressure 90° full-flow melanized steel 1/4" swivel for dual hydraulic emergency rescue systems and other high pressure hydraulic tools.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Two exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| 1275HPL-4-8 | 1/4" | 135 ft | 10,000 | 8" | 17.5 × 18.625 × 17.625 |
| 1275HPL-4-8-C | 1/4" | 135 ft | 10,000 | 8" | 17.5 × 18.625 × 17.625 |
| 1275HPL-4-12 | 1/4" | 200 ft | 10,000 | 12" | 21.5 × 18.625 × 17.625 |
| 1275HPL-4-12-C | 1/4" | 200 ft | 10,000 | 12" | 21.5 × 18.625 × 17.625 |
| 1275HPL-A-8 | 1/4" | 135 ft | 10,000 | 8" | 17.5 × 18.625 × 17.625 |
| 1275HPL-A-8-C | 1/4" | 135 ft | 10,000 | 8" | 17.5 × 18.625 × 17.625 |
| 1275HPL-A-12 | 1/4" | 200 ft | 10,000 | 12" | 21.5 × 18.625 × 17.625 |
| 1275HPL-B-8 | 1/4" | 135 ft | 10,000 | 8" | 17.5 × 18.625 × 17.625 |
| 1275HPL-B-8-C | 1/4" | 135 ft | 10,000 | 8" | 17.5 × 18.625 × 17.625 |
| 1275HPL-C-8 | 1/4" | 135 ft | 10,000 | 8" | 17.5 × 18.625 × 17.625 |
| 1275HPL-C-8-C | 1/4" | 135 ft | 10,000 | 8" | 17.5 × 18.625 × 17.625 |
| 1275HPL-C-12 | 1/4" | 200 ft | 10,000 | 12" | 21.5 × 18.625 × 17.625 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides | ||
| 15362-8 | 3-way roller bracket, bottom rewind | Drum width 8" |
| 15362-12 | 3-way roller bracket, bottom rewind | Drum width 12" |
| 15359-8 | 3-way roller bracket, top rewind | Drum width 8" |
| 15359-12 | 3-way roller bracket, top rewind | Drum width 12" |
| 15354-8 | 4-way roller bracket, bottom rewind | Drum width 8" |
| 15354-12 | 4-way roller bracket, bottom rewind | Drum width 12" |
| 15358-8 | 4-way roller bracket, top payout, ceiling mount applications | Drum width 8" |
| 15358-12 | 4-way roller bracket, top payout, ceiling mount applications | Drum width 12" |
| 15353-8 | 4-way roller bracket, top rewind | 1275HPL-4/A/B/C-8 |
| 15353-12 | 4-way roller bracket, top rewind | 1275HPL-4/A/C-12 |
| 15355-8 | 4-way roller bracket, top rewind | 1275HPL-4/A/B/C-8-C |
| 15355-12 | 4-way roller bracket, top rewind | 1275HPL-4-12-C |
| Upgrades and service parts — fit every model | ||
| 20843 | Spring Loaded Lock Pin | |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| 4-way roller position | |
| -BXCX / -BXCF / -BXCX | Top payout, on reel: bevel crank right / bevel crank left / hand crank right |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFF / -BXFX / -BXFX | Bottom payout, on reel: bevel crank right / bevel crank left / hand crank left |
| 3-way roller position | |
| -BXEX / -BXEF / -BXEX | Top payout, on reel: bevel crank right / bevel crank left / hand crank right |
| -BXHF / -BXHX / -BXHX | Bottom payout, on reel: bevel crank right / bevel crank left / hand crank left |
| Swivel and motor/crank position | |
| -BXXX | Top payout bevel crank, swivel left, crank right |
| -BXAF | Top payout bevel crank, swivel right, crank left |
| -BXAF | Bottom payout bevel crank, swivel left, crank right |
| -BXXX | Bottom payout bevel crank, swivel right, crank left |
| -BXAG | Bottom payout motorized offset motor, swivel left, motor left front |
| -BXXD | Bottom payout motorized offset motor, swivel right, motor right rear |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
