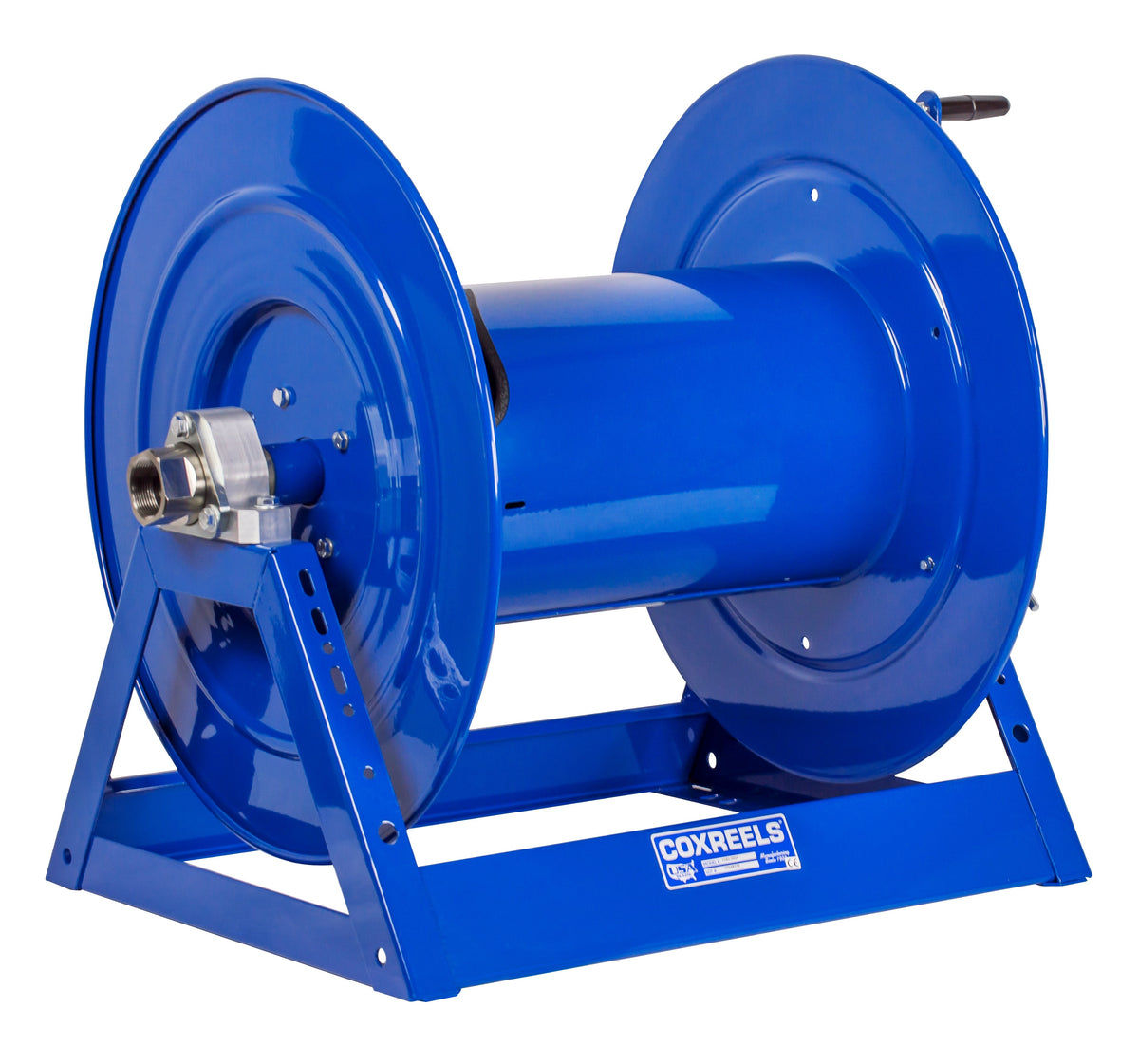

1185-3328-C by Coxreels | 1185 Series | 1,500 PSI Hand Crank Hose Reel | 1-1/2" Hose ID, 1-1/2" FNPT Inlet | Steel | 250ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank hose reel
Coxreels 1185 Series Hand Crank Hose Reels
Steel A-frame hand crank hose reels for water, oil and lubrication, fuel delivery, fire booster hose and high-flow watering, rated to 1,500 PSI. Made in the U.S.A.
1
What is this product used for?
- Water
- Oil & Lubrication
- Fuel Delivery
- Fire Booster Hose
- High-Flow Watering
- Chemical Fluid Transfer
- High Volume Delivery
- Bulk Liquid Handling
2
What are the key specifications?
Construction
Steel, A-frame
Swivel
Electroless Nickel Plated Steel 90° full-flow
Inlet
1-1/2" FNPT
Max Temperature
225°F / 250°F depending on hose
Bearings
Lubricated Horizontal Surface Mount Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Swivel — In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 1/4" steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanent Lubricated Bearings — Robust lubricated horizontal surface mount bearings for easy rotation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| 1185-1124 | 1-1/2" | 50 ft | 1,500 | 11.5" | 25 × 26 × 24 |
| 1185-1124-C | 1-1/2" | 50 ft | 1,500 | 11.5" | 25 × 26 × 24 |
| 1185-1524 | 1-1/2" | 75 ft | 1,500 | 15.5" | 29 × 26 × 24 |
| 1185-1524-C | 1-1/2" | 75 ft | 1,500 | 15.5" | 29 × 26 × 24 |
| 1185-2020 | 1-1/2" | 70 ft | 1,500 | 11.5" | 33.5 × 21.625 × 20 |
| 1185-2020-C | 1-1/2" | 70 ft | 1,500 | 11.5" | 33.5 × 21.625 × 20 |
| 1185-2024 | 1-1/2" | 100 ft | 1,500 | 20" | 33.5 × 26 × 24 |
| 1185-2024-C | 1-1/2" | 100 ft | 1,500 | 20" | 33.5 × 26 × 24 |
| 1185-2028 | 1-1/2" | 125 ft | 1,500 | 20" | 33.5 × 30 × 28 |
| 1185-2028-C | 1-1/2" | 125 ft | 1,500 | 20" | 33.5 × 30 × 28 |
| 1185-2528 | 1-1/2" | 150 ft | 1,500 | 25" | 38.5 × 30 × 28 |
| 1185-2528-C | 1-1/2" | 150 ft | 1,500 | 25" | 38.5 × 30 × 28 |
| 1185-3324 | 1-1/2" | 175 ft | 1,500 | 33" | 46.5 × 26 × 24 |
| 1185-3324-C | 1-1/2" | 175 ft | 1,500 | 33" | 46.5 × 26 × 24 |
| 1185-3328 | 1-1/2" | 250 ft | 1,500 | 33" | 46.5 × 30 × 28 |
| 1185-3328-C | 1-1/2" | 250 ft | 1,500 | 33" | 46.5 × 30 × 28 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides | ||
| 15363-11.5 | 3-way roller bracket, bottom rewind | 1185-1124 |
| 15363-15.5 | 3-way roller bracket, bottom rewind | 1185-1524 |
| 15363-20 | 3-way roller bracket, bottom rewind | 1185-2020/2024/2028 |
| 15363-25 | 3-way roller bracket, bottom rewind | 1185-2528 |
| 15363-33 | 3-way roller bracket, bottom rewind | 1185-3324/3328 |
| 15360-11.5 | 3-way roller bracket, top rewind | 1185-1124 |
| 15360-15.5 | 3-way roller bracket, top rewind | 1185-1524 |
| 15360-20 | 3-way roller bracket, top rewind | 1185-2020/2024/2028 |
| 15360-25 | 3-way roller bracket, top rewind | 1185-2528 |
| 15360-33 | 3-way roller bracket, top rewind | 1185-3324/3328 |
| 15370-1-11.5 | 4-way roller bracket, bottom rewind | Capacity 50 ft |
| 15370-1-15.5 | 4-way roller bracket, bottom rewind | Drum width 15.5" |
| 15370-1-20 | 4-way roller bracket, bottom rewind | 1185-2024-C; 1185-2024/2028 |
| 15370-1-25 | 4-way roller bracket, bottom rewind | 1185-2528 |
| 15370-1-33 | 4-way roller bracket, bottom rewind | 1185-3324-C; 1185-3324/3328 |
| 15369-1-20 | 4-way roller bracket, top rewind | Capacity 125 ft |
| 15369-1-25 | 4-way roller bracket, top rewind | Drum width 25" |
| 15369-1-33 | 4-way roller bracket, top rewind | Capacity 250 ft |
| 15369-11.5 | 4-way roller bracket, top rewind | Capacity 50 ft |
| 15369-15.5 | 4-way roller bracket, top rewind | Drum width 15.5" |
| 15369-20 | 4-way roller bracket, top rewind | Capacity 100 ft |
| 15369-33 | 4-way roller bracket, top rewind | Capacity 175 ft |
Hose guides — by drum width:
| Part # | Accessory | Fits |
|---|---|---|
| Hose guides | ||
| 15728-11.5 | Pivoting Hose Guide HD - Bottom Return | Capacity 50 ft |
| 15728-15.5 | Pivoting Hose Guide HD - Bottom Return | Capacity 70 ft, 75 ft |
| 15730-11.5 | Pivoting Hose Guide HD - Top Return | Capacity 50 ft |
| 15730-15.5 | Pivoting Hose Guide HD - Top Return | Capacity 70 ft, 75 ft |
| Upgrades and service parts | ||
| 8176-1 | Gear Guards (for motor driven only) | 1185-1524; 1185-1124/1524/2020/2024/2028/2528/3324/3328-C |
| HSRK-125, HSRK-150 | Hose Strain Relief Kit | Every model |
| 20843 | Spring Loaded Lock Pin | Every model |
| Carts | ||
| PRP-1175-11 | Portable Cart - (w/ 8" semi-pneumatic tires) | 1185-1124 |
| PRP-1175-15 | Portable Cart - (w/ 8" semi-pneumatic tires) | 1185-1524 |
| PR-1175-11 | Portable Cart - (w/ Solid 8" rubber tires) | 1185-1124 |
| PR-1175-15 | Portable Cart - (w/ Solid 8" rubber tires) | 1185-1524 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| -ZXXX | Galvanized |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BUXX | Standard plumbing & 90° ball bearing swivel with Aflas |
| -BWXX | Standard plumbing & 90° ball bearing swivel with Viton |
| -BRXX | Stainless steel plumbing & SS 90° ball bearing swivel with Aflas (304SS) |
| -BSXX | Stainless steel plumbing & SS 90° ball bearing swivel with Viton (304SS) |
| -BTXX | Stainless steel plumbing & SS 90° ball bearing swivel with food grade (304SS) |
| -BZXX | Less swivel |
| -BAXX / -BBXX / -BCXX / -BDXX | Stainless steel plumbing & swivel: standard seal / with Viton / with EPR / with food grade |
| -BJXX / -BKXX | Standard plumbing & 90˚ stainless steel swivel: Aflas / Viton |
| -BQXX | Stainless steel plumbing, less swivel |
| -BYXX | Less swivel, no riser, storage |
| 4-way roller position | |
| -BUCX/-BXCX / -BUCA/-BXCA / -BXCA / -BXCX | Top payout, on reel: hand crank right / hand crank left / bevel crank right / bevel crank left |
| -BUFI/-BXFI / -BUFX/-BXFX / -BXFI / -BXFX | Bottom payout, on reel: hand crank right / hand crank left / bevel crank right / bevel crank left |
| 3-way roller position | |
| -BUEX/-BXEX / -BUEA/-BXEA | Top payout, on reel: hand crank right / hand crank left |
| -BUHI/-BXHI / -BUHX/-BXHX | Bottom payout, on reel: hand crank right / hand crank left |
| Swivel and motor/crank position | |
| -BUXX / -BXXX | Top payout hand crank, swivel left, crank right |
| -BUAI / -BXAI | Top payout hand crank, swivel right, crank left |
| -BUAI / -BXAI | Bottom payout hand crank, swivel left, crank right |
| -BUXX / -BXXX | Bottom payout hand crank, swivel right, crank left |
| -BXXX | Top payout bevel crank, swivel left, crank right |
| -BXXA | Top payout bevel crank, swivel right, crank left |
| -BXAF | Bottom payout bevel crank, swivel right, crank left |
| -BXAI | Bottom payout motorized standard, swivel left, motor left |
7
Where can I find product documents?
1185 Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
