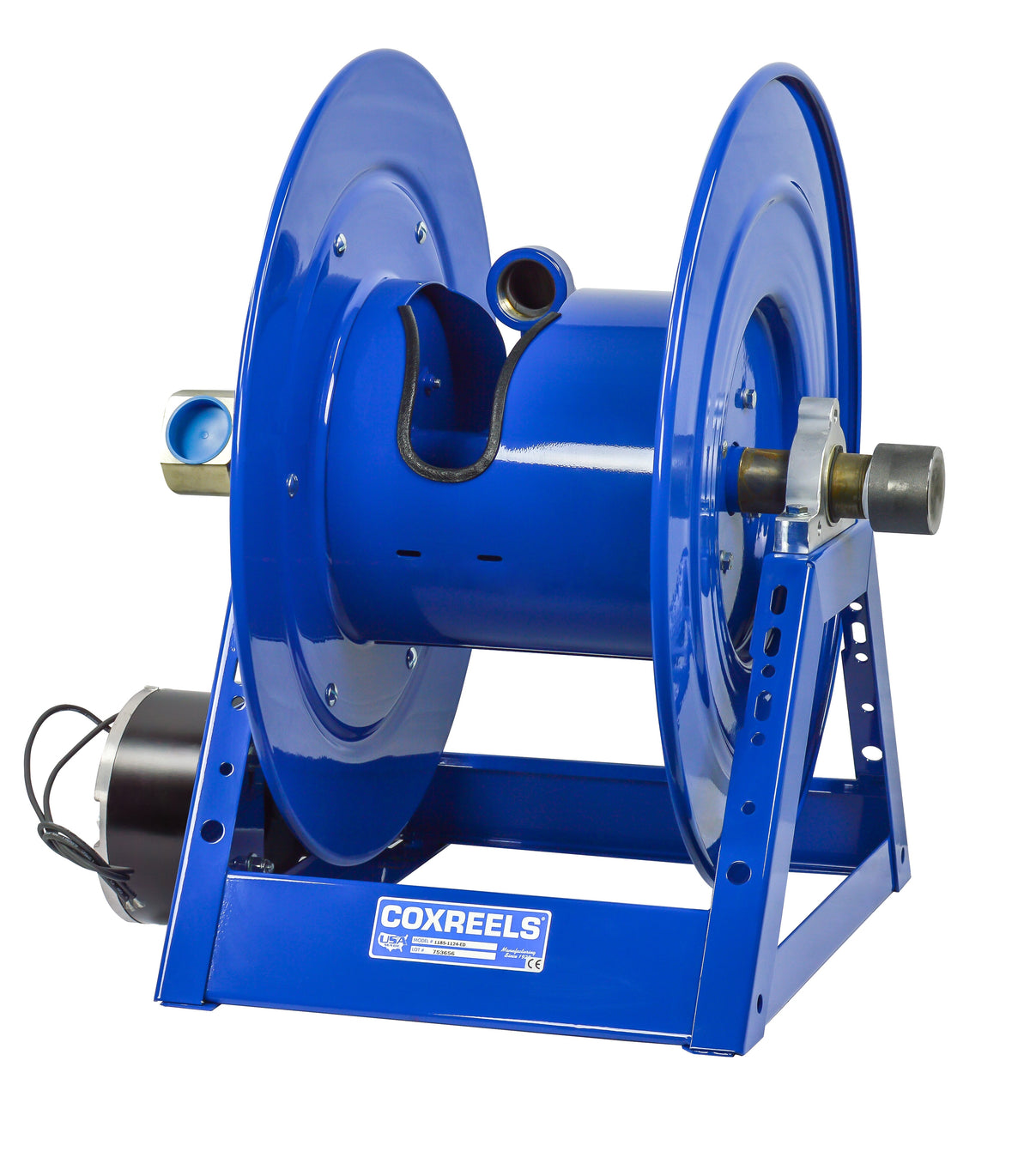

1185-2024-E-BUXX by Coxreels | 1185-BUXX Series | 3,000 PSI Motor Driven Hose Reel | 12V DC 1/3 HP Electric Motor | 1-1/2" Hose ID, 1-1/2" FNPT Inlet | Steel | 100ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Motor driven hose reel
Coxreels 1185-BUXX Series Motor Driven Hose Reels
Steel A-frame motor driven hose reels for water, oil and lubrication, fire booster hose, high-flow watering and chemical fluid transfer, rated to 3,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Water
- Oil & Lubrication
- Fire Booster Hose
- High-Flow Watering
- Chemical Fluid Transfer
- High Volume Delivery
- Bulk Liquid Handling
2
What are the key specifications?
Construction
Steel, A-frame
Swivel
Electroless Nickel Plated Steel 90° full-flow with AFLAS seals
Inlet
1-1/2" FNPT
Max Temperature
250°F
Bearings
Lubricated Horizontal Surface Mount Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Swivel — Electroless nickel plated steel 90˚ full-flow NPT swivel with ball bearings for fast and easy hose installation. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanent Lubricated Bearings — Robust lubricated horizontal surface mount bearings for easy rotation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Motor | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|---|
| 1185-1124-AB-BUXX | 1-1/2" | 50 ft | 3,000 | Air motor (#6 Gast) | 11.5" | 26.875 × 26 × 24 |
| 1185-1124-EB-BUXX | 1-1/2" | 50 ft | 3,000 | 24V DC, 1/2 HP, explosion proof electric motor | 11.5" | 26.875 × 26 × 24 |
| 1185-1124-ED-BUXX | 1-1/2" | 50 ft | 3,000 | 12V DC, 1/2 HP, explosion proof electric motor | 11.5" | 26.125 × 26 × 24 |
| 1185-1524-A-BUXX | 1-1/2" | 75 ft | 3,000 | Air motor (#4 Gast) | 15.5" | 30.875 × 26 × 24 |
| 1185-1524-EA-BUXX | 1-1/2" | 75 ft | 3,000 | 115V AC, 1/2 HP, explosion proof electric motor | 15.5" | 30.875 × 26 × 24 |
| 1185-1524-ED-BUXX | 1-1/2" | 75 ft | 3,000 | 12V DC, 1/2 HP, explosion proof electric motor | 15.5" | 30.875 × 26 × 24 |
| 1185-1524-EF-BUXX | 1-1/2" | 75 ft | 3,000 | 24V DC, 1/3 HP electric motor | 15.5" | 30.875 × 26 × 24 |
| 1185-2020-E-BUXX | 1-1/2" | 70 ft | 3,000 | 12V DC, 1/3 HP electric motor | 11.5" | 35.375 × 21.625 × 20 |
| 1185-2024-AB-BUXX | 1-1/2" | 100 ft | 3,000 | Air motor (#6 Gast) | 20" | 35.375 × 26 × 24 |
| 1185-2024-E-BUXX | 1-1/2" | 100 ft | 3,000 | 12V DC, 1/3 HP electric motor | 20" | 35.375 × 26 × 24 |
| 1185-2024-EA-BUXX | 1-1/2" | 100 ft | 3,000 | 115V AC, 1/2 HP, explosion proof electric motor | 20" | 35.375 × 26 × 24 |
| 1185-2024-ED-BUXX | 1-1/2" | 100 ft | 3,000 | 12V DC, 1/2 HP, explosion proof electric motor | 20" | 35.375 × 26 × 24 |
| 1185-2024-H-BUXX | 1-1/2" | 100 ft | 3,000 | Hydraulic motor | 20" | 35.375 × 26 × 24 |
| 1185-2028-AB-BUXX | 1-1/2" | 125 ft | 3,000 | Air motor (#6 Gast) | 20" | 35.375 × 30 × 28 |
| 1185-2028-ED-BUXX | 1-1/2" | 125 ft | 3,000 | 12V DC, 1/2 HP, explosion proof electric motor | 20" | 35.375 × 30 × 28 |
| 1185-2528-E-BUXX | 1-1/2" | 150 ft | 3,000 | 12V DC, 1/3 HP electric motor | 25" | 40.375 × 30 × 28 |
| 1185-2528-ED-BUXX | 1-1/2" | 150 ft | 3,000 | 12V DC, 1/2 HP, explosion proof electric motor | 25" | 40.375 × 30 × 28 |
| 1185-3324-E-BUXX | 1-1/2" | 175 ft | 3,000 | 12V DC, 1/3 HP electric motor | 33" | 48.375 × 26 × 24 |
| 1185-3324-EA-BUXX | 1-1/2" | 175 ft | 3,000 | 115V AC, 1/2 HP, explosion proof electric motor | 33" | 48.375 × 26 × 24 |
| 1185-3328-E-BUXX | 1-1/2" | 250 ft | 3,000 | 12V DC, 1/3 HP electric motor | 33" | 48.375 × 30 × 28 |
| 1185-3328-ED-BUXX | 1-1/2" | 250 ft | 3,000 | 12V DC, 1/2 HP, explosion proof electric motor | 33" | 48.375 × 30 × 28 |
| 1185-3328-EJ-BUXX | 1-1/2" | 250 ft | 3,000 | 230V AC, 1/2 HP, explosion proof electric motor | 33" | 48.375 × 30 × 28 |
| 1185-3328-H-BUXX | 1-1/2" | 250 ft | 3,000 | Hydraulic motor | 33" | 48.375 × 30 × 28 |
5
Which accessories are available?
Roller guides — by drum width:
| Accessory | 15.5" | 20" | 25" | 33" |
|---|---|---|---|---|
| 3-way roller bracket, bottom rewind | — | 15363-20 | 15363-25 | 15363-33 |
| 3-way roller bracket, top rewind | — | 15360-20 | 15360-25 | 15360-33 |
| 4-way roller bracket, bottom rewind | 15370-1-15.5 | 15370-1-20 | 15370-1-25 | 15370-1-33 |
| 4-way roller bracket, top rewind | 15369-15.5 | 15369-1-20, 15369-20 | 15369-1-25 | 15369-1-33, 15369-33 |
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides | ||
| 15363-11.5 | 3-way roller bracket, bottom rewind | Capacity 50 ft |
| 15363-15.5 | 3-way roller bracket, bottom rewind | Capacity 70 ft, 75 ft |
| 15360-11.5 | 3-way roller bracket, top rewind | Capacity 50 ft |
| 15360-15.5 | 3-way roller bracket, top rewind | Capacity 70 ft, 75 ft |
| 15370-1-11.5 | 4-way roller bracket, bottom rewind | Capacity 50 ft |
| 15369-11.5 | 4-way roller bracket, top rewind | Capacity 50 ft |
Hose guides — by drum width:
| Part # | Accessory | Fits |
|---|---|---|
| Hose guides | ||
| 15728-11.5 | Pivoting Hose Guide HD - Bottom Return | Capacity 50 ft |
| 15728-15.5 | Pivoting Hose Guide HD - Bottom Return | Capacity 70 ft, 75 ft |
| 15730-11.5 | Pivoting Hose Guide HD - Top Return | Capacity 50 ft |
| 15730-15.5 | Pivoting Hose Guide HD - Top Return | Capacity 70 ft, 75 ft |
| Upgrades and service parts — fit every model | ||
| 8176-1 | Gear Guards (for motor driven only) | |
| 8302-1 | Heavy Duty Band Brake | |
| 20843 | Spring Loaded Lock Pin | |
| Motor controls | ||
| 20873, 20874, 20875 | 115/230 AC/Volt Variable Speed Controller | 1185-1524-EA-BUXX |
| 20870, 20871, 20872 | 12 Volt DC Electric Motor Variable Speed Controller | 1185-1524/2028/3328-ED-BUXX; 1185-2528/3328-E-BUXX |
| 20878 | Circuit Breaker | 1185-1524/2028/3328-ED-BUXX; 1185-2528/3328-E-BUXX |
| 15212 | Control Valve for No. 4 Gast Air Motor | Motor suffix -A |
| 15212-1 | Control Valve for No. 6 Gast Air Motor | 1185-2024-AB-BUXX |
| 20882 | Explosion Proof Stationary Push Button Switch | 1185-2528/3328-E-BUXX |
| 15210 | General Purpose Reversing Switch | 1185-1524-EA-BUXX |
| 20876 | Sealed Push Button Switch | 1185-1524-EA-BUXX; 1185-1524/2028/3328-ED-BUXX; 1185-1524-EF-BUXX; 1185-2528/3328-E-BUXX |
| 20877 | Solenoid Relay | 1185-1524/2028/3328-ED-BUXX; 1185-2528/3328-E-BUXX |
| 8281 | Switch Box | 1185-1524/2028/3328-ED-BUXX; 1185-2528/3328-E-BUXX |
| 20883 | Vapor Proof Junction Box | 1185-1524-EA-BUXX; 1185-1524/2028/3328-ED-BUXX; 1185-1524-EF-BUXX; 1185-2528/3328-E-BUXX |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| -ZXXX | Galvanized |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BUXX | Standard plumbing & 90° ball bearing swivel with Aflas |
| -BWXX | Standard plumbing & 90° ball bearing swivel with Viton |
| -BRXX | Stainless steel plumbing & SS 90° ball bearing swivel with Aflas (304SS) |
| -BSXX | Stainless steel plumbing & SS 90° ball bearing swivel with Viton (304SS) |
| -BTXX | Stainless steel plumbing & SS 90° ball bearing swivel with food grade (304SS) |
| -BZXX | Less swivel |
| -BAXX / -BBXX / -BCXX / -BDXX | Stainless steel plumbing & swivel: standard seal / with Viton / with EPR / with food grade |
| -BJXX / -BKXX | Standard plumbing & 90˚ stainless steel swivel: Aflas / Viton |
| -BQXX | Stainless steel plumbing, less swivel |
| -BYXX | Less swivel, no riser, storage |
| 4-way roller position | |
| -BUCA/-BXCA / -BUCX/-BXCX | Top payout, on reel: motorized right / motorized left |
| -BUFX/-BXFX / -BUFI/-BXFI | Bottom payout, on reel: motorized right / motorized left |
| 3-way roller position | |
| -BUEA/-BXEA / -BUEX/-BXEX | Top payout, on reel: motorized right / motorized left |
| -BUHX/-BXHX / -BUHI/-BXHI | Bottom payout, on reel: motorized right / motorized left |
| Swivel and motor/crank position | |
| -BUXX / -BXXX | Top payout motorized standard, swivel left, motor left |
| -BUAI / -BXAI | Top payout motorized standard, swivel right, motor right |
| -BUAI / -BXAI | Bottom payout motorized standard, swivel left, motor left |
| -BUXX / -BXXX | Bottom payout motorized standard, swivel right, motor right |
7
Where can I find product documents?
1185-BUXX Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
