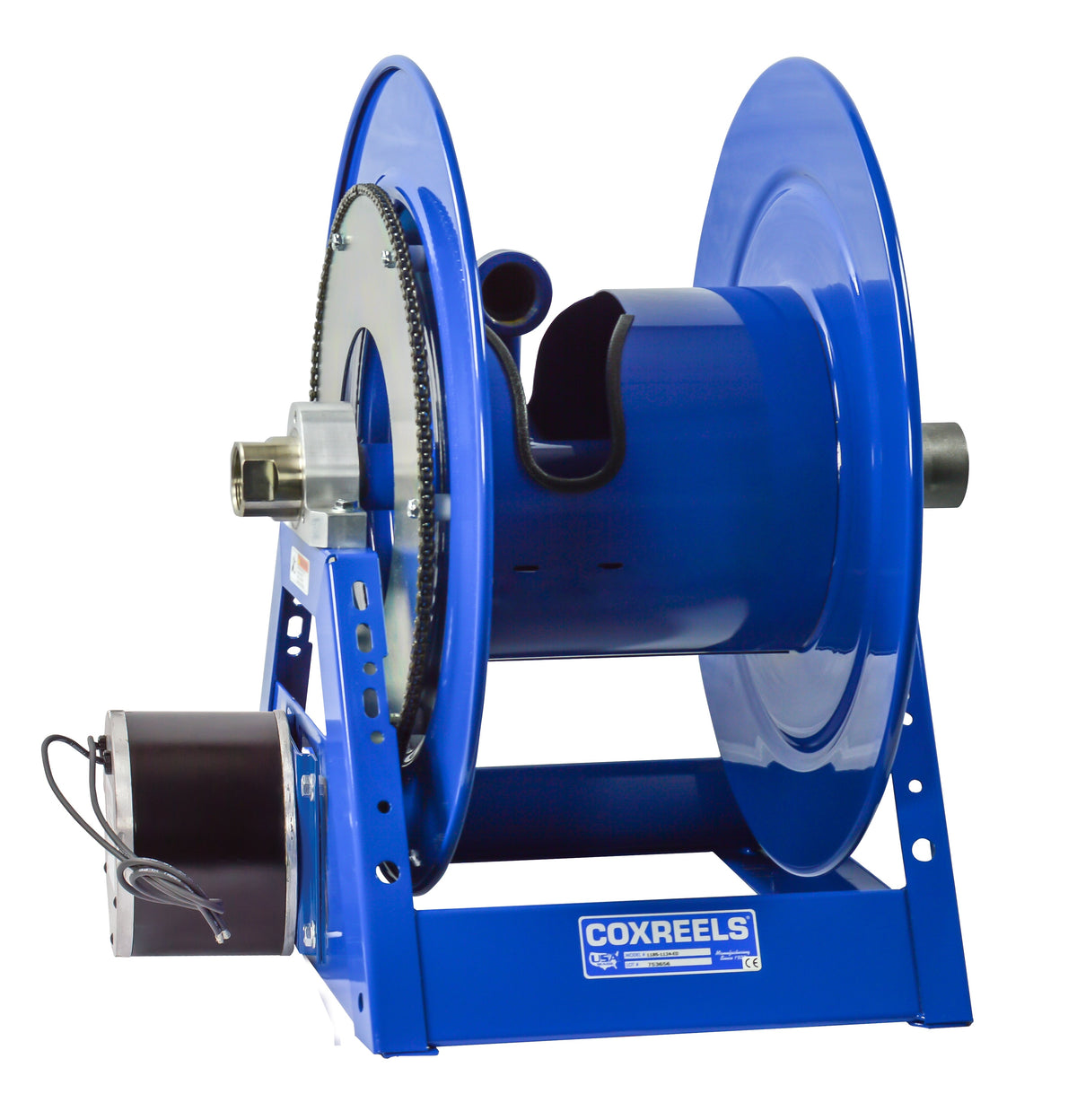

1185-2020-E by Coxreels | 1185 Series | 1,500 PSI Motor Driven Hose Reel | 12V DC 1/3 HP Electric Motor | 1-1/2" Hose ID, 1-1/2" FNPT Inlet | Steel | 70ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Motor driven hose reel
Coxreels 1185 Series Motor Driven Hose Reels
Steel A-frame motor driven hose reels for water, oil and lubrication, fuel delivery, fire booster hose and high-flow watering, rated to 3,000 PSI. Made in the U.S.A.
1
What is this product used for?
- 1,500 PSI models — Water, oil & lubrication, fuel delivery, fire booster hose, high-flow watering, chemical fluid transfer, high volume delivery, bulk liquid handling.
- 3,000 PSI models — Water, oil & lubrication, fire booster hose, high-flow watering, chemical fluid transfer, high volume delivery, bulk liquid handling.
2
What are the key specifications?
Construction
Steel, A-frame
Swivel
Electroless Nickel Plated Steel 90° full-flow
Inlet
1-1/2" FNPT
Max Temperature
250°F
Bearings
Lubricated Horizontal Surface Mount Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Swivel — In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 1/4" steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanent Lubricated Bearings — Robust lubricated horizontal surface mount bearings for easy rotation.
4
Which models are available?
| Base Model | Hose I.D. | Capacity | Drum Width | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1185-1124 | 1-1/2" | 50 ft | 11.5" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
| 1185-1524 | 1-1/2" | 75 ft | 15.5" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
| 1185-2020 | 1-1/2" | 70 ft | 11.5" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
| 1185-2024 | 1-1/2" | 100 ft | 20" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
| 1185-2028 | 1-1/2" | 125 ft | 20" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | — |
| 1185-2528 | 1-1/2" | 150 ft | 25" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | — |
| 1185-3324 | 1-1/2" | 175 ft | 33" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | — |
| 1185-3328 | 1-1/2" | 250 ft | 33" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
Part number = base model + motor suffix (e.g. 1185-1124-A). Suffix key:
| Suffix | Motor |
|---|---|
| -A | Air motor (#4 Gast) |
| -E | 12V DC, 1/3 HP electric motor |
| -H | Hydraulic motor |
| -AB | Air motor (#6 Gast) |
| -EA | 115V AC, 1/2 HP, explosion proof electric motor |
| -EB | 24V DC, 1/2 HP, explosion proof electric motor |
| -ED | 12V DC, 1/2 HP, explosion proof electric motor |
| -EF | 24V DC, 1/3 HP electric motor |
| -EJ | 230V AC, 1/2 HP, explosion proof electric motor |
5
Which accessories are available?
Roller guides — by drum width:
| Accessory | 15.5" | 20" | 25" | 33" |
|---|---|---|---|---|
| 3-way roller bracket, bottom rewind | — | 15363-20 | 15363-25 | 15363-33 |
| 3-way roller bracket, top rewind | — | 15360-20 | 15360-25 | 15360-33 |
| 4-way roller bracket, bottom rewind | 15370-1-15.5 | 15370-1-20 | 15370-1-25 | 15370-1-33 |
| 4-way roller bracket, top rewind | 15369-15.5 | 15369-1-20, 15369-20 | 15369-1-25 | 15369-1-33, 15369-33 |
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides | ||
| 15363-11.5 | 3-way roller bracket, bottom rewind | Capacity 50 ft |
| 15363-15.5 | 3-way roller bracket, bottom rewind | Capacity 70 ft, 75 ft |
| 15360-11.5 | 3-way roller bracket, top rewind | Capacity 50 ft |
| 15360-15.5 | 3-way roller bracket, top rewind | Capacity 70 ft, 75 ft |
| 15370-1-11.5 | 4-way roller bracket, bottom rewind | Capacity 50 ft |
| 15369-11.5 | 4-way roller bracket, top rewind | Capacity 50 ft |
Hose guides — by drum width:
| Part # | Accessory | Fits |
|---|---|---|
| Hose guides | ||
| 15728-11.5 | Pivoting Hose Guide HD - Bottom Return | Capacity 50 ft |
| 15728-15.5 | Pivoting Hose Guide HD - Bottom Return | Capacity 70 ft, 75 ft |
| 15730-11.5 | Pivoting Hose Guide HD - Top Return | Capacity 50 ft |
| 15730-15.5 | Pivoting Hose Guide HD - Top Return | Capacity 70 ft, 75 ft |
| Upgrades and service parts | ||
| 8176-1 | Gear Guards (for motor driven only) | Every model |
| 8302 | Heavy Duty Band Brake | Every model except 1185-1524/2020/2024-EJ; 1185-2020-EF |
| 8302-1 | Heavy Duty Band Brake | Max PSI 3,000 |
| HSRK-125, HSRK-150 | Hose Strain Relief Kit | Every model except 1185-1524/2020/2024-EJ; 1185-2020-EF |
| 20843 | Spring Loaded Lock Pin | Every model |
| Motor controls | ||
| 20873, 20874, 20875 | 115/230 AC/Volt Variable Speed Controller | -EA models, plus 1185-1124/2020-EJ |
| 20870, 20871, 20872 | 12 Volt DC Electric Motor Variable Speed Controller | -E, -ED models |
| 20878 | Circuit Breaker | -E, -ED models |
| 15212 | Control Valve for No. 4 Gast Air Motor | -A models |
| 15212-1 | Control Valve for No. 6 Gast Air Motor | -AB models |
| 20882 | Explosion Proof Stationary Push Button Switch | -E models |
| 15210 | General Purpose Reversing Switch | -EA models, plus 1185-1124/2020-EJ |
| 20876 | Sealed Push Button Switch | 1185-1124/1524/2020/2024/2028/2528/3324/3328-E; 1185-1124/1524/2020/2024/2028/2528/3324/3328-EA; 1185-1124/1524/2020/2024/2028/2528/3324/3328-EB; 1185-1124/1524/2020/2024/2028/2528/3324/3328-ED; 1185-1124/1524/2024/2028/3328-EF; 1185-1124/1524/2020-EJ |
| 20877 | Solenoid Relay | -E, -ED models |
| 8281 | Switch Box | -E, -ED models |
| 20883 | Vapor Proof Junction Box | 1185-1124/1524/2020/2024/2028/2528/3324/3328-E; 1185-1124/1524/2020/2024/2028/2528/3324/3328-EA; 1185-1124/1524/2020/2024/2028/2528/3324/3328-EB; 1185-1124/1524/2020/2024/2028/2528/3324/3328-ED; 1185-1124/1524/2024/2028/3328-EF; 1185-1124/1524/2020-EJ |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| -ZXXX | Galvanized |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BUXX | Standard plumbing & 90° ball bearing swivel with Aflas |
| -BWXX | Standard plumbing & 90° ball bearing swivel with Viton |
| -BRXX | Stainless steel plumbing & SS 90° ball bearing swivel with Aflas (304SS) |
| -BSXX | Stainless steel plumbing & SS 90° ball bearing swivel with Viton (304SS) |
| -BTXX | Stainless steel plumbing & SS 90° ball bearing swivel with food grade (304SS) |
| -BZXX | Less swivel |
| -BAXX / -BBXX / -BCXX / -BDXX | Stainless steel plumbing & swivel: standard seal / with Viton / with EPR / with food grade |
| -BJXX / -BKXX | Standard plumbing & 90˚ stainless steel swivel: Aflas / Viton |
| -BQXX | Stainless steel plumbing, less swivel |
| -BYXX | Less swivel, no riser, storage |
| 4-way roller position | |
| -BXCA / -BXCX | Top payout, on reel: motorized right / motorized left |
| -BXFX / -BXFI | Bottom payout, on reel: motorized right / motorized left |
| 3-way roller position | |
| -BXEA / -BXEX | Top payout, on reel: motorized right / motorized left |
| -BXHX / -BXHI | Bottom payout, on reel: motorized right / motorized left |
| Swivel and motor/crank position | |
| -BXXX | Top payout motorized standard, swivel left, motor left |
| -BXAI | Top payout motorized standard, swivel right, motor right |
| -BXAI | Bottom payout motorized standard, swivel left, motor left |
| -BXXX | Bottom payout motorized standard, swivel right, motor right |
7
Where can I find product documents?
1185 Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
