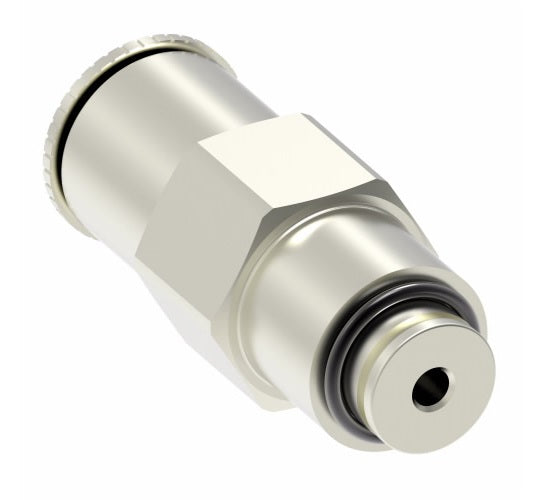

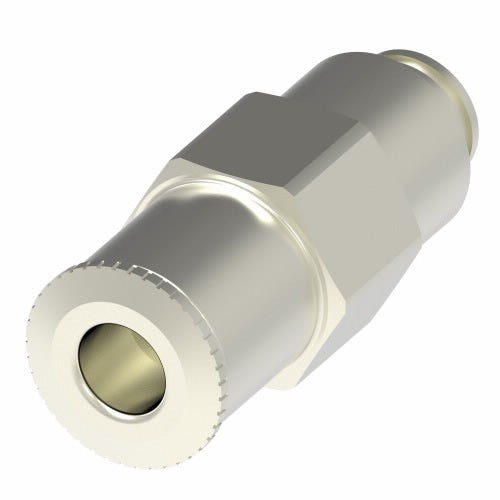

1168X6MX5MM by Danfoss | Metric Push to Connect Adapter | Male Connector | 6mm Tube OD x M5 Male Metric | Nickel Plated Brass
1168X6MX5MM by Danfoss | Metric Push to Connect Adapter | Male Connector | 6mm Tube OD x M5 Male Metric | Nickel Plated Brass
1168X6MX5MM by Danfoss | Metric Push to Connect Adapter | Male Connector | 6mm Tube OD x M5 Male Metric | Nickel Plated Brass

1168X6MX5MM by Danfoss | Metric Push to Connect Adapter | Male Connector | 6mm Tube OD x M5 Male Metric | Nickel Plated Brass

Minimum Order Quantity: 5 Units

Sale price$7.71

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Male Connector
Buy More, Save More!
Quantity Price Each
20–39 $7.25
40–79 $6.55
80+ $5.78
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 6mm Push-to-Connect
  • M5 Male Metric
Material(s):
  • Nickel Plated Brass
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male Metric Thread C F G H L SW
(mm)		 SW1
(mm)
1168X5MX5MM 5mm M5* 5.5mm 8.8mm 9.9mm 3.5mm 20.5mm 9mm 2mm
1168X6MX5MM 6mm M5* 5.5mm 11.7mm 13.2mm 3.5mm 21.5mm 12mm 2mm

* M5x0.8 metric screw thread. Seals with nylon washer (included).

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
