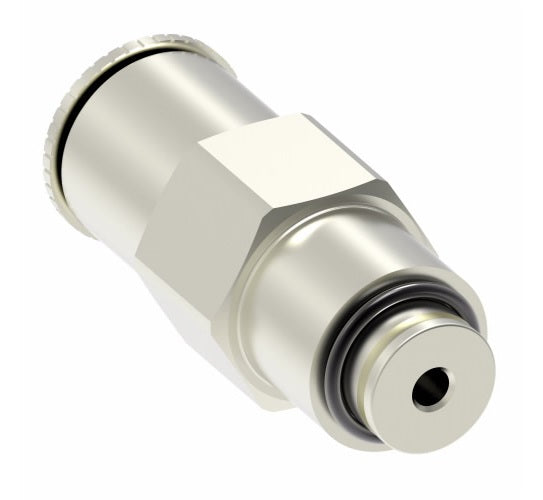

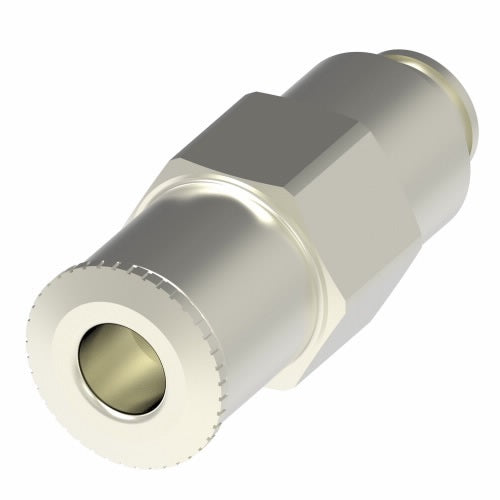

1168X5MX5MM by Danfoss | Metric Push to Connect Adapter | Male Connector | 5mm Tube OD x M5 Male Metric | Nickel Plated Brass
1168X5MX5MM by Danfoss | Metric Push to Connect Adapter | Male Connector | 5mm Tube OD x M5 Male Metric | Nickel Plated Brass
1168X5MX5MM by Danfoss | Metric Push to Connect Adapter | Male Connector | 5mm Tube OD x M5 Male Metric | Nickel Plated Brass

1168X5MX5MM by Danfoss | Metric Push to Connect Adapter | Male Connector | 5mm Tube OD x M5 Male Metric | Nickel Plated Brass

Minimum Order Quantity: 5 Units

Sale price$8.03

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Male Connector
Buy More, Save More!
Quantity Price Each
20–39 $7.55
40–79 $6.83
80+ $6.02
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 5mm Push-to-Connect
  • M5 Male Metric
Material(s):
  • Nickel Plated Brass
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		 M5x.8
BSPT 1/8 (2PT) 1/4 (4PT) 3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP) 3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male Metric Thread C F G H L SW
(mm)		 SW1
(mm)
1168X5MX5MM 5mm M5* 5.5mm 8.8mm 9.9mm 3.5mm 20.5mm 9mm 2mm
1168X6MX5MM 6mm M5* 5.5mm 11.7mm 13.2mm 3.5mm 21.5mm 12mm 2mm

* M5x0.8 metric screw thread. Seals with nylon washer (included).
