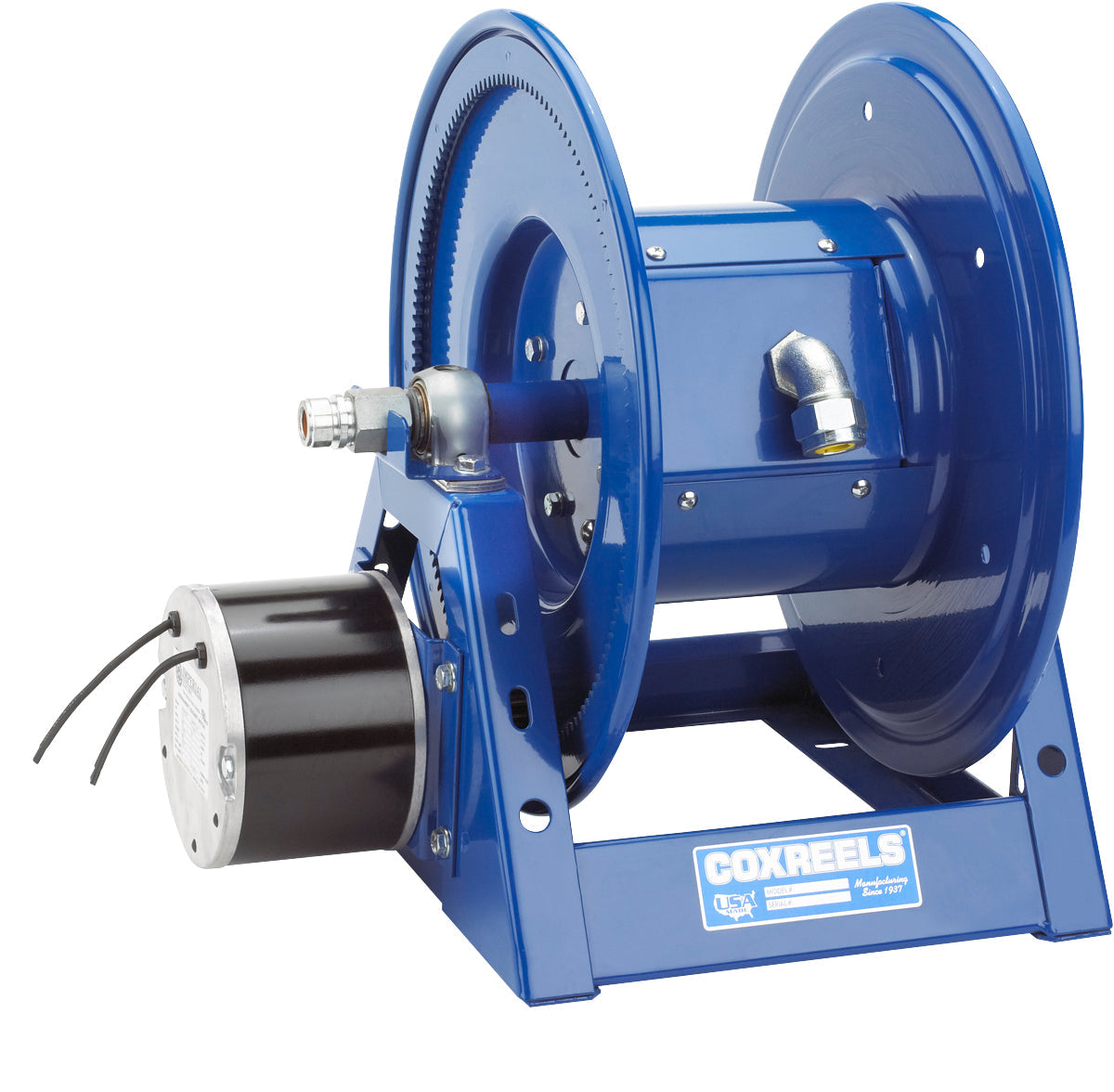

1125PCL-8M-E by Coxreels | 1125PCL Series | Motor Driven Cord Reel | 12V DC 1/3 HP Electric Motor | 10/3 or 8/3 SO Cord, 45A, 600V | Steel | 200ft (10/3) or 175ft (8/3) Capacity, Cord Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Motor driven cord reel
Coxreels 1125PCL Series Motor Driven Cord Reels
Steel A-frame motor driven cord reels for electric cord. Made in the U.S.A.
1
What is this product used for?
- Electric Cord
2
What are the key specifications?
Construction
Steel, A-frame
Max Temperature
250°F
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Slip Ring Assembly — Drum-located slip ring assembly with easy to access removable panel for simple routine maintenance. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
- Cable Keeper — Integrated anti-rotation cable keeper prevents the 5 foot lead cable from whipping or twisting.
4
Which models are available?
| Base Model | Cord | Length | -A | -E | -H | -EA | -EB | -ED |
|---|---|---|---|---|---|---|---|---|
| 1125PCL-8 | 12/3 | 250 ft | -A | -E | -H | -EA | -EB | -ED |
| 1125PCL-8M | 12/3 | 250 ft | -A | -E | -H | -EA | -EB | -ED |
| 1125PCL-8312 | 12/3 | 250 ft | — | -E | -H | -EA | -EB | -ED |
| 1125PCL-8408M | 12/3 | 250 ft | -A | -E | -H | -EA | -EB | -ED |
| 1125PCL-8410 | 12/3 | 250 ft | -A | -E | -H | -EA | -EB | -ED |
| 1125PCL-8410M | 12/3 | 250 ft | -A | -E | -H | -EA | -EB | -ED |
Part number = base model + motor suffix (e.g. 1125PCL-8-A). Suffix key:
| Suffix | Motor |
|---|---|
| -A | Air motor (#4 Gast) |
| -E | 12V DC, 1/3 HP electric motor |
| -H | Hydraulic motor |
| -EA | 115V AC, 1/2 HP, explosion proof electric motor |
| -EB | 24V DC, 1/2 HP, explosion proof electric motor |
| -ED | 12V DC, 1/2 HP, explosion proof electric motor |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides — fit every model | ||
| 15362-8 | 3-way roller bracket, bottom rewind | |
| 15359-8 | 3-way roller bracket, top rewind | |
| 15354-8 | 4-way roller bracket, bottom rewind | |
| 15358-8 | 4-way roller bracket, top payout, ceiling mount applications | |
| 15353-8 | 4-way roller bracket, top rewind | |
| 15353-P-8 | 4-way roller bracket, top rewind extension | |
| Upgrades and service parts — fit every model | ||
| 7406 | Gear Guards (for motor driven only) | |
| 20843 | Spring Loaded Lock Pin | |
| Motor controls | ||
| 20873, 20874, 20875 | 115/230 AC/Volt Variable Speed Controller | -EA models |
| 20870, 20871, 20872 | 12 Volt DC Electric Motor Variable Speed Controller | -E, -ED models |
| 20878 | Circuit Breaker | -E, -ED models |
| 15212 | Control Valve for No. 4 Gast Air Motor | -A models |
| 20882 | Explosion Proof Stationary Push Button Switch | -E models |
| 15210 | General Purpose Reversing Switch | -EA models |
| 20876 | Sealed Push Button Switch | -E, -EA, -EB, -ED models |
| 20877 | Solenoid Relay | -E, -ED models |
| 8281 | Switch Box | -E, -ED models |
| 20883 | Vapor Proof Junction Box | -E, -EA, -EB, -ED models |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| 4-way roller position | |
| -BXCX | Top payout, on reel, hand crank right |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFX | Bottom payout, on reel, hand crank left |
| 3-way roller position | |
| -BXEX | Top payout, on reel, hand crank right |
| -BXHX | Bottom payout, on reel, hand crank left |
7
Where can I find product documents?
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
⚠ WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Chromium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
