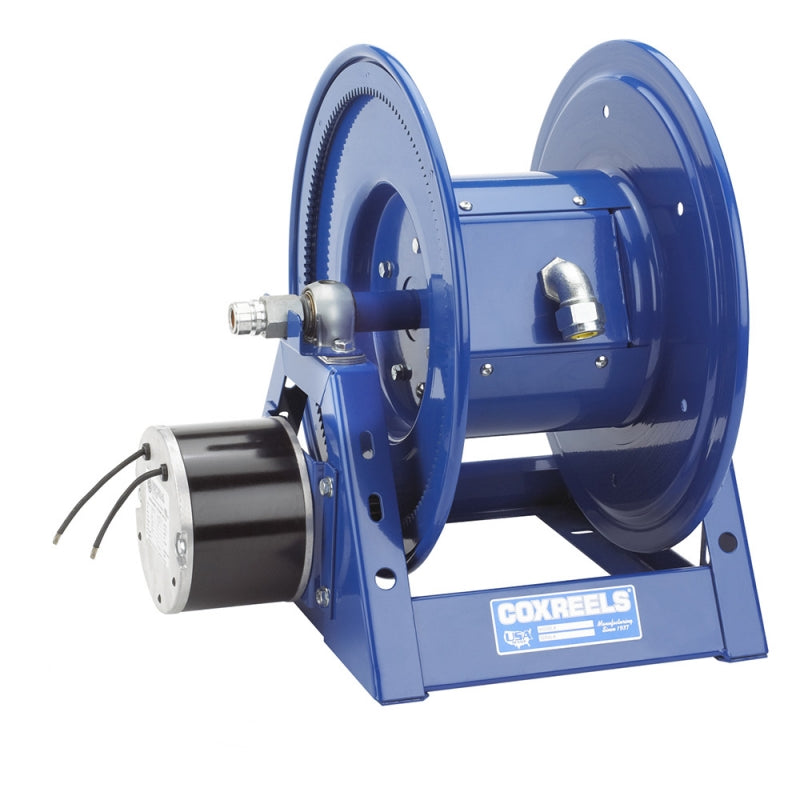

1125PCL-8410M by Coxreels | 1125PCL Series | Hand Crank Cord Reel | 10/4 SO Cord, 40A, 600V | Steel | 250ft Capacity, Cord Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank cord reel
Coxreels 1125PCL Series Hand Crank Cord Reels
Steel A-frame hand crank cord reels for electric cord. Made in the U.S.A.
1
What is this product used for?
- Electric Cord
2
What are the key specifications?
Construction
Steel, A-frame
Max Temperature
250°F
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Slip Ring Assembly — Drum-located slip ring assembly with easy to access removable panel for simple routine maintenance. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- "A" Frame — Sturdy one piece, all CNC robotically welded 1/4" steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently Lubricated Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
- Cable Keeper — Integrated anti-rotation cable keeper prevents the 5 foot lead cable from whipping or twisting.
4
Which models are available?
| Part # | Cord | Length | Amps | Reel W × H × L (in) |
|---|---|---|---|---|
| 1125PCL-8 | 12/3 | 250 ft | 30 | 18.875 × 18.5 × 17.5 |
| 1125PCL-8-C | 12/3 | 250 ft | 30 | 21.5 × 18.5 × 17.5 |
| 1125PCL-8M | 12/3 | 250 ft | 45 | 18.875 × 18.5 × 17.5 |
| 1125PCL-8M-C | 12/3 | 250 ft | 45 | 21.5 × 18.5 × 17.5 |
| 1125PCL-8312 | 12/3 | 250 ft | 30 | 18.875 × 18.5 × 17.5 |
| 1125PCL-8312-C | 12/3 | 250 ft | 30 | 21.5 × 18.5 × 17.5 |
| 1125PCL-8408M | 12/3 | 250 ft | 40 | 18.875 × 18.5 × 17.5 |
| 1125PCL-8408M-C | 12/3 | 250 ft | 40 | 21.5 × 18.5 × 17.5 |
| 1125PCL-8410 | 12/3 | 250 ft | 30 | 18.875 × 18.5 × 17.5 |
| 1125PCL-8410-C | 12/3 | 250 ft | 30 | 21.5 × 18.5 × 17.5 |
| 1125PCL-8410M | 12/3 | 250 ft | 40 | 18.875 × 18.5 × 17.5 |
| 1125PCL-8410M-C | 12/3 | 250 ft | 40 | 21.5 × 18.5 × 17.5 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides — fit every model | ||
| 15362-8 | 3-way roller bracket, bottom rewind | |
| 15359-8 | 3-way roller bracket, top rewind | |
| 15354-8 | 4-way roller bracket, bottom rewind | |
| 15358-8 | 4-way roller bracket, top payout, ceiling mount applications | |
| 15353-8 | 4-way roller bracket, top rewind | |
| 15353-P-8 | 4-way roller bracket, top rewind extension | |
| Upgrades and service parts — fit every model | ||
| 7406 | Gear Guards (for motor driven only) | |
| 20843 | Spring Loaded Lock Pin | |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| 4-way roller position | |
| -BXCX | Top payout, on reel, hand crank right |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFX | Bottom payout, on reel, hand crank left |
| 3-way roller position | |
| -BXEX | Top payout, on reel, hand crank right |
| -BXHX | Bottom payout, on reel, hand crank left |
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
