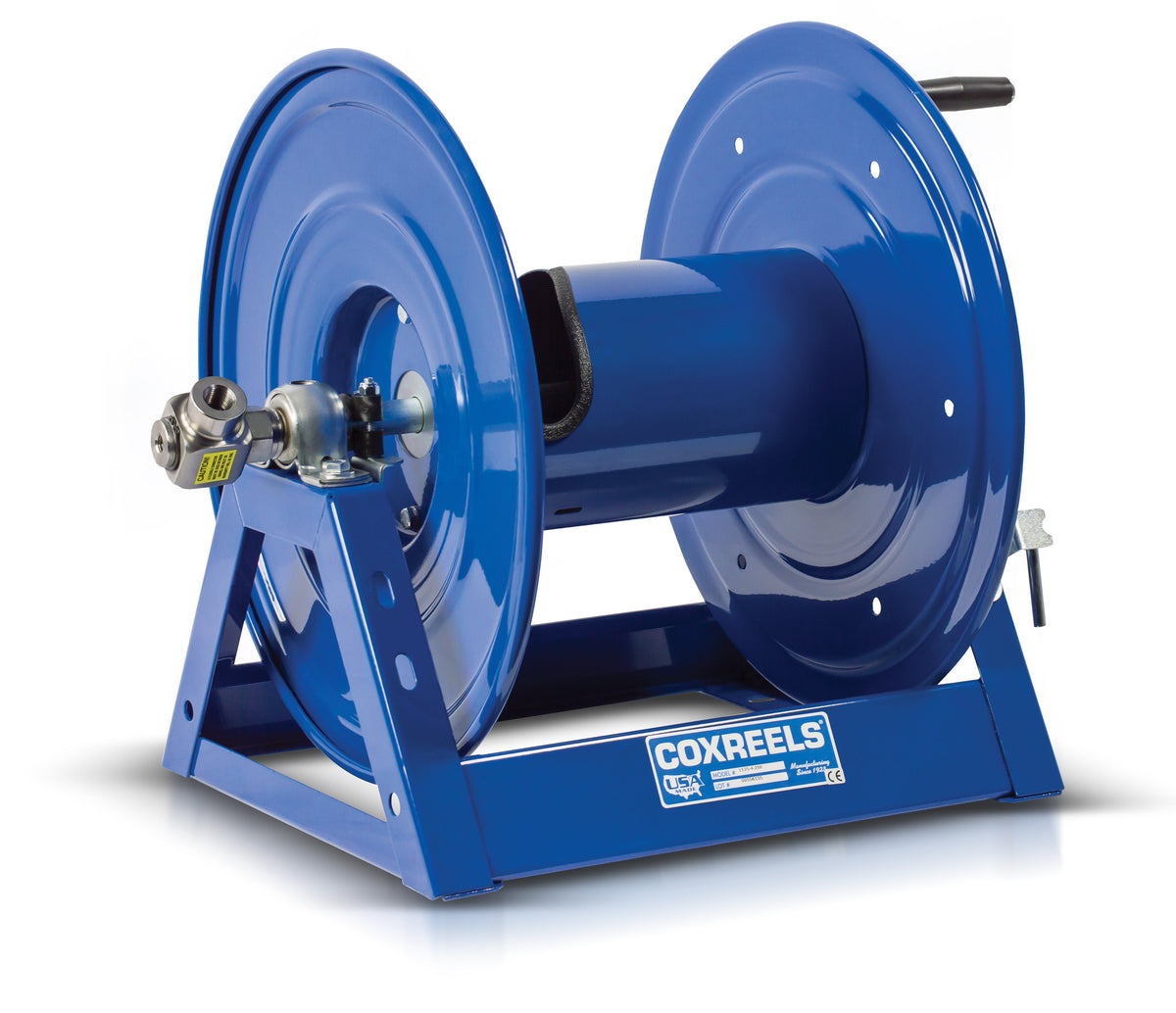

1125P-4-12 by Coxreels | 1125 Pure Flow Series | 6,000 PSI Hand Crank Hose Reel for Breathing Air & Clean Fluids | 1/2" Hose ID, 1/2" FNPT Inlet | Steel | 200ft Capacity, Hose Not Included
Coxreels 1125 Pure Flow Series Hand Crank Hose Reels
Steel A-frame hand crank hose reels for potable water, clean fluids and breathing air, rated to 6,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Potable Water
- Clean Fluids
- Breathing Air
2
What are the key specifications?
Steel, A-frame
CPC™ powder coat
Stainless Steel 90° full-flow with Nitrile Non-Toxic Food Grade Grease seals
1/2" FNPT
250°F
Permanently Lubricated Self Aligning Pillow Block Bearings
0.5 SLOT
3
What are the main product features?
- Swivel — Non-corrosive stainless steel air/fluid path with machined for high quality stainless steel 90˚ full-flow NPT swivel inlet.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Safety Storage — Safely store respiratory air hose lines for low or high pressure breathing systems, potable water hose lines for drinking water systems, and any hose requiring sanitized and non-contaminated fluid transfer application
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| 1125P-4-6 | 1/2" | 100 ft | 6,000 | 6" | 19.75 × 18.625 × 17.625 |
| 1125P-4-6-C | 1/2" | 100 ft | 6,000 | 6" | 19.75 × 18.625 × 17.625 |
| 1125P-4-8 | 1/2" | 150 ft | 6,000 | 8" | 21.75 × 18.625 × 17.625 |
| 1125P-4-8-C | 1/2" | 150 ft | 6,000 | 8" | 21.75 × 18.625 × 17.625 |
| 1125P-4-12 | 1/2" | 200 ft | 6,000 | 12" | 25.75 × 18.625 × 17.625 |
| 1125P-4-12-C | 1/2" | 200 ft | 6,000 | 12" | 25.75 × 18.625 × 17.625 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model | ||
| 7480-12 | Stacking Bracket | |
Roller guides — by drum width:
| Accessory | 6" | 8" | 12" |
|---|---|---|---|
| 3-way roller bracket, bottom rewind | 15362-6 | 15362-8 | 15362-12 |
| 3-way roller bracket, top rewind | 15359-6 | 15359-8 | 15359-12 |
| 4-way roller bracket, bottom rewind | 15354-6 | 15354-8 | 15354-12 |
| 4-way roller bracket, top payout, ceiling mount applications | — | — | 15358-12 |
| 4-way roller bracket, top rewind | 15353-6, 15355-6 | 15353-8, 15355-8 | 15353-12, 15355-12 |
| 4-way roller bracket, top rewind extension | 15353-P-6 | 15353-P-8 | 15353-P-12 |
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides — fit every model except 1125P-4-12-C; 1125P-4-12 | ||
| 15358-6 | 4-way roller bracket, top payout, ceiling mount applications | |
| Hose guides — fit every model | ||
| 15733 | Pivoting Hose Guide - Bottom Return | |
| 15732 | Pivoting Hose Guide - Top Return | |
| 15734 | Sliding Hose Guide | |
| Inlet connections — fit every model | ||
| 15717 | Garden Hose Kit | |
| Upgrades and service parts — fit every model | ||
| 8340 | Heavy Duty Band Brake | |
| HSRK-050 | Hose Strain Relief Kit | |
| 20843 | Spring Loaded Lock Pin | |
| 15735 | Wand Holder | |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BZXX is -GZXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZXX | Less swivel |
7
Where can I find product documents?
1125 Pure Flow Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
