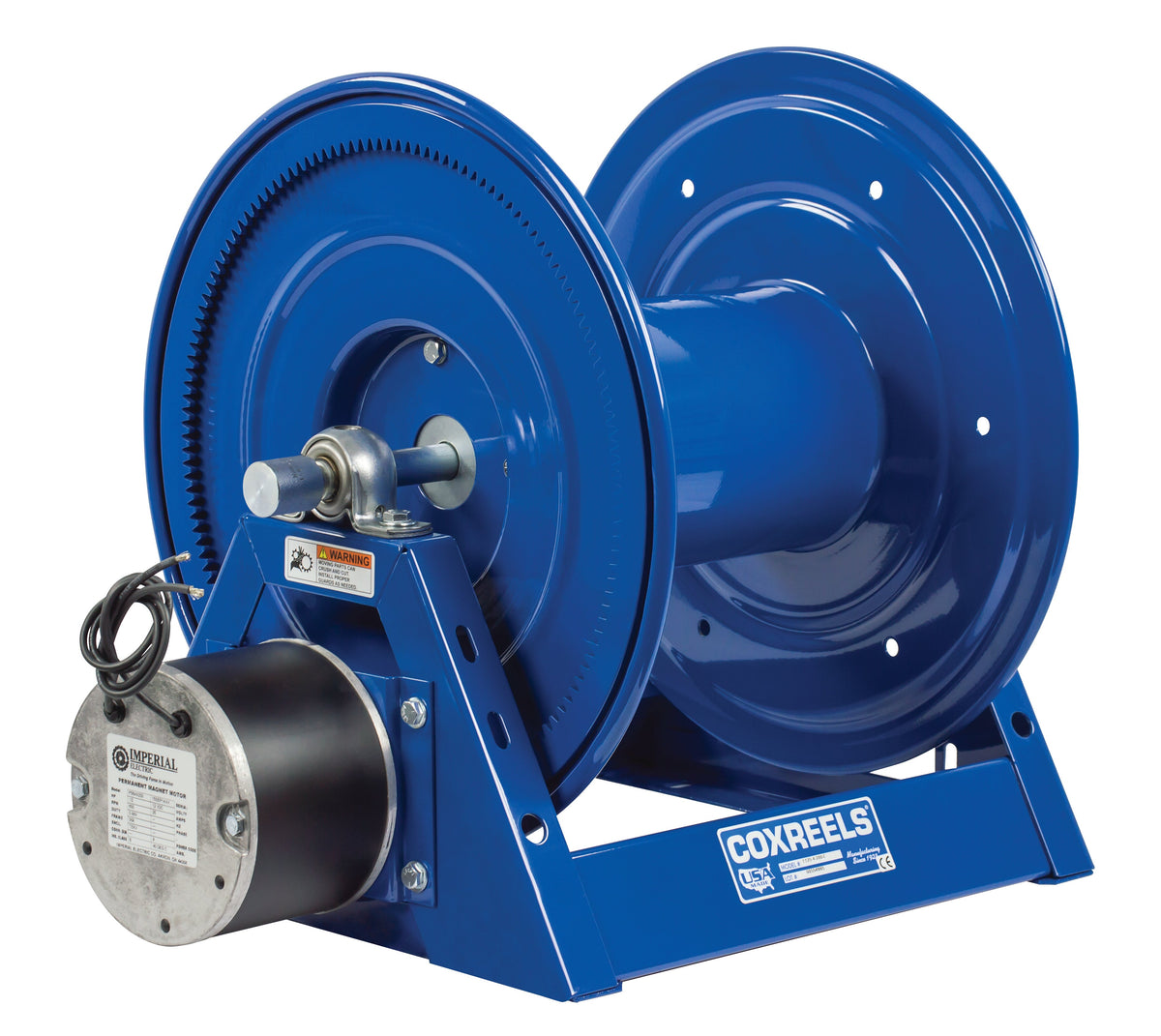

1125-5-250-E-BYXX by Coxreels | Storage Series | Motor Driven Hose Storage Reel | 12V DC 1/3 HP Electric Motor | 28" Drum Width | Steel | Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Motor driven storage reel
Coxreels Storage Series Motor Driven Storage Reels
Steel A-frame motor driven storage reels for storage only. Made in the U.S.A.
1
What is this product used for?
- Storage Only
2
What are the key specifications?
Construction
Steel, A-frame
Max Temperature
250°F
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Storage Reel — Have no swivel and no riser to storage and maintain long length of hose, cord, cable, wire, rope, tape, chain and other.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- "A" Frame — Sturdy one piece, all CNC robotically welded 1/4" steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Adjustable Tension Brake — Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- Pillow Block Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Part # | Drum Width | Reel W × H × L (in) |
|---|---|---|
| 115V AC, 1/2 HP, explosion proof electric motor | ||
| 1125-4-200-EA-BYXX | 12" | 25.75 × 19.25 × 17.625 |
| 1125-4-325-EA-BYXX | 18" | 31.75 × 19.25 × 17.625 |
| 1125-5-250-EA-BYXX | 28" | 42 × 19.25 × 17.625 |
| 1175-6-100-EA-BYXX | 11.5" | 26 × 26.125 × 24 |
| 1175-6-200-EA-BYXX | 20" | 34.5 × 26.125 × 24 |
| 1185-2028-EA-BYXX | 20" | 34.625 × 30 × 28 |
| 1185-3328-EA-BYXX | 33" | 47.625 × 30 × 28 |
| 12V DC, 1/2 HP, explosion proof electric motor | ||
| 1125-4-200-ED-BYXX | 12" | 25.75 × 19.25 × 17.625 |
| 1125-4-325-ED-BYXX | 18" | 31.75 × 19.25 × 17.625 |
| 1185-2028-ED-BYXX | 20" | 34.625 × 30 × 28 |
| 1185-3328-ED-BYXX | 33" | 47.625 × 30 × 28 |
| 12V DC, 1/3 HP electric motor | ||
| 1125-4-200-E-BYXX | 12" | 25.75 × 19.25 × 17.625 |
| 1125-4-325-E-BYXX | 18" | 31.75 × 19.25 × 17.625 |
| 1125-5-200-E-BYXX | 24" | 38 × 19.25 × 17.625 |
| 1125-5-250-E-BYXX | 28" | 42 × 19.25 × 17.625 |
| 1175-6-200-E-BYXX | 20" | 34.5 × 26.125 × 24 |
| 1185-2028-E-BYXX | 20" | 34.625 × 30 × 28 |
| 1185-3328-E-BYXX | 33" | 47.625 × 30 × 28 |
| 230V AC, 1/2 HP, explosion proof electric motor | ||
| 1175-6-200-EJ-BYXX | 20" | 34.5 × 26.125 × 24 |
| Hydraulic motor | ||
| 1185-2028-H-BYXX | 20" | 31.625 × 30 × 28 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets | ||
| 7480-12 | Stacking Bracket | Drum width 12" |
| 7480-18 | Stacking Bracket | 1125-4-325-E/EA-BYXX |
| Roller guides | ||
| 15362-12 | 3-way roller bracket, bottom rewind | Drum width 12" |
| 15362-18 | 3-way roller bracket, bottom rewind | 1125-4-325-E/EA-BYXX |
| 15363-20 | 3-way roller bracket, bottom rewind | 1175-6-200-EA-BYXX |
| 15364-20 | 3-way roller bracket, bottom rewind | 1185-2028-E/EA/ED-BYXX |
| 15364-33 | 3-way roller bracket, bottom rewind | 1185-3328-E/EA-BYXX |
| 15359-12 | 3-way roller bracket, top rewind | Drum width 12" |
| 15359-18 | 3-way roller bracket, top rewind | 1125-4-325-E/EA-BYXX |
| 15360-20 | 3-way roller bracket, top rewind | 1175-6-200-EA-BYXX |
| 15361-20 | 3-way roller bracket, top rewind | 1185-2028-E/EA/ED-BYXX |
| 15361-33 | 3-way roller bracket, top rewind | 1185-3328-E/EA-BYXX |
| 15037-20 | 4-way roller bracket, bottom rewind | 1175-6-200-EA-BYXX |
| 15354-12 | 4-way roller bracket, bottom rewind | Drum width 12" |
| 15354-18 | 4-way roller bracket, bottom rewind | 1125-4-325-E/EA-BYXX |
| 15370-1-20 | 4-way roller bracket, bottom rewind | 1185-2028-E/EA/ED-BYXX |
| 15370-1-33 | 4-way roller bracket, bottom rewind | 1185-3328-E/EA-BYXX |
| 15356-20 | 4-way roller bracket, top payout, ceiling mount applications | 1175-6-200-EA-BYXX |
| 15358-12 | 4-way roller bracket, top payout, ceiling mount applications | Drum width 12" |
| 15358-18 | 4-way roller bracket, top payout, ceiling mount applications | 1125-4-325-E/EA-BYXX |
| 15353-12 | 4-way roller bracket, top rewind | Drum width 12" |
| 15353-18 | 4-way roller bracket, top rewind | 1125-4-325-E/EA-BYXX |
| 15357-20 | 4-way roller bracket, top rewind | 1175-6-200-EA-BYXX |
| 15369-1-20 | 4-way roller bracket, top rewind | 1185-2028-E/EA/ED-BYXX |
| 15369-1-33 | 4-way roller bracket, top rewind | 1185-3328-E/EA-BYXX |
| 15353-P-12 | 4-way roller bracket, top rewind extension | Drum width 12" |
| 15353-P-18 | 4-way roller bracket, top rewind extension | 1125-4-325-E/EA-BYXX |
| 15353-P-20 | 4-way roller bracket, top rewind extension | 1175-6-200-EA-BYXX |
| Hose guides | ||
| 15732 | Pivoting Hose Guide - Bottom Return | Drum width 12", 18" except 1125-4-325-ED-BYXX |
| 15733 | Pivoting Hose Guide - Top Return | Drum width 12", 18" except 1125-4-325-ED-BYXX |
| 15728-20 | Pivoting Hose Guide HD - Bottom Return | 1175-6-200-EA-BYXX; 1185-2028-E/EA/ED-BYXX |
| 15728-33 | Pivoting Hose Guide HD - Bottom Return | 1185-3328-E/EA-BYXX |
| 15729-20 | Pivoting Hose Guide HD - Top Return | 1175-6-200-EA-BYXX |
| 15730-20 | Pivoting Hose Guide HD - Top Return | 1185-2028-E/EA/ED-BYXX |
| 15730-33 | Pivoting Hose Guide HD - Top Return | 1185-3328-E/EA-BYXX |
| 15734 | Sliding Hose Guide | Drum width 12", 18" except 1125-4-325-ED-BYXX |
| Inlet connections — fit drum width 12", 18" except 1125-4-325-ED-BYXX | ||
| 15717 | Garden Hose Kit | |
| Upgrades and service parts | ||
| 7406 | Gear Guards (for motor driven only) | Drum width 12", 18" except 1125-4-325-ED-BYXX |
| 7700 | Gear Guards (for motor driven only) | 1175-6-200-EA-BYXX |
| 8176-1 | Gear Guards (for motor driven only) | 1185-2028-E/EA/ED-BYXX; 1185-3328-E/EA-BYXX |
| 7429-1-4 | High Temperature Drag Brake | Drum width 12", 18" except 1125-4-325-ED-BYXX |
| 20843 | Spring Loaded Lock Pin | 1125-4-200-E-BYXX; 1125-4-200-EA-BYXX; 1125-4-200-ED-BYXX; 1125-4-325-E-BYXX; 1125-4-325-EA-BYXX; 1175-6-200-EA-BYXX; 1185-2028-E/EA/ED-BYXX; 1185-3328-E/EA-BYXX |
| 15735 | Wand Holder | Drum width 12", 18" except 1125-4-325-ED-BYXX |
| Motor controls | ||
| 20873, 20874, 20875 | 115/230 AC/Volt Variable Speed Controller | Motor suffix -EA, -EJ |
| 20870, 20871, 20872 | 12 Volt DC Electric Motor Variable Speed Controller | Motor suffix -E, -ED |
| 20878 | Circuit Breaker | Motor suffix -E, -ED |
| 20882 | Explosion Proof Stationary Push Button Switch | Motor suffix -E |
| 15210 | General Purpose Reversing Switch | Motor suffix -EA, -EJ |
| 20876 | Sealed Push Button Switch | Every model except 1185-2028-H-BYXX |
| 20877 | Solenoid Relay | Motor suffix -E, -ED |
| 8281 | Switch Box | Motor suffix -E, -ED |
| 20883 | Vapor Proof Junction Box | Every model except 1185-2028-H-BYXX |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Prefix — added before the model number | |
| BX- | Brawny Reel Upgrade |
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
