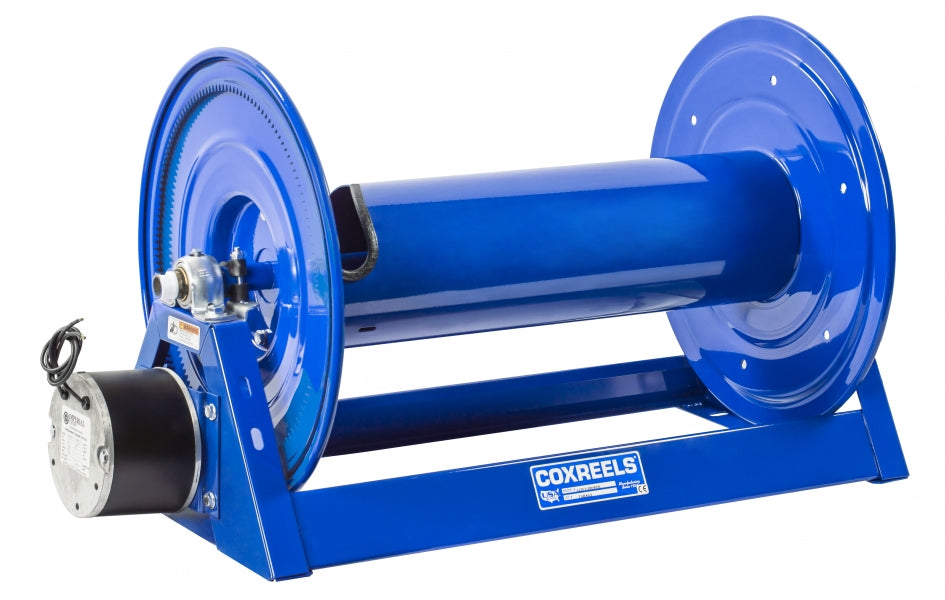

1125-4-325-E-BYXX by Coxreels | Storage Series | Motor Driven Hose Storage Reel | 12V DC 1/3 HP Electric Motor | 18" Drum Width | Steel | Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Motor driven storage reel
Coxreels Storage Series Motor Driven Storage Reels
Steel A-frame motor driven storage reels for storage only. Made in the U.S.A.
1
What is this product used for?
- Storage Only
2
What are the key specifications?
Construction
Steel, A-frame
Max Temperature
250°F
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Storage Reel — Have no swivel and no riser to storage and maintain long length of hose, cord, cable, wire, rope, tape, chain and other.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- "A" Frame — Sturdy one piece, all CNC robotically welded 1/4" steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Adjustable Tension Brake — Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- Pillow Block Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Part # | Drum Width | Reel W × H × L (in) |
|---|---|---|
| 115V AC, 1/2 HP, explosion proof electric motor | ||
| 1125-4-200-EA-BYXX | 12" | 25.75 × 19.25 × 17.625 |
| 1125-4-325-EA-BYXX | 18" | 31.75 × 19.25 × 17.625 |
| 1125-5-250-EA-BYXX | 28" | 42 × 19.25 × 17.625 |
| 1175-6-100-EA-BYXX | 11.5" | 26 × 26.125 × 24 |
| 1175-6-200-EA-BYXX | 20" | 34.5 × 26.125 × 24 |
| 1185-2028-EA-BYXX | 20" | 34.625 × 30 × 28 |
| 1185-3328-EA-BYXX | 33" | 47.625 × 30 × 28 |
| 12V DC, 1/2 HP, explosion proof electric motor | ||
| 1125-4-200-ED-BYXX | 12" | 25.75 × 19.25 × 17.625 |
| 1125-4-325-ED-BYXX | 18" | 31.75 × 19.25 × 17.625 |
| 1185-2028-ED-BYXX | 20" | 34.625 × 30 × 28 |
| 1185-3328-ED-BYXX | 33" | 47.625 × 30 × 28 |
| 12V DC, 1/3 HP electric motor | ||
| 1125-4-200-E-BYXX | 12" | 25.75 × 19.25 × 17.625 |
| 1125-4-325-E-BYXX | 18" | 31.75 × 19.25 × 17.625 |
| 1125-5-200-E-BYXX | 24" | 38 × 19.25 × 17.625 |
| 1125-5-250-E-BYXX | 28" | 42 × 19.25 × 17.625 |
| 1175-6-200-E-BYXX | 20" | 34.5 × 26.125 × 24 |
| 1185-2028-E-BYXX | 20" | 34.625 × 30 × 28 |
| 1185-3328-E-BYXX | 33" | 47.625 × 30 × 28 |
| 230V AC, 1/2 HP, explosion proof electric motor | ||
| 1175-6-200-EJ-BYXX | 20" | 34.5 × 26.125 × 24 |
| Hydraulic motor | ||
| 1185-2028-H-BYXX | 20" | 31.625 × 30 × 28 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets | ||
| 7480-12 | Stacking Bracket | Drum width 12" |
| 7480-18 | Stacking Bracket | 1125-4-325-E/EA-BYXX |
| Roller guides | ||
| 15362-12 | 3-way roller bracket, bottom rewind | Drum width 12" |
| 15362-18 | 3-way roller bracket, bottom rewind | 1125-4-325-E/EA-BYXX |
| 15363-20 | 3-way roller bracket, bottom rewind | 1175-6-200-EA-BYXX |
| 15364-20 | 3-way roller bracket, bottom rewind | 1185-2028-E/EA/ED-BYXX |
| 15364-33 | 3-way roller bracket, bottom rewind | 1185-3328-E/EA-BYXX |
| 15359-12 | 3-way roller bracket, top rewind | Drum width 12" |
| 15359-18 | 3-way roller bracket, top rewind | 1125-4-325-E/EA-BYXX |
| 15360-20 | 3-way roller bracket, top rewind | 1175-6-200-EA-BYXX |
| 15361-20 | 3-way roller bracket, top rewind | 1185-2028-E/EA/ED-BYXX |
| 15361-33 | 3-way roller bracket, top rewind | 1185-3328-E/EA-BYXX |
| 15037-20 | 4-way roller bracket, bottom rewind | 1175-6-200-EA-BYXX |
| 15354-12 | 4-way roller bracket, bottom rewind | Drum width 12" |
| 15354-18 | 4-way roller bracket, bottom rewind | 1125-4-325-E/EA-BYXX |
| 15370-1-20 | 4-way roller bracket, bottom rewind | 1185-2028-E/EA/ED-BYXX |
| 15370-1-33 | 4-way roller bracket, bottom rewind | 1185-3328-E/EA-BYXX |
| 15356-20 | 4-way roller bracket, top payout, ceiling mount applications | 1175-6-200-EA-BYXX |
| 15358-12 | 4-way roller bracket, top payout, ceiling mount applications | Drum width 12" |
| 15358-18 | 4-way roller bracket, top payout, ceiling mount applications | 1125-4-325-E/EA-BYXX |
| 15353-12 | 4-way roller bracket, top rewind | Drum width 12" |
| 15353-18 | 4-way roller bracket, top rewind | 1125-4-325-E/EA-BYXX |
| 15357-20 | 4-way roller bracket, top rewind | 1175-6-200-EA-BYXX |
| 15369-1-20 | 4-way roller bracket, top rewind | 1185-2028-E/EA/ED-BYXX |
| 15369-1-33 | 4-way roller bracket, top rewind | 1185-3328-E/EA-BYXX |
| 15353-P-12 | 4-way roller bracket, top rewind extension | Drum width 12" |
| 15353-P-18 | 4-way roller bracket, top rewind extension | 1125-4-325-E/EA-BYXX |
| 15353-P-20 | 4-way roller bracket, top rewind extension | 1175-6-200-EA-BYXX |
| Hose guides | ||
| 15732 | Pivoting Hose Guide - Bottom Return | Drum width 12", 18" except 1125-4-325-ED-BYXX |
| 15733 | Pivoting Hose Guide - Top Return | Drum width 12", 18" except 1125-4-325-ED-BYXX |
| 15728-20 | Pivoting Hose Guide HD - Bottom Return | 1175-6-200-EA-BYXX; 1185-2028-E/EA/ED-BYXX |
| 15728-33 | Pivoting Hose Guide HD - Bottom Return | 1185-3328-E/EA-BYXX |
| 15729-20 | Pivoting Hose Guide HD - Top Return | 1175-6-200-EA-BYXX |
| 15730-20 | Pivoting Hose Guide HD - Top Return | 1185-2028-E/EA/ED-BYXX |
| 15730-33 | Pivoting Hose Guide HD - Top Return | 1185-3328-E/EA-BYXX |
| 15734 | Sliding Hose Guide | Drum width 12", 18" except 1125-4-325-ED-BYXX |
| Inlet connections — fit drum width 12", 18" except 1125-4-325-ED-BYXX | ||
| 15717 | Garden Hose Kit | |
| Upgrades and service parts | ||
| 7406 | Gear Guards (for motor driven only) | Drum width 12", 18" except 1125-4-325-ED-BYXX |
| 7700 | Gear Guards (for motor driven only) | 1175-6-200-EA-BYXX |
| 8176-1 | Gear Guards (for motor driven only) | 1185-2028-E/EA/ED-BYXX; 1185-3328-E/EA-BYXX |
| 7429-1-4 | High Temperature Drag Brake | Drum width 12", 18" except 1125-4-325-ED-BYXX |
| 20843 | Spring Loaded Lock Pin | 1125-4-200-E-BYXX; 1125-4-200-EA-BYXX; 1125-4-200-ED-BYXX; 1125-4-325-E-BYXX; 1125-4-325-EA-BYXX; 1175-6-200-EA-BYXX; 1185-2028-E/EA/ED-BYXX; 1185-3328-E/EA-BYXX |
| 15735 | Wand Holder | Drum width 12", 18" except 1125-4-325-ED-BYXX |
| Motor controls | ||
| 20873, 20874, 20875 | 115/230 AC/Volt Variable Speed Controller | Motor suffix -EA, -EJ |
| 20870, 20871, 20872 | 12 Volt DC Electric Motor Variable Speed Controller | Motor suffix -E, -ED |
| 20878 | Circuit Breaker | Motor suffix -E, -ED |
| 20882 | Explosion Proof Stationary Push Button Switch | Motor suffix -E |
| 15210 | General Purpose Reversing Switch | Motor suffix -EA, -EJ |
| 20876 | Sealed Push Button Switch | Every model except 1185-2028-H-BYXX |
| 20877 | Solenoid Relay | Motor suffix -E, -ED |
| 8281 | Switch Box | Motor suffix -E, -ED |
| 20883 | Vapor Proof Junction Box | Every model except 1185-2028-H-BYXX |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Prefix — added before the model number | |
| BX- | Brawny Reel Upgrade |
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
7
Where can I find product documents?
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
⚠ WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Chromium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
