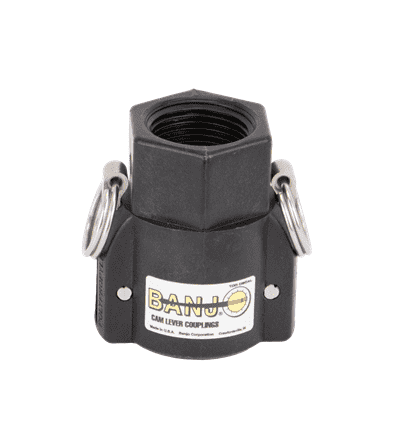

100DB by Banjo | Cam Lever Coupling | Part D | 1" Female Coupling x 1" Female Thread BSP | 75 PSI | Polypropylene | Pack of 10

100DB by Banjo | Cam Lever Coupling | Part D | 1" Female Coupling x 1" Female Thread BSP | 75 PSI | Polypropylene | Pack of 10

Sale price$141.54
Quantity Price Each
50–99 $127.39
100+ $113.23
Discounts applied at checkout.
Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 1" Series

Package Quantity: 10 EA

Product Data:

Shape:

Straight

Cam & Groove Type:

Type D

Ends Configuration:
  • 1in Female Cam & Groove
  • 1in Female BSPP
Applications:
  • Agriculture
  • Industrial
  • Fluids
Features:
  • Stainless steel rings, arms & pins
  • Most complete line of polypropylene couplings available
  • Versatile - interchangeable with all types of cam lever couplers
  • Precision molded - insures a uniform and accurate fit
  • Durable - Polypropylene is glass reinforced for rugged strength and durability
  • Smooth operating - finger rings are designed for easy opening of cam levers
  • Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
  • BSP threads available 1" - 3" sizes (excluding 1-1/4")
  • Economical and superior in performance
  • Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available
  • Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
  • WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
Part Number Type End Type Max PSI Gasket
100A Part A 1" Male Adapter x 1" Female NPT 300 PSI None
100AB Part A 1" Male Adapter x 1" Female Thread-British Standard Pipe 75 PSI None
100B Part B 1" Female Coupler x 1" Male NPT 300 PSI EPDM
100BB Part B 1" Male Adapter x 1" Male Thread British Standard Pipe 75 PSI None
100C Part C 1" Female Coupler x 1" Hose Shank 125 PSI EPDM
100D Part D 1" Female Coupler x 1" Female NPT 300 PSI EPDM
100DB Part D 1" Male Adapter x 1" Female Thread British Standard Pipe 75 PSI None
100E Part E 1" Male Adapter x 1" Hose Shank 300 PSI None
100F Part F 1" Male Adapter x 1" Male NPT 300 PSI None
100FB Part F 1" Male Adapter x 1" Male British Standard Pipe 75 PSI None
100125CAP Part CAP 1" Cap - Male Adapter 300 PSI EPDM
100125PL Part PL 1" Plug - Female Coupler 300 PSI None
Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size
