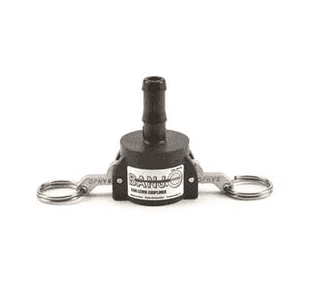

100C by Banjo | Cam Lever Coupling | Part C | 1" Female Coupler x 1" Hose Shank | 300 PSI | Gasket: EPDM | Polypropylene | Pack of 10

100C by Banjo | Cam Lever Coupling | Part C | 1" Female Coupler x 1" Hose Shank | 300 PSI | Gasket: EPDM | Polypropylene | Pack of 10

Sale price$159.07
Quantity Price Each
50–99 $143.16
100+ $127.26
Discounts applied at checkout.
Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 1" Series

Package Quantity: 10 EA

Product Data:

Shape:

Straight

Cam & Groove Type:

Type C

Ends Configuration:
  • 1in Female Cam & Groove
  • 1in Hose Barb
Applications:
  • Agriculture
  • Industrial
  • Fluids
Features:
  • Stainless steel rings, arms & pins
  • Most complete line of polypropylene couplings available
  • Versatile - interchangeable with all types of cam lever couplers
  • Precision molded - insures a uniform and accurate fit
  • Durable - Polypropylene is glass reinforced for rugged strength and durability
  • Smooth operating - finger rings are designed for easy opening of cam levers
  • Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
  • BSP threads available 1" - 3" sizes (excluding 1-1/4")
  • Economical and superior in performance
  • Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available
  • Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
  • WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
Part Number Type End Type Max PSI Gasket
100A Part A 1" Male Adapter x 1" Female NPT 300 PSI None
100AB Part A 1" Male Adapter x 1" Female Thread-British Standard Pipe 75 PSI None
100B Part B 1" Female Coupler x 1" Male NPT 300 PSI EPDM
100BB Part B 1" Male Adapter x 1" Male Thread British Standard Pipe 75 PSI None
100C Part C 1" Female Coupler x 1" Hose Shank 125 PSI EPDM
100D Part D 1" Female Coupler x 1" Female NPT 300 PSI EPDM
100DB Part D 1" Male Adapter x 1" Female Thread British Standard Pipe 75 PSI None
100E Part E 1" Male Adapter x 1" Hose Shank 300 PSI None
100F Part F 1" Male Adapter x 1" Male NPT 300 PSI None
100FB Part F 1" Male Adapter x 1" Male British Standard Pipe 75 PSI None
100125CAP Part CAP 1" Cap - Male Adapter 300 PSI EPDM
100125PL Part PL 1" Plug - Female Coupler 300 PSI None
Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
