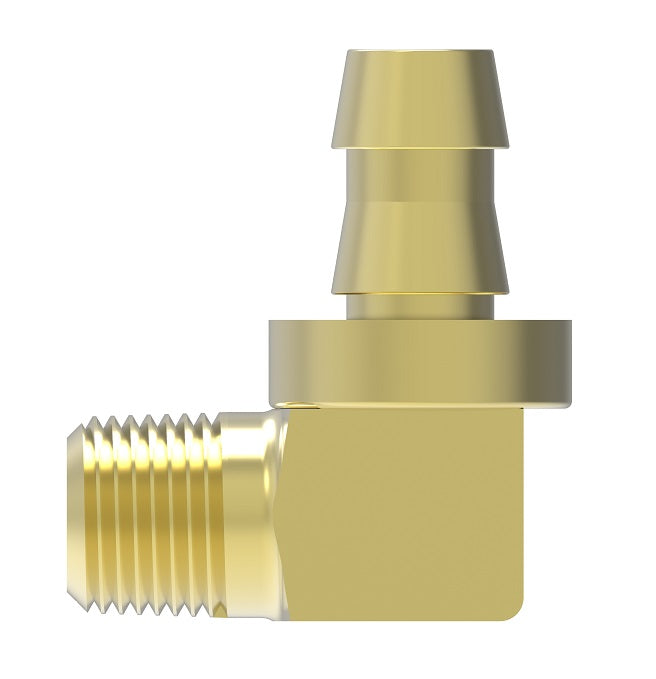

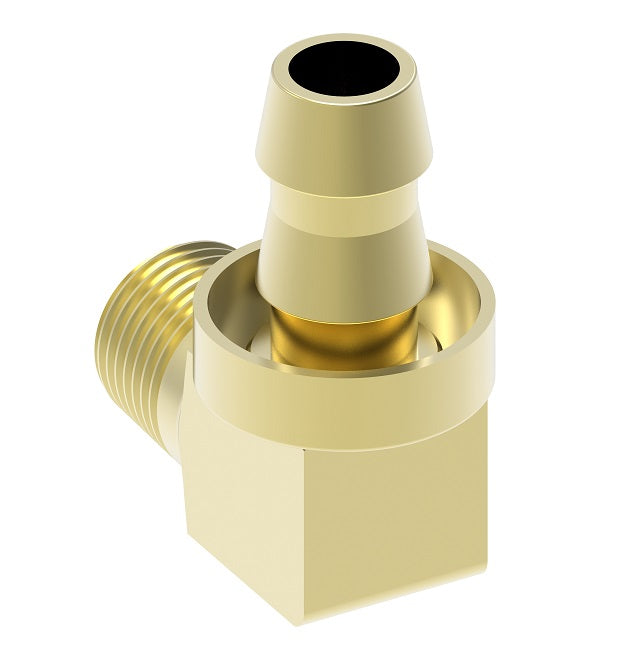

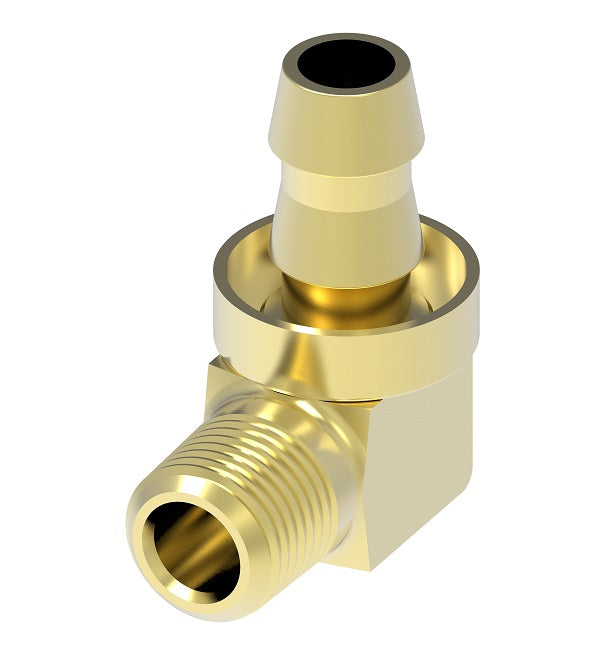

10006B-C04 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Push-On Fitting | 90° Elbow | 100 'B' Series Barb-Tite | -04 Male NPTF x -06 Reusable Hose End | Brass
10006B-C04 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Push-On Fitting | 90° Elbow | 100 'B' Series Barb-Tite | -04 Male NPTF x -06 Reusable Hose End | Brass
10006B-C04 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Push-On Fitting | 90° Elbow | 100 'B' Series Barb-Tite | -04 Male NPTF x -06 Reusable Hose End | Brass

10006B-C04 Weatherhead by Danfoss | Male Pipe Rigid Field Attachable Push-On Fitting | 90° Elbow | 100 'B' Series Barb-Tite | -04 Male NPTF x -06 Reusable Hose End | Brass

Sale price$14.41
Buy more, save moreDiscounts applied in cart/checkout.
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • CAUTION: Sealing integrity may be damaged by the use of clamps.
  • Label Set: FS-500
Material:
  • CA360 Brass
Compatible Hose:
  • H100, H101, H201, H332
Assembly instructions:
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
  • 1. Lubricate insert.
  • 2. Hold hose at angle as shown and push on and up over first barb.
  • 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.)
  • Assembly Lubricant:
Disassembly instructions:
  • 1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2. Bend hose and remove with quick pull.
Brass
Part Number 		Hose
I.D.		 Pipe
Size		 Thread Size A B Hose Cut-off
Factor		 Hole
Diameter		 Square
E
10005B-C02 5/16 " 1/8" 1/8-27 1.11" 0.94" 0.31" 0.228" 1/2"
10005B-C04 5/16" 1/4" 1/4-18 1.18" 0.94" 0.38" 0.228" 9/16"
10006B-C02 3/8" 1/8" 1/8-27 1.17" 0.94" 0.38" 0.297" 1/2"
10006B-C04 3/8" 1/4" 1/4-18 1.24" 0.94" 0.38" 0.297" 9/16"

Note: Drawings may differ from actual parts.

Additional Product Data:

Brand:
  • Barb-Tite
Series:
  • 100 'B' Series
Ends Configuration:
  • 1/4in Male NPTF
  • 3/8in Reusable Hose End

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
