Sale price$15.21

Weatherhead by Danfoss

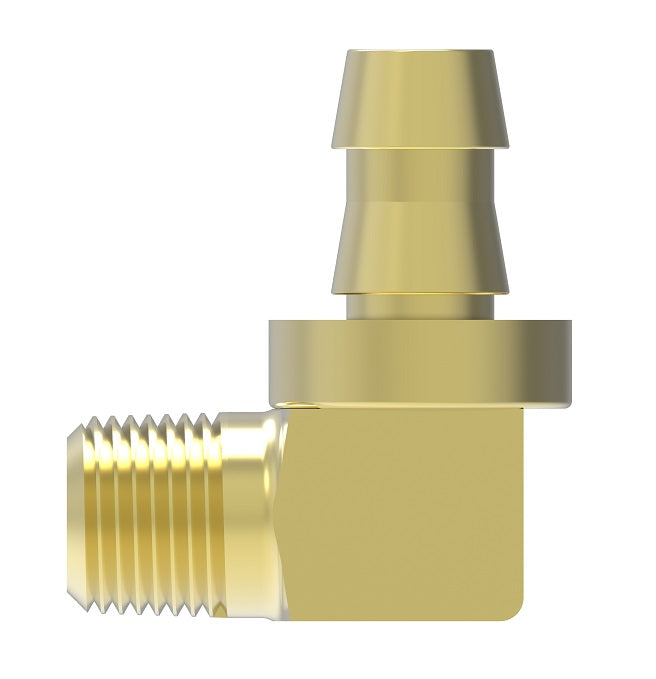

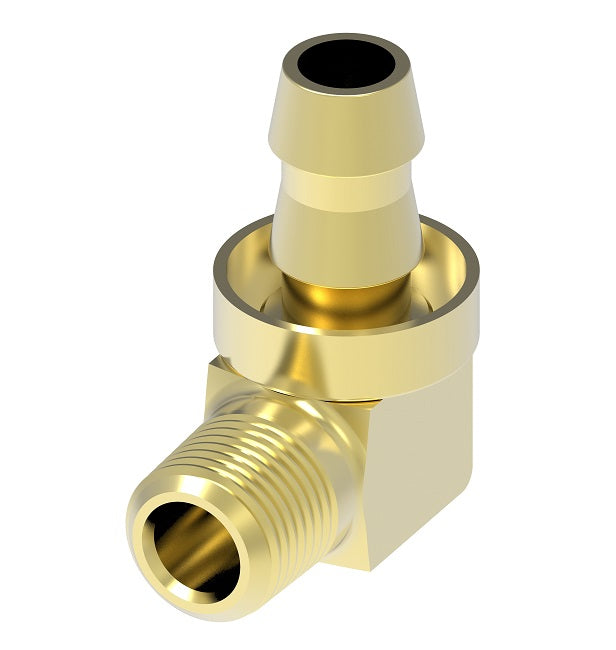

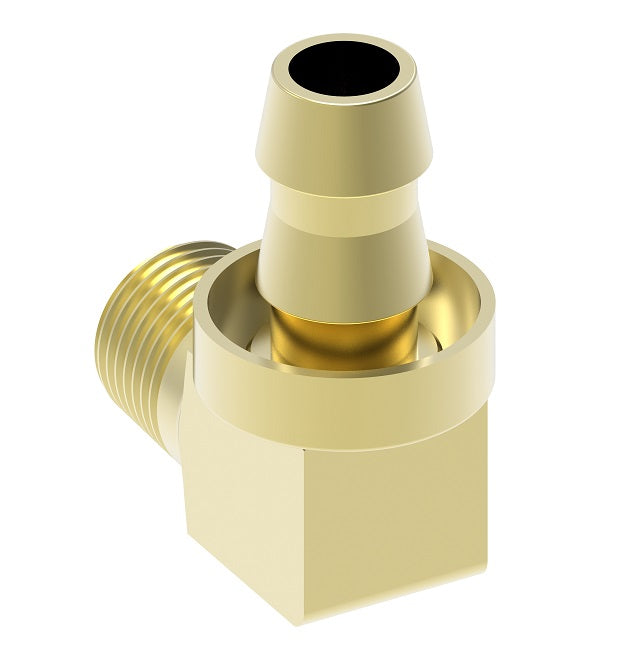

Push-On Field Attachable Fitting - 100 'B' Series Barb-Tite - Male Pipe Rigid - 90° Elbow

Ideal Fitting for low pressure shop or service air lines. Often used for low pressure lube and oil lines.

Easy to assemble - just push the Fitting into the hose. No clamps needed.
Buy More, Save More!
Quantity Price Each
10–39 $14.30
40–79 $12.93
80+ $11.41
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Elbow

Ends Configuration:
  • 1/8in Male NPTF
  • 5/16in Reusable Hose End
Material(s):
  • Brass
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • CAUTION: Sealing integrity may be damaged by the use of clamps.
  • Label Set: FS-500
Material:
  • CA360 Brass
Compatible Hose:
  • H100, H101, H201, H332
Assembly instructions:
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
  • 1. Lubricate insert.
  • 2. Hold hose at angle as shown and push on and up over first barb.
  • 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.)
  • Assembly Lubricant:
Disassembly instructions:
  • 1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2. Bend hose and remove with quick pull.
Brass
Part Number 		Hose
I.D.		 Pipe
Size		 Thread Size A B Hose Cut-off
Factor		 Hole
Diameter		 Square
E
10005B-C02 5/16 " 1/8" 1/8-27 1.11" 0.94" 0.31" 0.228" 1/2"
10005B-C04 5/16" 1/4" 1/4-18 1.18" 0.94" 0.38" 0.228" 9/16"
10006B-C02 3/8" 1/8" 1/8-27 1.17" 0.94" 0.38" 0.297" 1/2"
10006B-C04 3/8" 1/4" 1/4-18 1.24" 0.94" 0.38" 0.297" 9/16"

Note: Drawings may differ from actual parts.
