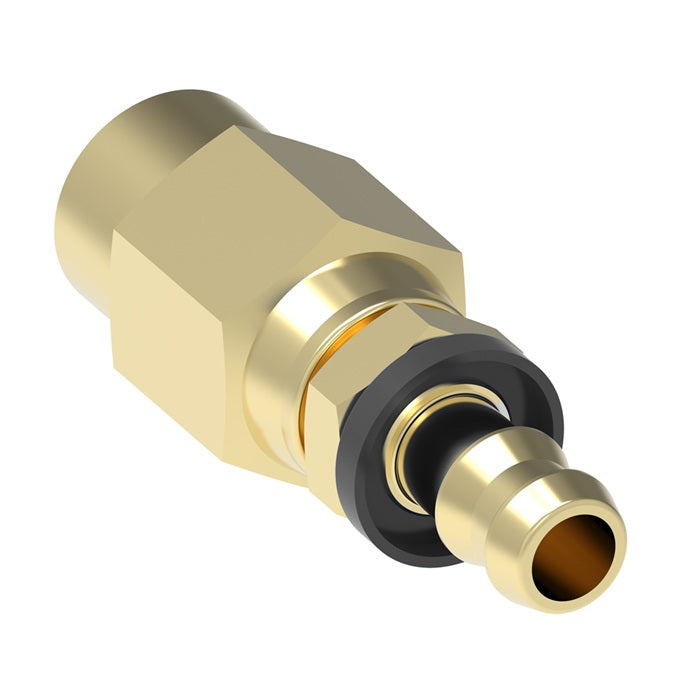

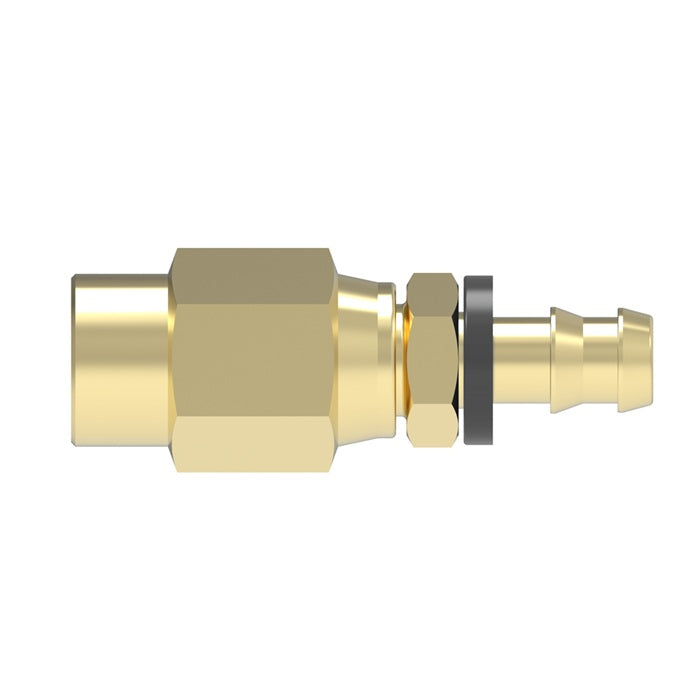

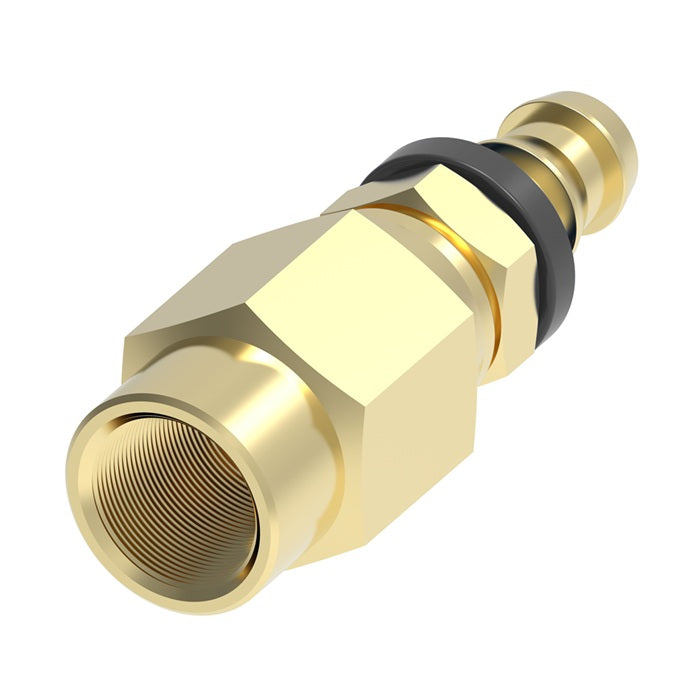

10004B-254 Weatherhead by Danfoss | Female Pipe Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -04 Female Pipe Swivel x -04 Push-On Hose Barb | Brass
10004B-254 Weatherhead by Danfoss | Female Pipe Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -04 Female Pipe Swivel x -04 Push-On Hose Barb | Brass
10004B-254 Weatherhead by Danfoss | Female Pipe Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -04 Female Pipe Swivel x -04 Push-On Hose Barb | Brass

10004B-254 Weatherhead by Danfoss | Female Pipe Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -04 Female Pipe Swivel x -04 Push-On Hose Barb | Brass

Sale price$32.94

Weatherhead by Danfoss
Push-On Field Attachable Fitting - 100 'B' Series Barb-Tite - Female Pipe Swivel - Straight

Ideal Fitting for low pressure shop or service air lines. Often used for low pressure lube and oil lines.

Easy to assemble - just push the Fitting into the hose. No clamps needed.
Buy More, Save More!
Quantity Price Each
10–39 $30.96
40–79 $28.00
80+ $24.71
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Brass
Special Properties:
  • Swivel
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • CAUTION: Sealing integrity may be damaged by the use of clamps.
Material:
  • CA360 Brass
Compatible Hose:
  • H100, H101, H201, H332
Assembly instructions:
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
  • 1. Lubricate insert.
  • 2. Hold hose at angle as shown and push on and up over first barb.
  • 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.)
  • Assembly Lubricant:
Disassembly instructions:
  • 1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2. Bend hose and remove with quick pull.
Brass
Part Number 		Hose
I.D.		 Tube
Size		 Thread
Size		 A Hose Cut-off
Factor		 Hole
Diameter		 Hex
E		 Hex
F
10004B-254 1/4" 1/4" 1/4-18 2.42" 1.81" 0.172" 3/4" 5/8"
10006B-256 3/8" 3/8" 3/8-18 2.77" 2.00" 0.297" 7/8" 11/16"
10008B-258 1/2" 1/2" 1/2-14 3.29" 2.38" 0.391" 1-1/8" 7/8"

Note: Drawings may differ from actual parts.
