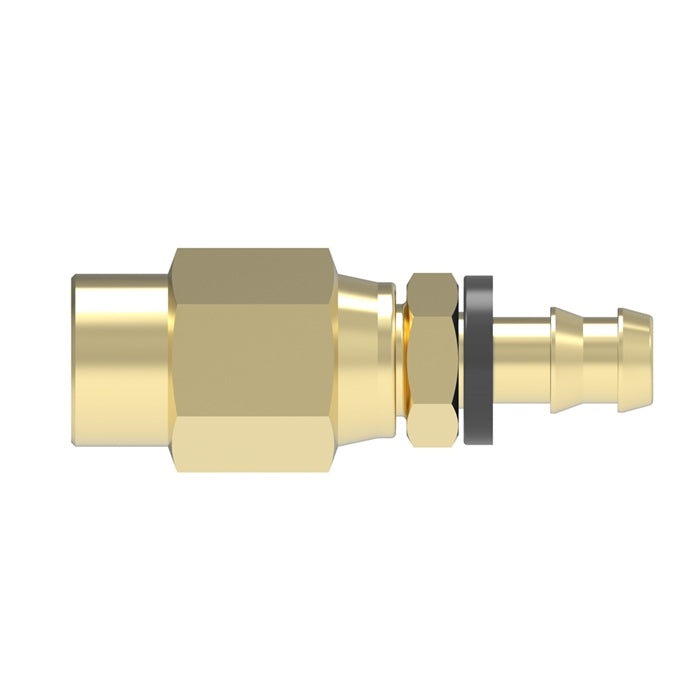

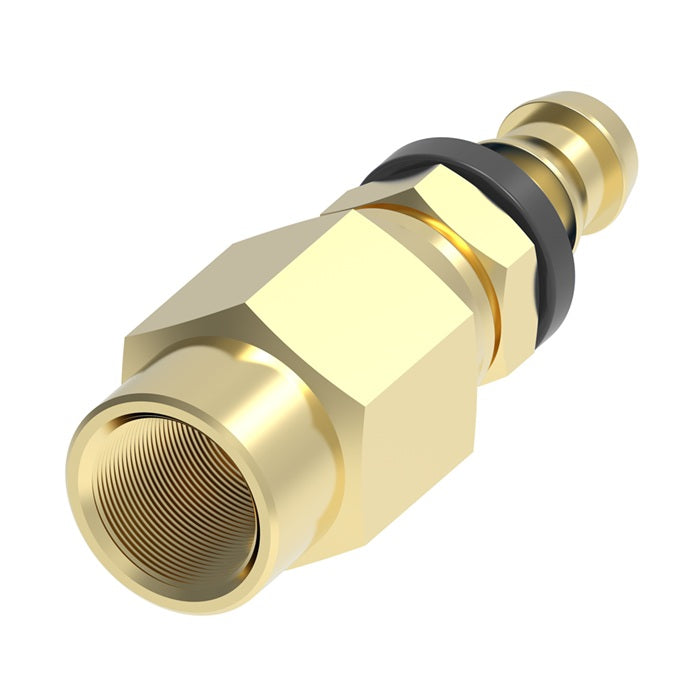

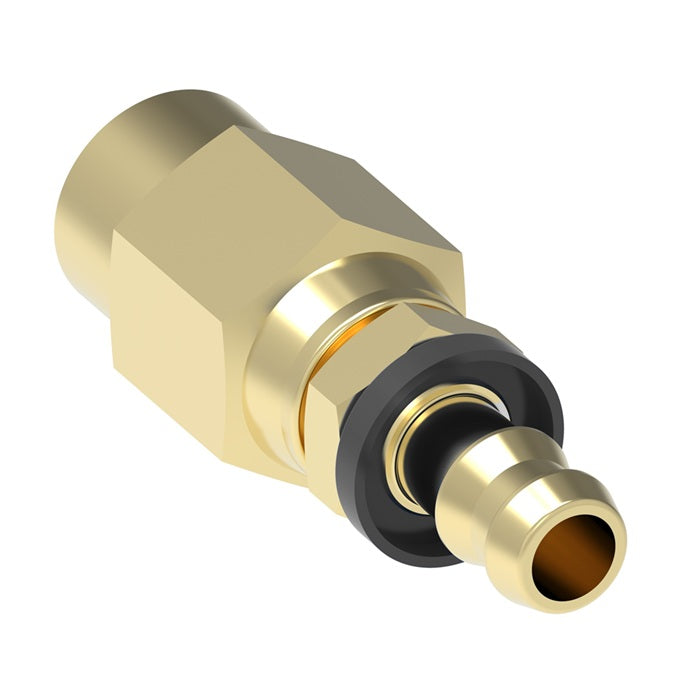

10006B-256 Weatherhead by Danfoss | Female Pipe Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -06 Female Pipe Swivel x -06 Push-On Hose Barb | Brass
10006B-256 Weatherhead by Danfoss | Female Pipe Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -06 Female Pipe Swivel x -06 Push-On Hose Barb | Brass
10006B-256 Weatherhead by Danfoss | Female Pipe Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -06 Female Pipe Swivel x -06 Push-On Hose Barb | Brass

10006B-256 Weatherhead by Danfoss | Female Pipe Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -06 Female Pipe Swivel x -06 Push-On Hose Barb | Brass

Sale price$33.00
Buy more, save moreDiscounts applied in cart/checkout.
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • CAUTION: Sealing integrity may be damaged by the use of clamps.
Material:
  • CA360 Brass
Compatible Hose:
  • H100, H101, H201, H332
Assembly instructions:
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
  • 1. Lubricate insert.
  • 2. Hold hose at angle as shown and push on and up over first barb.
  • 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.)
  • Assembly Lubricant:
Disassembly instructions:
  • 1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2. Bend hose and remove with quick pull.
Brass
Part Number 		Hose
I.D.		 Tube
Size		 Thread
Size		 A Hose Cut-off
Factor		 Hole
Diameter		 Hex
E		 Hex
F
10004B-254 1/4" 1/4" 1/4-18 2.42" 1.81" 0.172" 3/4" 5/8"
10006B-256 3/8" 3/8" 3/8-18 2.77" 2.00" 0.297" 7/8" 11/16"
10008B-258 1/2" 1/2" 1/2-14 3.29" 2.38" 0.391" 1-1/8" 7/8"

Note: Drawings may differ from actual parts.

Additional Product Data:

Shape:

Straight

Material(s):
  • Brass
Special Properties:
  • Swivel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
