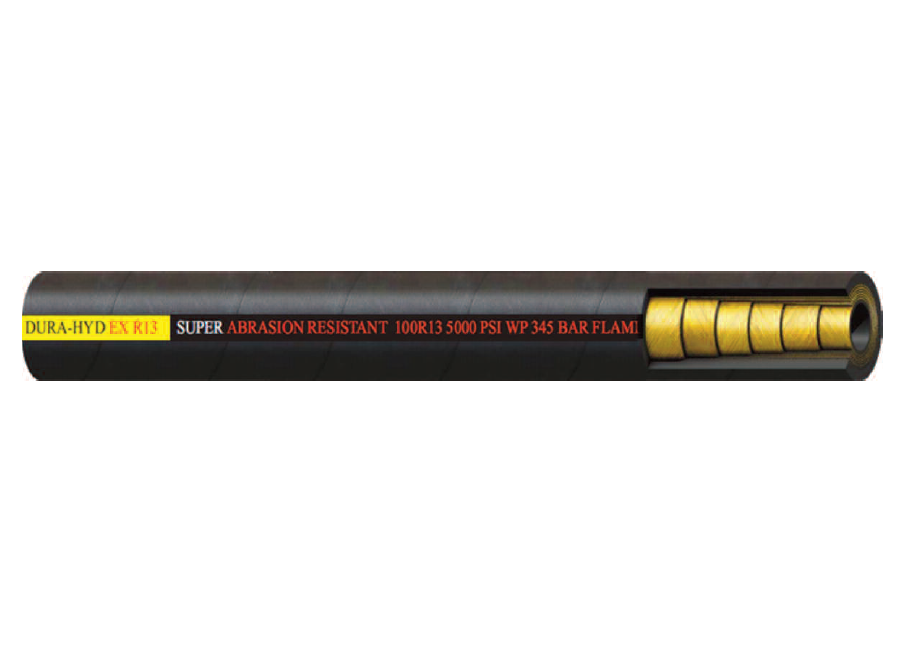

1-1/4" DHEXR13 by Couplamatic | DURA HYD EX Super Abrasion Resistant | Multispiral Extra High Pressure Import Hydraulic Hose | 4 or 6 High Tensile Steel Spirals | SAE 100R13 | 1-1/4" ID | 50ft Bulk Length
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R13 — Multispiral, Super Abrasion Resistant
Dura-Hyd EX Multispiral Extra High Pressure Hydraulic Hose
Four- and six-spiral SAE 100R13 hose with a super abrasion resistant bi-layer cover, for the highest pressure circuits on heavy equipment.
1
What is this hose used for?
- Very High Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R13
Cover
Flame Resistant Bi-Layer, SUPER Abrasion Resistant, MSHA
Reinforcement
4 or 6 High Tensile Steel Spirals
Temperature
-40°F to +250°F (-40°C to +121°C)
3
What are the main product features?
- Four or six high tensile steel spirals — spiral count varies by size for full 100R13 ratings.
- Bi-layer SUPER abrasion resistant cover — built for severe external wear.
- Flame resistant, MSHA — approved for mining service.
- Very high pressure hydraulics — industrial and agricultural equipment.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 3/4" DHEXR13 | 3/4" | 1.260" | 5,000 lbs. | 20,000 lbs. | 9.5" | 121 lbs. | Bulk |
| 1" DHEXR13 | 1" | 1.515" | 5,000 lbs. | 20,000 lbs. | 12" | 153 lbs. | Bulk |
| 1-1/4" DHEXR13 | 1-1/4" | 1.940" | 5,000 lbs. | 20,000 lbs. | 16.5" | 288 lbs. | Bulk |
| 1-1/2" DHEXR13 | 1-1/2" | 2.255" | 5,000 lbs. | 20,000 lbs. | 20" | 361 lbs. | Bulk |
| 2" DHEXR13 | 2" | 2.820" | 5,000 lbs. | 20,000 lbs. | 25" | 471 lbs. | Bulk |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
5000
Specifications and Approvals:
Compatible Series:
