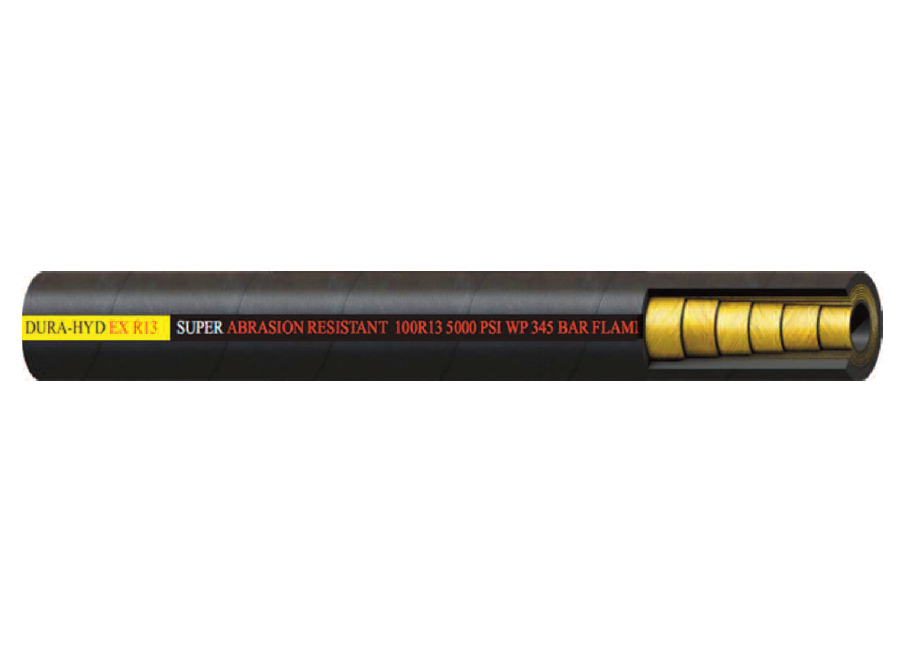

1" DHEXR13 by Couplamatic | DURA HYD EX Super Abrasion Resistant | Multispiral Extra High Pressure Import Hydraulic Hose | 4 or 6 High Tensile Steel Spirals | SAE 100R13 | 1" ID | 50ft Bulk Length

1" DHEXR13 by Couplamatic | DURA HYD EX Super Abrasion Resistant | Multispiral Extra High Pressure Import Hydraulic Hose | 4 or 6 High Tensile Steel Spirals | SAE 100R13 | 1" ID | 50ft Bulk Length

Sale price$935.05

Couplamatic Systems Inc.
4 or 6 High Tensile Steel Spirals - DHEXR13 DURA HYD EX Super Abrasion Resistant Multispiral Extra High Pressure Import Hydraulic Hose - (SAE 100R13)
Buy More, Save More!
Quantity Price Each
5–14 $878.95
15–29 $794.79
30+ $701.29
Discounts applied in cart/checkout.

Product Data:

Series:
  • DHEXR13 Series
Color(s):
  • Black
Dash Size:
  • -16
Applications: Very High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R13
Cover: Flame Resistant Bi-Layer, SUPER Abrasion Resistant, MSHA Reinforcement: 4 or 6 High Tensile Steel Spirals
Temperature: -40F to +250F (-40C to +121C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Coil Footage
3/4" DHEXR13 3/4" 1.260" 5,000 lbs. 20,000 lbs. 9.5" 121 lbs. Bulk
1" DHEXR13 1" 1.515" 5,000 lbs. 20,000 lbs. 12" 153 lbs. Bulk
1-1/4" DHEXR13 1-1/4" 1.940" 5,000 lbs. 20,000 lbs. 16.5" 288 lbs. Bulk
1-1/2" DHEXR13 1-1/2" 2.255" 5,000 lbs. 20,000 lbs. 20" 361 lbs. Bulk
2" DHEXR13 2" 2.820" 5,000 lbs. 20,000 lbs. 25" 471 lbs. Bulk
