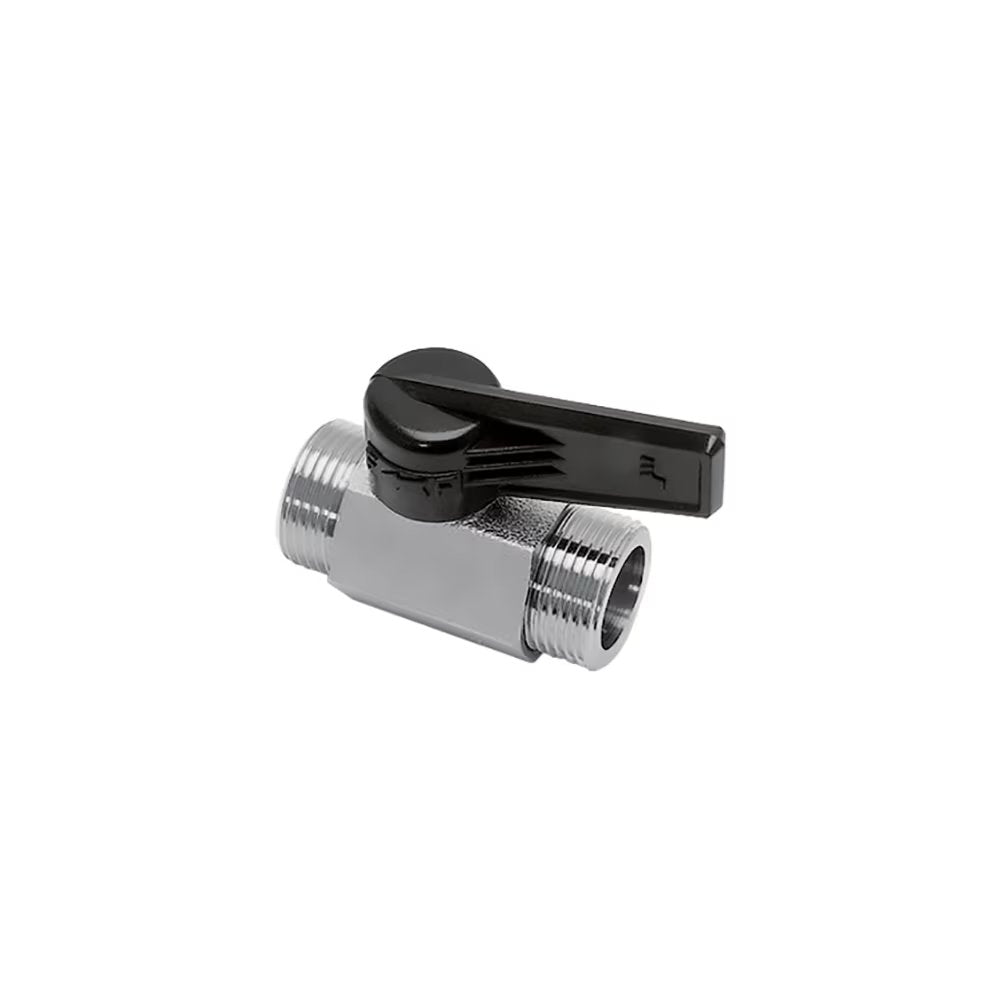

0490 04 13 by Parker | Legris In-Line Ball Valve | 1/4" Male BSPP Thread | 17 mm Hex | 52 mm Length | Straight | Nickel-Plated Brass | Pack of 10

0490 04 13 by Parker | Legris In-Line Ball Valve | 1/4" Male BSPP Thread | 17 mm Hex | 52 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$287.33

by Parker Hannifin
Universal Light Series:0490 2/2 In-Line Ball Valve, Male BSPP Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $270.09
15–29 $244.23
30+ $215.50
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0490 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male BSPP
  • 1/4in Male BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Industrial fluids
  • Working Pressure: Vacuum up to 12 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Compactness
  • Corrosion resistance due to chemical nickel plating
  • Automatic compensation of seal wear
  • Repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Shot-blasted brass or shot-blasted nickel-plated brass
  • Stem: Brass
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Wear-compensation seal: NBR
  • Lever: Polymer or Zamak
Part Number Diameter Nominal (DN) C E F H L L1 M Kg
0490 04 13 4 mm 1/4" 7 mm 17 mm 34 mm 39 mm 17 mm 35 mm .070 Kg
0490 10 21 10 mm 1/2" 10 mm 24 mm 44 mm 53 mm 24 mm 50 mm .160 Kg

Technical polymer handle
